MSD-431 (discontinued)

4.3" Modero S® Series G4 Wall Mount Touch Panel

MSD-431
Larger Images

This product is discontinued with a projected last order date of March 31, 2019.
The suggested alternative is MD-702.

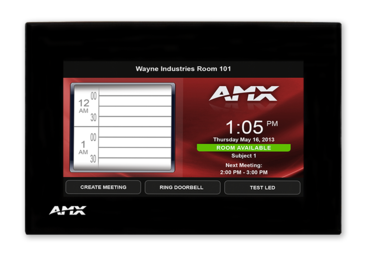

The MSD-431 / 4.3" Modero S Series Wall Mount Touch Panel is a versatile, yet affordable control surface that is equally suited for scheduling or room control. With a generous selection of mounting options, the MSD-431 can be placed on any flat surface (including glass) inside or outside a conference room or classroom, and the built-in room availability bar shows green or red depending on if the room is currently booked. Key features include a brilliant 24-color depth, PoE connectivity, video streaming, and VoIP support – all at an economical price point.

Common Applications

  • The MSD-431 allows even the most cost sensitive meeting spaces to benefit from a dedicated scheduling panel, allowing users to view the room schedule at a glance and even reserve the room right from the panel.
  • The MSD-431 is also ideal as a second touch panel that is mounted on the wall or in a podium or lectern in a large conference room or classroom.

Downloads

  Version Language Size Uploaded
file type icon Data Sheet
updated: Mar 2024
    355 KB Mar 2024
file type icon Comparison Chart
updated: Mar 2024
    173 KB Mar 2024
Manuals
file type icon Installation Hardware Reference Manual - Modero S Series Touch Panels
updated: Oct 2020
    2.04 MB Oct 2020
CAD Drawings
file type icon Pictorial Drawing - MSD-431, 4.3" Modero S Series Landscape Wall Mount Touch Panel (DXF)
updated: Oct 2020
    1.14 MB Oct 2020
file type icon Pictorial Drawing - MSD-431, 4.3" Modero S Series Landscape Wall Mount Touch Panel (PDF)
updated: Oct 2020
    152 KB Oct 2020
Bim Objects
file type icon MSD-431 - BIM Object
updated: Aug 2019
    Aug 2019
Software
platform icon G4 Support Files
version 3.3.62, updated: Jul 2018
3.3.62     35.7 MB Jul 2018
Firmware
platform icon Modero S Series Touch Panels Firmware
version 2.108.40, updated: Mar 2018
2.108.40     47.7 MB Mar 2018
Programming Guides
file type icon Configuration and Programming Guide - Modero S/X Series G4 Touch Panels HydraPort Touch Connection Ports
updated: Oct 2020
    2.16 MB Oct 2020
Certifications
file type icon Modero S Series 4.3"/7"/10.1" Touch Panels UL Certificate of Compliance
updated: Apr 2018
    416 KB Apr 2018
file type icon Modero S Series 4.3" Touch Panel CE Declaration of Conformity
updated: Apr 2018
    255 KB Apr 2018
file type icon Modero S Series 4.3"/7"/10.1" Touch Panels IECEE CB Test Certificate
updated: Apr 2018
    191 KB Apr 2018
Whitepapers
file type icon AMX AV/IT Administrator's Guide
updated: Oct 2020
    2.61 MB Oct 2020
Quick Start Guides
file type icon Quick Start Guide - MSD-431 Modero S Series Wall Mount Touch Panel
updated: Oct 2020
    301 KB Oct 2020
Touch Panel Files
file type icon MSD-431 RMS Scheduling Touch Panel File (480x272)
updated: Oct 2020
    2.19 MB Oct 2020

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Features

  • Powerful Graphics – Powered by the G4 graphics engine, the Modero S Series features streaming video and brilliant 24-bit color depth
  • Elegant Room Availability Bar with 180° Visibility – Easily glance down the hall to see if meeting spaces are occupied
  • Mount to Any Smooth Surface Including Glass – Use the optional Multi Mount Kit and mount the Modero S wall touch panel to any smooth surface
  • Elegant & Responsive User Interface – Exclusive SmoothTouch™ display supports single touch gesturing and delivers responsive performance
  • Architectural Design Consistency – Install both Modero S and Modero X touch panels throughout a facility for consistent style on any budget

Specifications

Display Size (WH) 5" x 3.4" (128 mm x 87 mm), 6" (152 mm) diagonal
Viewable Area (WH) 3.7" x 2.1" (95 mm x 54 mm), 4.3" (109 mm) diagonal
Resolution 480x272
Viewing Angle 40°/80°/65°/65° (Up/Down/Left/Right)
Aspect Ratio 16:9
Touch Overlay Resistive
Graphics Engine AMX G4
Front Panel Components Sleep Button, Programmable Red/Green LEDs. See Data Sheet for details.
Power Consumption Full-On: 5 W (max)
Temperature Range Operating: 32° F to 104° F (0° C to 40° C)
FG Numbers FG2265-03
