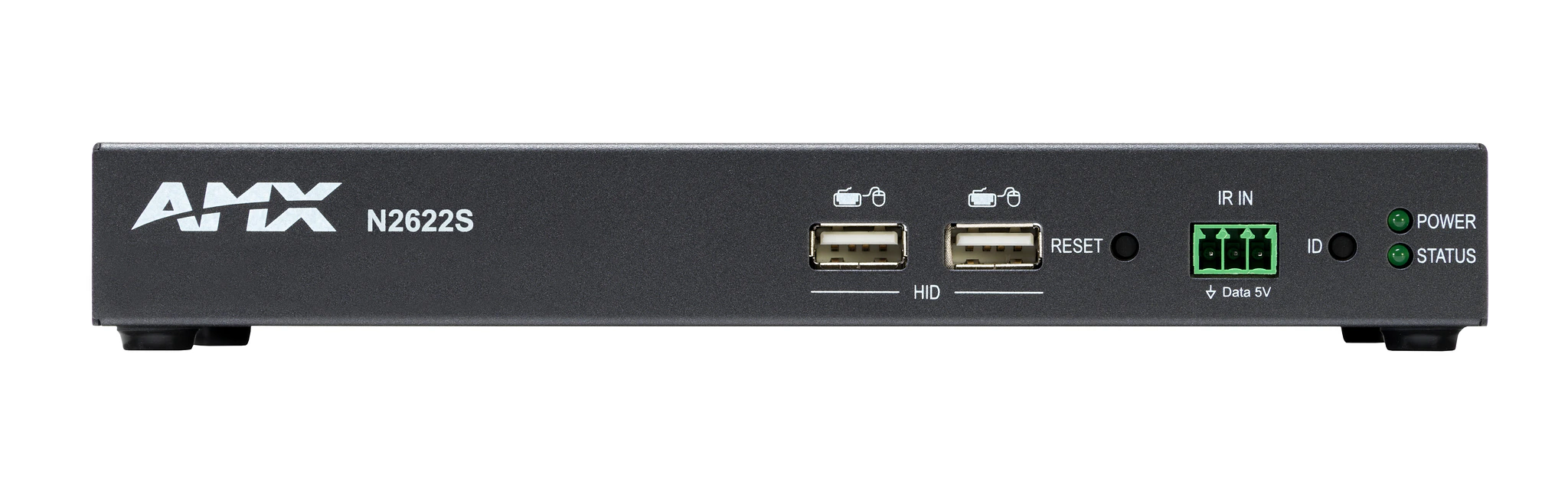

NMX-DEC-N2622S Decoder

MWC 4K60 4:4:4 & H.264 1080p Multi-Codec Decoder

较大的图像

The AMX SVSI NMX-DEC-N2622S is a cost-effective, powerfully robust multi-codec decoder in a stand-alone box form factor. It can decode the high-quality, low-latency 4K60 4:4:4 MWC codec output by N2600 encoders that is ideal for streaming both live video and detailed content in classrooms, meeting spaces, courtrooms, bars, and other applications.

High-compatibility, low-bandwidth 1080p H.264 decoding is also included and perfect for distributing video over congested networks.

Also included is transport of full-bandwidth USB 2.0 signals, video preview images viewable from the built-in web interface or from a touch panel, and enhanced support for high-security networks.

Compatible encoders include the NMX-ENC-N2612S Encoder, NMX-ENC-N2612S-C Encoder Card and NMX-ENC-N2615-WP Encoder Wallplate. Additionally, the NMX-DEC-N2622S can decode an H.264 stream generated by N3000 series encoders and the NMX-WP-N3510 Windowing Processor.

更多详情

The N2600 Series is ideal for almost any streaming application but is especially applicable for colleges and universities, corporate, casinos, hospitality, government and many more. High-quality, low-latency 4K60 4:4:4 MWC streaming is perfect for transmitting both live video and detailed content within classrooms, meeting spaces, courtrooms and bars. N2600 models with the ‘S’ designation add high-compatibility, low-bandwidth 1080p H.264 streaming for distributing video in installations with congested networks.

下载

  Version Language Size Uploaded
Manuals
file type icon Instruction Manual - N2600S
en updated: 10月 2023
  en  6.8 MB 10月 2023
Brochures
file type icon Pro Install Overview Brochure
en updated: 10月 2023
  en  23.1 MB 10月 2023
CAD Drawings
file type icon Pictorial Drawing (DXF) – NMX-ENC-N2622S
updated: 2月 2023
    8.9 MB 2月 2023
file type icon Pictorial Drawing (PDF) – NMX-ENC-N2622S
updated: 2月 2023
    458.1 KB 2月 2023
file type icon Pictorial Drawing (DWG) – NMX-ENC-N2622S
updated: 2月 2023
    1.8 MB 2月 2023
Software
platform icon N-Able Control Software
updated: 8月 2023
    8月 2023
Firmware
platform icon SVSI N26xxS Encoder and Decoder Firmware Updater
version 1.0.9, updated: 8月 2023
1.0.9     89.9 MB 8月 2023
Programming Guides
file type icon Direct Control API – N26xxS
en updated: 11月 2023
  en  367.7 KB 11月 2023
Product Guides
file type icon Product Guide - N-Series Minimum Network Requirement
version B, updated: 10月 2023
  165.6 KB 10月 2023
file type icon Product Guide - N-Series Stream Compatibility Guide
updated: 5月 2023
    331.3 KB 5月 2023
Certifications
file type icon UKCA Declaration of Conformity - N26x2S
en updated: 9月 2023
  en  251.0 KB 9月 2023
file type icon CE Declaration of Conformity - N26x2S
en updated: 9月 2023
  en  1013.1 KB 9月 2023
Quick Start Guides
file type icon Quick Start Guide – NMX-ENC-N2622S
en updated: 11月 2023
  en  782.4 KB 11月 2023
Data Sheets
file type icon Data Sheet – NMX-DEC-N2622S
en version A, updated: 8月 2023
en  347.5 KB 8月 2023
Device Modules
file type icon Duet Control Module – N2622S
updated: 11月 2023
    11月 2023

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

特点

  • High-Quality, Low-Latency 4K60 MWC decoding
  • High-Compatibility, Low-Bandwidth 1080p H.26x decoding
  • Video Preview viewable from the built-in web interface or from a touch panel
  • Dante Audio (Available via firmware update with projected availability late-2023)
  • USB 2.0 Transport
  • High security network support and features, including multicast, VLAN tagging and QoS
  • PoE+ powered with low-power mode for energy savings
  • Open Direct-Control API

性能

视频输入 Network video over Ethernet via RJ45 port
视频输出 HDMI
视频分辨率支持 Supports most common resolutions up to 4096 x 2160 - Reference Data Sheet for Specific Resolution Support
输入端口 Network PCM audio over Ethernet via RJ45, HDMI Loop-Out
输出端口 Embedded audio on HDMI or Analog Stereo (Balanced)
Ports +12V 2A DC power input, USB Type A USB 2.0 Device Port, (P0) Gigabit Ethernet port with PoE+ support, (P1) Gigabit Ethernet port, (IR) 2-pin 3.5mm screw terminal, (RS232) 3-pin 3.5mm screw terminal, (Audio) 5-pin 3.5mm screw terminal, HDMI video output, (2) USB Type A HID Device port (front panel), (IR IN) 3-pin 3.5mm screw terminal (front panel)
环境 Temperature - 32° to 104°F (0° to 40°C) Humidity - 10% to 90% RH (non-condensing) Heat Dissipation - Up to ~85 BTU/hr
尺寸(高 x 宽 x 厚) 1 1/6" x 7 7/8" x 5" (26.6mm x 200mm x 127mm)
产品重量 2.16 lbs. (Approx. 0.97kg)
FG Numbers AMX-N26D001
