NMX-DEC-N2622S Decoder

MWC 4K60 4:4:4 & H.264 1080p Multi-Codec Decoder

Larger Images

The AMX SVSI NMX-DEC-N2622S is a cost-effective, powerfully robust multi-codec decoder in a stand-alone box form factor. It can decode the high-quality, low-latency 4K60 4:4:4 MWC codec output by N2600 encoders that is ideal for streaming both live video and detailed content in classrooms, meeting spaces, courtrooms, bars, and other applications.

High-compatibility, low-bandwidth 1080p H.264 decoding is also included and perfect for distributing video over congested networks.

Also included is transport of full-bandwidth USB 2.0 signals, video preview images viewable from the built-in web interface or from a touch panel, and enhanced support for high-security networks.

Compatible encoders include the NMX-ENC-N2612S Encoder, NMX-ENC-N2612S-C Encoder Card and NMX-ENC-N2615-WP Encoder Wallplate. Additionally, the NMX-DEC-N2622S can decode an H.264 stream generated by N3000 series encoders and the NMX-WP-N3510 Windowing Processor.

Common Applications

The N2600 Series is ideal for almost any streaming application but is especially applicable for colleges and universities, corporate, casinos, hospitality, government and many more. High-quality, low-latency 4K60 4:4:4 MWC streaming is perfect for transmitting both live video and detailed content within classrooms, meeting spaces, courtrooms and bars. N2600 models with the ‘S’ designation add high-compatibility, low-bandwidth 1080p H.264 streaming for distributing video in installations with congested networks.

Downloads

  Version Language Size Uploaded
Manuals
file type icon Instruction Manual - N2600S
en updated: Oct 2023
  en  6.8 MB Oct 2023
Brochures
file type icon Pro Install Overview Brochure
en updated: Oct 2023
  en  23.1 MB Oct 2023
CAD Drawings
file type icon Pictorial Drawing (DXF) – NMX-ENC-N2622S
updated: Feb 2023
    8.87 MB Feb 2023
file type icon Pictorial Drawing (PDF) – NMX-ENC-N2622S
updated: Feb 2023
    458 KB Feb 2023
file type icon Pictorial Drawing (DWG) – NMX-ENC-N2622S
updated: Feb 2023
    1.81 MB Feb 2023
Software
platform icon N-Able Control Software
updated: Aug 2023
    Aug 2023
Firmware
platform icon SVSI N26xxS Encoder and Decoder Firmware Updater
version 1.0.9, updated: Aug 2023
1.0.9     89.9 MB Aug 2023
Programming Guides
file type icon Direct Control API – N26xxS
en updated: Nov 2023
  en  368 KB Nov 2023
Product Guides
file type icon Product Guide - N-Series Minimum Network Requirement
version B, updated: Oct 2023
  166 KB Oct 2023
file type icon Product Guide - N-Series Stream Compatibility Guide
updated: May 2023
    331 KB May 2023
Certifications
file type icon UKCA Declaration of Conformity - N26x2S
en updated: Sep 2023
  en  251 KB Sep 2023
file type icon CE Declaration of Conformity - N26x2S
en updated: Sep 2023
  en  1010 KB Sep 2023
Quick Start Guides
file type icon Quick Start Guide – NMX-ENC-N2622S
en updated: Nov 2023
  en  782 KB Nov 2023
Data Sheets
file type icon Data Sheet – NMX-DEC-N2622S
en version A, updated: Aug 2023
en  347 KB Aug 2023
Device Modules
file type icon Duet Control Module – N2622S
updated: Nov 2023
    Nov 2023

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Features

  • High-Quality, Low-Latency 4K60 MWC decoding
  • High-Compatibility, Low-Bandwidth 1080p H.26x decoding
  • Video Preview viewable from the built-in web interface or from a touch panel
  • Dante Audio (Available via firmware update with projected availability late-2023)
  • USB 2.0 Transport
  • High security network support and features, including multicast, VLAN tagging and QoS
  • PoE+ powered with low-power mode for energy savings
  • Open Direct-Control API

Specifications

Video Inputs Network video over Ethernet via RJ45 port
Video Outputs HDMI
Video Resolution Support Supports most common resolutions up to 4096 x 2160 - Reference Data Sheet for Specific Resolution Support
Audio Inputs Network PCM audio over Ethernet via RJ45, HDMI Loop-Out
Audio Outputs Embedded audio on HDMI or Analog Stereo (Balanced)

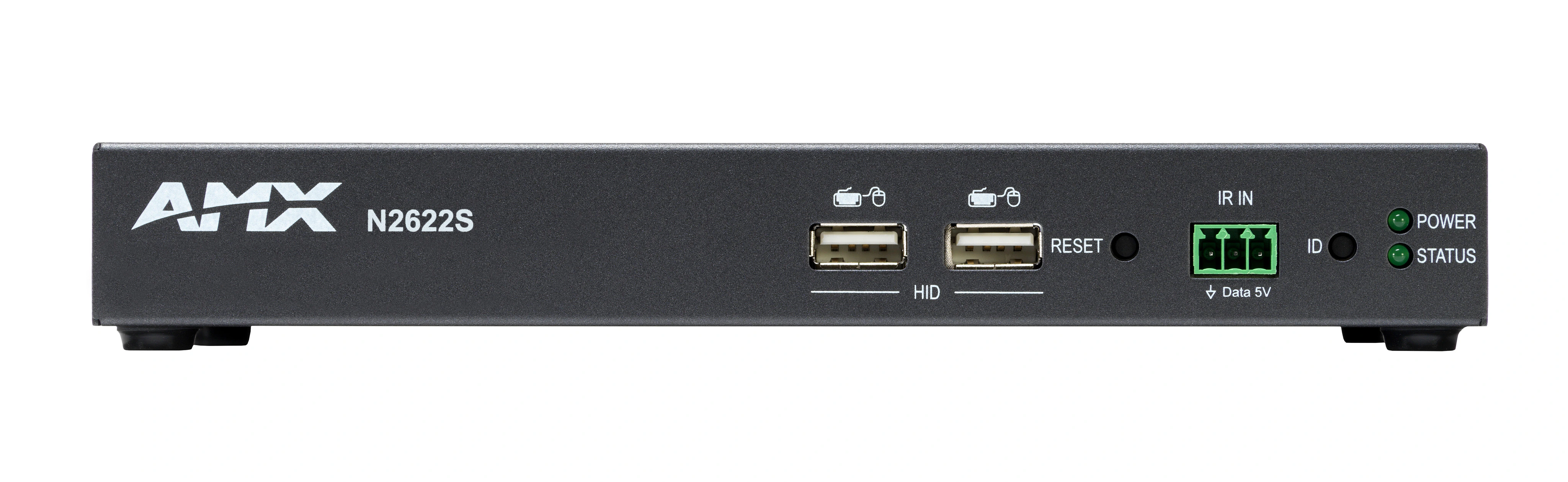

Ports +12V 2A DC power input, USB Type A USB 2.0 Device Port, (P0) Gigabit Ethernet port with PoE+ support, (P1) Gigabit Ethernet port, (IR) 2-pin 3.5mm screw terminal, (RS232) 3-pin 3.5mm screw terminal, (Audio) 5-pin 3.5mm screw terminal, HDMI video output, (2) USB Type A HID Device port (front panel), (IR IN) 3-pin 3.5mm screw terminal (front panel)
Environmental Temperature - 32° to 104°F (0° to 40°C) Humidity - 10% to 90% RH (non-condensing) Heat Dissipation - Up to ~85 BTU/hr
Dimensions (H x W x D) 1 1/6" x 7 7/8" x 5" (26.6mm x 200mm x 127mm)
Product Weight 2.16 lbs. (Approx. 0.97kg)
FG Numbers AMX-N26D001
