NMX-DEC-N2625-WP Decoder Wallplate

4K60 MWC Decoder Wallplate (US & UK/EU)

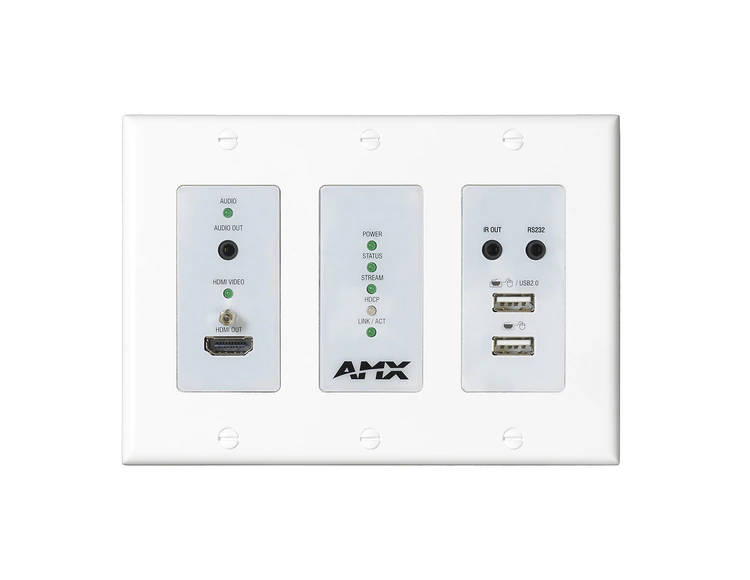

NMX-DEC-N2625-WP Decoder Wallplate
较大的图像

The AMX SVSI NMX-DEC-N2625-WP is a cost-effective, powerfully robust decoder wallplate. It features a high-quality, low-latency 4K60 4:4:4 MWC codec that is ideal for decoding both live video and detailed content in classrooms, meeting spaces, courtrooms, bars, and other applications.

Additional features include transport of full-bandwidth USB 2.0 signals, video preview images viewable from the built-in web interface or from a touch panel, and enhanced support for high-security networks. Decoder wallplates create an elegant and secure installation when installed behind a wall-mounted display.

These Decoder Wallplates are available in two models:

NMX-DEC-N2625-WP-NA (US Version) and NMX-DEC-N2625-WP-EK (EU/UK Version). Models include both black and white faceplate inserts and wallplate covers to ensure they blend seamlessly within modern decors.

更多详情

The N2600 Series is ideal for almost any streaming application but is especially applicable for colleges and universities, corporate, casinos, hospitality, government and many more. High-quality, low-latency 4K60 4:4:4 MWC streaming is perfect for transmitting both live video and detailed content within classrooms, meeting spaces, courtrooms and bars. N2600 Decoder wallplates create an elegant and secure installation when installed behind a wall-mounted display.

下载

  Version Language Size Uploaded
Manuals
file type icon Instruction Manual – AMX N2600 Series Wallplates
en version D, updated: 3月 2024
en  5.4 MB 3月 2024
Brochures
file type icon Pro Install Overview Brochure
en updated: 10月 2023
  en  23.1 MB 10月 2023
CAD Drawings
file type icon Pictorial Drawing (DXF) – NMX-DEC-N2625-WP
updated: 2月 2023
    855.0 KB 2月 2023
file type icon Pictorial Drawing (PDF) – NMX-DEC-N2625-WP
updated: 2月 2023
    496.1 KB 2月 2023
file type icon Pictorial Drawing (DWG) – NMX-DEC-N2625-WP
updated: 2月 2023
    1.0 MB 2月 2023
Software
file type icon N-Able Control Software
en updated: 9月 2023
  en  9月 2023
platform icon Q-SYS Plugin - AMX SVSI Decoders
version 1.0.2, updated: 3月 2024
1.0.2     502.1 KB 3月 2024
Firmware
platform icon SVSI N26x5 Encoder and Decoder Firmware Updater
version 1.2.8, updated: 3月 2024
1.2.8     3月 2024
Product Guides
file type icon N-Series Stream Compatibility
updated: 2月 2024
    431.3 KB 2月 2024
file type icon Product Guide - N-Series Minimum Network Requirement
version B, updated: 10月 2023
  165.6 KB 10月 2023
Data Sheets
file type icon Data Sheet – NMX-DEC-N2625-WP
en version C, updated: 1月 2024
en  297.9 KB 1月 2024
Programming Guides
file type icon Direct Control API - N26x5-WP
version C, updated: 12月 2023
  359.3 KB 12月 2023
Certifications
file type icon UKCA Declaration of Conformity - N26x5-WP
updated: 11月 2023
    242.8 KB 11月 2023
file type icon CE Declaration of Conformity - N26x5-WP
updated: 11月 2023
    235.2 KB 11月 2023
file type icon UL Certificate of Compliance - N26x5-WP
en updated: 4月 2023
  en  174.1 KB 4月 2023
Quick Start Guides
file type icon Quick Start Guide - NMX-DEC-N2625-WP
en updated: 11月 2023
  en  1.2 MB 11月 2023
Device Modules
file type icon Duet Control Module – N2625-WP
updated: 11月 2023
    11月 2023

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

特点

  • High-Quality, Low-Latency 4K60 MWC decoding
  • Video Preview viewable from the built-in web interface or from a touch panel
  • USB 2.0 Transport
  • High security network support and features, including multicast, VLAN tagging and QoS
  • PoE+ powered with low-power mode for energy savings
  • Open Direct-Control API

性能

视频输入 Network video over Ethernet via RJ45 port
视频输出 HDMI
视频分辨率支持 Supports most common resolutions up to 4096 x 2160 - Reference Data Sheet for Specific Resolution Support
输入端口 Network PCM audio over Ethernet via RJ45
输出端口 Embedded audio on HDMI or Analog Audio Output
Ports 3.5mm stereo audio port, HDMI Type A Socket, 3.5mm IR Out port, 3.5mm RS232 port, (2) USB Type A port, Gigabit Ethernet port with PoE support (rear),
环境 Temperature - 32° to 104°F (0° to 40°C)
Humidity - 10% to 90% RH (non-condensing)
Heat Dissipation - Up to ~44 BTU/hr
尺寸(高 x 宽 x 厚) AMX-N26E011: 4.2” x 5.2” x 2.3” (106.68mm x 132.08mm x 58.42mm)
AMX-N26E011-EK: 2.8“ x 8.3“ x 2“ (71.12mm x 210.82mm x 50.8mm)
重量 AMX-N26E011: 0.92 lbs (0.42 kg)
AMX-N26E011-EK: 0.77 lbs (0.35 kb)
FG Numbers AMX-N26D012 (NMX-DEC-N2625-NA)
AMX-N26D012-EK (NMX-DEC-N2625-EK)
