NMX-DEC-N2625-WP Decoder Wallplate

MWC 4K60 4:4:4 Decoder Wallplate (US & UK/EU)

Larger Images

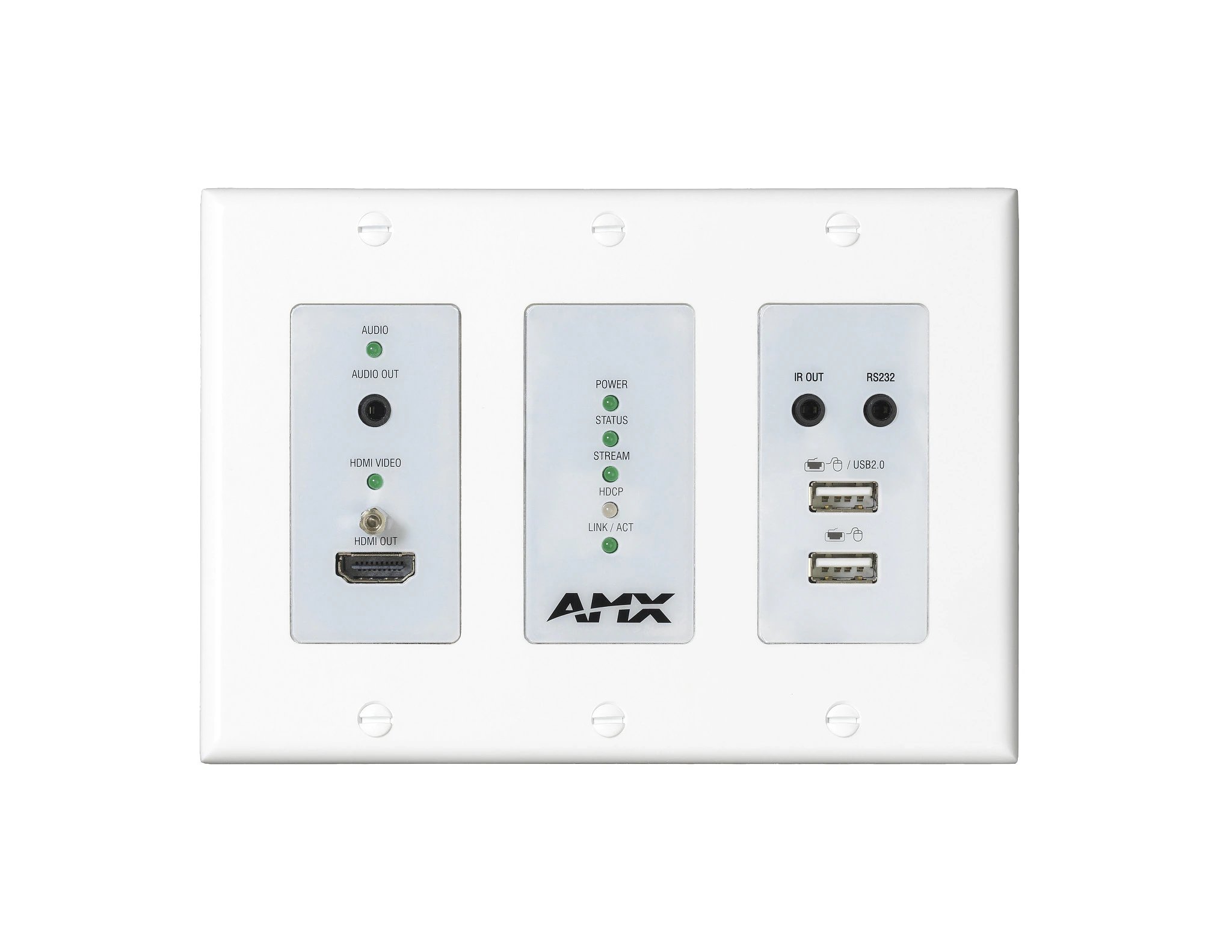

The AMX SVSI NMX-DEC-N2625-WP is a cost-effective, powerfully robust decoder wallplate. It features a high-quality, low-latency 4K60 4:4:4 MWC codec that is ideal for decoding both live video and detailed content in classrooms, meeting spaces, courtrooms, bars, and other applications.

Additional features include transport of full-bandwidth USB 2.0 signals, video preview images viewable from the built-in web interface or from a touch panel, and enhanced support for high-security networks. Decoder wallplates create an elegant and secure installation when installed behind a wall-mounted display.

These Encoder Wallplates are available in two models:

NMX-ENC-N2625-WP-NA (US Version) and NMX-ENC-N2625-WP-EK (EU/UK Version). Models include both black and white faceplate inserts and wallplate covers to ensure they blend seamlessly within modern decors.

Common Applications

The N2600 Series is ideal for almost any streaming application but is especially applicable for colleges and universities, corporate, casinos, hospitality, government and many more. High-quality, low-latency 4K60 4:4:4 MWC streaming is perfect for transmitting both live video and detailed content within classrooms, meeting spaces, courtrooms and bars. N2600 Decoder wallplates create an elegant and secure installation when installed behind a wall-mounted display.

Downloads

  Version Language Size Uploaded
Manuals
file type icon Instruction Manual – AMX N2600 Series Wallplates
en version B, updated: Jul 2023
en  5.14 MB Jul 2023
CAD Drawings
file type icon Pictorial Drawing (DXF) – NMX-DEC-N2625-WP
updated: Feb 2023
    855 KB Feb 2023
file type icon Pictorial Drawing (PDF) – NMX-DEC-N2625-WP
updated: Feb 2023
    496 KB Feb 2023
file type icon Pictorial Drawing (DWG) – NMX-DEC-N2625-WP
updated: Feb 2023
    1.04 MB Feb 2023
Firmware
platform icon N-Series N26x5 Video Encoder/Decoder Firmware
version 1.1.9, updated: Jul 2023
1.1.9     52.5 MB Jul 2023
Certifications
file type icon IECEE CB Certificate - N26x5-WP
en updated: Aug 2023
  en  239 KB Aug 2023
file type icon UL Certificate of Compliance - N26x5-WP
en updated: Apr 2023
  en  174 KB Apr 2023
Declaration Of Conformities
file type icon UKCA Declaration of Conformity - N26x5-WP
updated: Aug 2023
    243 KB Aug 2023
file type icon CE Declaration of Conformity - N26x5-WP
updated: Aug 2023
    235 KB Aug 2023
Programming Guides
file type icon Direct Control API - N26x5-WP
version A, updated: Sep 2023
  324 KB Sep 2023
Product Guides
file type icon Product Guide - N-Series Stream Compatibility Guide
updated: May 2023
    331 KB May 2023
Quick Start Guides
file type icon Quick Start Guide - NMX-DEC-N2625-WP
en version A, updated: Aug 2023
en  524 KB Aug 2023
Data Sheets
file type icon Data Sheet – NMX-DEC-N2625-WP
en version B, updated: Aug 2023
en  293 KB Aug 2023

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Features

  • High-Quality, Low-Latency 4K60 MWC decoding
  • Video Preview viewable from the built-in web interface or from a touch panel
  • USB 2.0 Transport
  • High security network support and features, including multicast, VLAN tagging and QoS
  • PoE powered with low-power mode for energy savings
  • Open Direct-Control API

Specifications

Video Inputs Network video over Ethernet via RJ45 port
Video Outputs HDMI
Video Resolution Support Supports most common resolutions up to 4096 x 2160 - Reference Data Sheet for Specific Resolution Support
Audio Inputs Network PCM audio over Ethernet via RJ45
Audio Outputs Embedded audio on HDMI or Analog Audio Output
Ports 3.5mm stereo audio port, HDMI Type A Socket, 3.5mm IR Out port, 3.5mm RS232 port, (2) USB Type A port, Gigabit Ethernet port with PoE support (rear),
Environmental Temperature - 32° to 104°F (0° to 40°C)
Humidity - 10% to 90% RH (non-condensing)
Heat Dissipation - Up to ~44 BTU/hr
Dimensions (H x W x D) AMX-N26E011: 4.2” x 5.2” x 2.3” (106.68mm x 132.08mm x 58.42mm)
AMX-N26E011-EK: 2.8“ x 8.3“ x 2“ (71.12mm x 210.82mm x 50.8mm)
Weight AMX-N26E011: 0.92 lbs (0.42 kg)
AMX-N26E011-EK: 0.77 lbs (0.35 kb)
FG Numbers AMX-N26D012 (NMX-DEC-N2625-NA)
AMX-N26D012-EK (NMX-DEC-N2625-EK)
