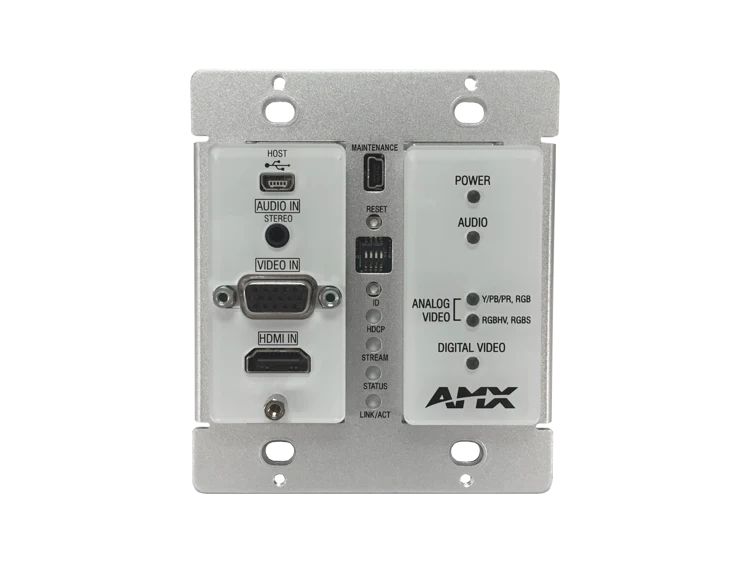

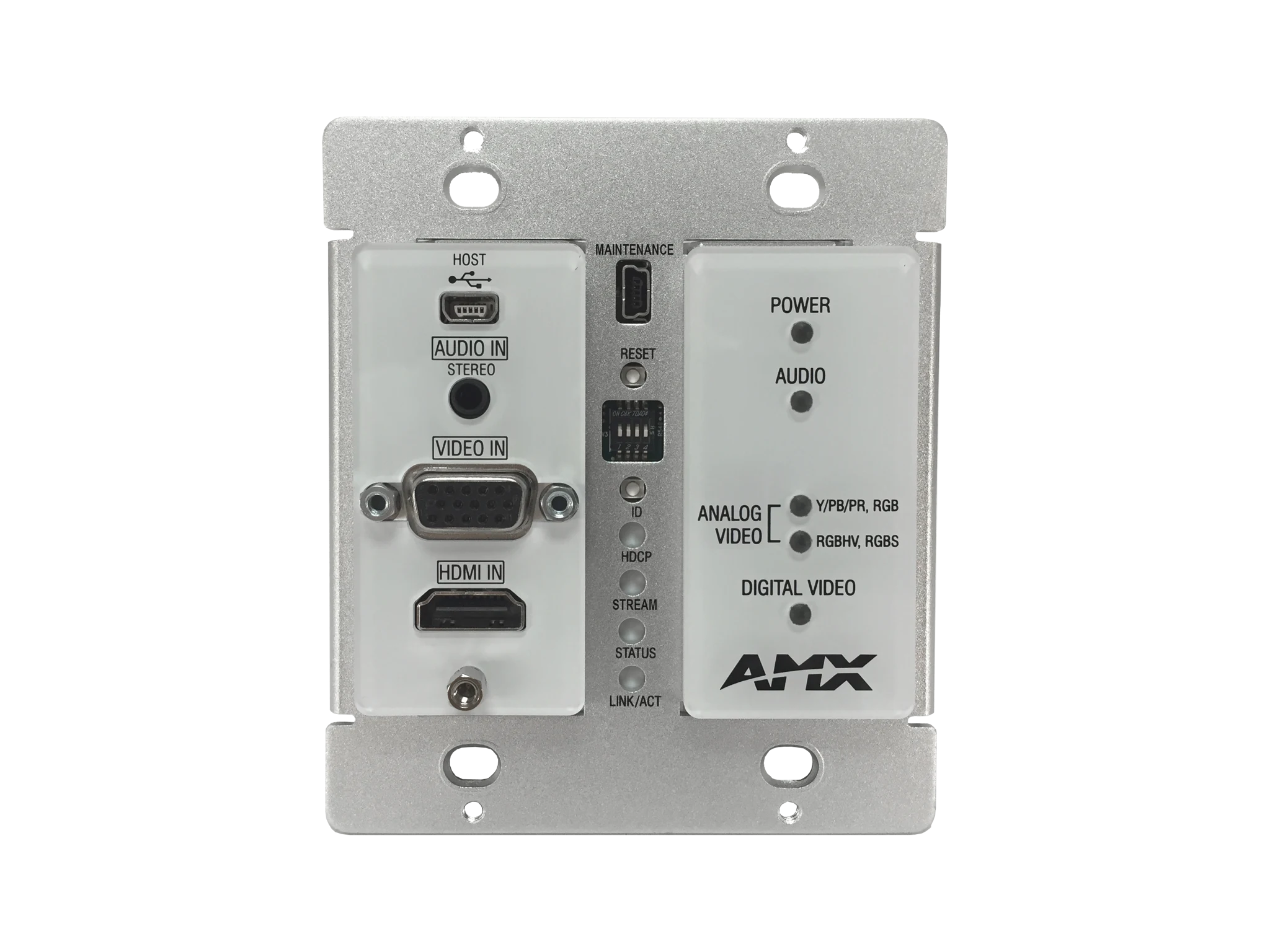

NMX-ENC-N1115-WP 壁板编码器

IP 视频 N1115 MPC 装饰风格壁板编码器,支持 KVM


N1000 系列编码器和解码器是一种经济实惠的本地 IP 音视切换解决方案,可将视频打包成较小压缩的 IP 格式,以低延迟馈送质量一流的视频。这种压缩非常适合点对点视频馈送、小型 2x1 切换应用和更大的切换应用(例如 32x32),所有这些都使用现成的第三层网络交换机完成。

NMX-ENC-N1115-WP 采用了双工墙板结构,可提供与 NMX-ENC-N1133 相同的一流编码功能。该编码器可以使用标准的双工美式后部箱轻松安装在墙壁、讲台或地板中,并且仅使用单根类别的电缆连接到电源和以太网。


NMX-ENC-N1115 尤为适合任何低延迟应用环境以及规模小于 32x32 的视频矩阵。常见应用环境包括会议室、小型空间和讲台(内部或邻近)













  Version Language Size Uploaded
CAD Drawings
file type icon Pictorial Drawing - NMX-ENC-N1115-WP MPC Decor Style Wallplate Encoder with KVM (PDF)
updated: 7月 2018
    466.0 KB 7月 2018
file type icon Pictorial Drawing - NMX-ENC-N1115-WP MPC Decor Style Wallplate Encoder with KVM (DXF)
updated: 7月 2018
    2.3 MB 7月 2018
file type icon Pictorial Drawing - NMX-ENC-N1115-WP MPC Decor Style Wallplate Encoder with KVM (DWG)
updated: 7月 2018
    806.5 KB 7月 2018
BIM Objects
file type icon NMX-ENC-N1115-WP - BIM Object
updated: 8月 2019
    8月 2019
platform icon SVSI N-Able PC
version 5.1.6, updated: 1月 2024
5.1.6     114.4 MB 1月 2024
platform icon SVSI N-Able Mac
version 5.1.4, updated: 2月 2024
5.1.4     240.0 MB 2月 2024
platform icon SVSI N1115 Encoder Wall Plate Firmware Updater
version 1.15.51, updated: 5月 2022
1.15.51     35.4 MB 5月 2022
Product Guides
file type icon Product Guide - N-Series Stream Compatibility Guide
version A, updated: 5月 2023
  380.3 KB 5月 2023
file type icon NET-SVSI-MIB.txt
updated: 8月 2021
    94.5 KB 8月 2021
Programming Guides
file type icon Zoom Room Controls – SVSI Encoder Configuration Example
version 0.1.5, updated: 9月 2021
0.1.5    131.8 KB 9月 2021
Data Sheets
file type icon NMX-ENC-N1115-WP, Minimal Proprietary Compression Video Over IP N1115 MPC Decor Style Wallplate Encoder with KVM
updated: 7月 2018
    304.5 KB 7月 2018
Quick Start Guides
file type icon Quick Start Guide - SVSI N1115 MPC Series Wallplate Encoder
updated: 10月 2020
    374.6 KB 10月 2020

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.


  • 子帧延迟 – 以 60 fps 帧率组合编码和解码,延迟仅为 10 ms。
  • 压缩技术 (MPC) - 所有分辨率均适用视觉无损 MPC 算法
  • 墙板结构 – 可便捷地装配在双工美国后部箱中,以轻松安装在墙壁、地板或讲台上。
  • 以太网供电 (PoE) – 使用 PoE 时无需设置电源
  • 无与伦比的灵活性 - 构建点对点链接,简单的 2x1 切换或高达 32x32 的经济高效矩阵。
  • 独立输入 - 编码器上可设置独立的 HDMI 和 VGA 输入接口


  • Digital Video Input: HDMI, DVI-D*, Dual-Mode DisplayPort (DP++)*
  • Analog Video Input: HD-15 VGA, Component*
  • Video Output: Video Output
  • Formats: HDMI, DVI-D*, Dual-Mode DisplayPort (DP++)*, HDCP content protection support, RGBHV, YPbPr
  • Progressive Input Resolutions
    • Supports most common HD up to 1920x1200.
  • Interlaced Input Resolutions
    • Supports 1080i60.
  • Analog Input Resolutions
    NOTE: Input resolutions supported @60Hz refresh rates are also supported @59.94Hz.
    • Supports most common HD up to 1920x1200.
  • Output Resolutions: Matched to inputs.
  • Analog-To-Digital Conversion: 8-bit 165 MHz per each of three color channels
    NOTE: The N1115-WP does not accept Composite or S-Video (YC).
  • Color Space: 4:2:2


*These signal types are supported through a passive adapter.

  • Input Signal Types: Embedded audio on HDMI (DVI-D through adapter) or Analog Stereo
  • Output Signal Types: Ethernet
  • Analog Audio Format: 8ch PCM, Stereo 2-channel
  • Analog-To-Digital Conversion: 16-bit 32 kHz, 44.1 kHz and 48 kHz
  • Latency: 10 ms at 60 fps
  • Bandwidth: 840 Mb/s (varies with resolution)


Note: This is the combined encode plus decode latency. Total latency from source to screen will also include any network latency.

Note: Scaling adds one frame of latency (17ms at 60fps).

  • Ethernet: 10/100/1000 Mbps, auto-negotiating, auto-sensing, full/half duplex, DHCP, Auto IP, and Static IP
  • HDMI: HDCP, EDID management
  • P0:
    • 8-wire RJ45 female
    • 10/100/1000 Mbps 10/100/1000Base-T auto-sensing gigabit Ethernet switch port
    • Provides the network connection, network AV video, and power to the Encoders and Decoders
  • HDMI IN: HDMI video input
  • VGA IN: DB15 analog input
  • USB IN - Host: USB-B host input
  • USB IN - Maintenance: USB-Mini maintenance input
Controls and Indicators - Front Panel
  • RESET Button:
    • Recessed pushbutton
    • Press to initiate a 'warm restart' causing the processor to reset, but not lose power. A reset does NOT affect the current settings
  • POWER LED: On solid (green) when operating power is supplied (via PoE or local power supply)
  • AUDIO LED: On (green) when audio is transmitting.
  • ANALOG VIDEO LEDs: On (green) when analog source is available and transmitting.
  • DIGITAL VIDEO LED: On (green) when video source is available and transmitting
  • HDCP LED: On (green) when the source is using HDCP
  • STREAM LED: On (green) when the unit is streaming video
  • STATUS LED: Flashing (green) when the unit is active.
  • LINK/ACT LED: Flashing (yellow) when network traffic is being sent or received.


  • Power over Ethernet
    • Can be powered via a PoE switch or other equipment with a PoE source. Conforms to IEEE 802.3af Class 3 (802.3at Type 1)
    • Point-to-point applications between the encoder and a decoder requires a PoE injector to power the wallplate encoder.


Note: In order for the unit to receive Power over Ethernet (PoE), it must be connected to a switch or other equipment that has a PoE PSE (Power Sourcing Equipment) port. Warning: Do not run wiring that is connected to a PoE PSE port outside of the building where the PSE resides. It is for intra-building use only.

  • Temperature (Operating): 32° to 104°F (0° to 40°C)
  • Temperature (Storage): -22° to 158°F (-30° to 70°C)
  • Humidity (Operating): 10% to 90% RH (non-condensing)
  • Humidity (Storage): 0% to 90% RH (non-condensing)
  • Heat Dissipation: Up to ~26 BTU/hr
  • Dimensions (HWD): 4.06" x 3.5" x 2.25" (10.31 cm x 8.84 cm x 5.72 cm)
  • Weight: .75 lb (0.34 kg)
  • Airflow: Natural convection via vent openings on front, back, and top
  • Installation
    • Mounts onto standard 2 gang US back boxes
    • Mounts into standard décor style wallplates (not included)
  • Regulatory Compliance: FCC, CE, and NTRL
  • Recommended Accessories
    • Compatible with NMX-ENC-N1222, NMX-ENC-N1233, NMX-ENC-N1512, and NMX-NVR-N6123
    • PS-POE-AT-TC High-Power PoE Injector, 802.3AT Compliant FG423-84)
FG Numbers

FGN1115-WP-WH (White)
FGN1115-WP-BL (Black)
