AMX DGX-O-DXFP-4K60

더 큰 이미지

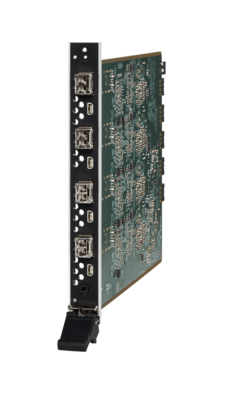

Enova DGX DXLink 4K60 Fiber Output Board는 HDMI 2.0 및 HDCP 2.2를 준수합니다. 4K60 4:4:4 비디오와 High Dynamic Range(HDR)를 지원하여 최적의 이미지 품질과 크로마 서브샘플링 없는 픽셀 단위 이미지 재현을 제공합니다. DXLink 4K60 Fiber는 36비트 Deep Color를 완벽하게 지원하여 가장 풍부하고 현실적인 비디오를 구현함으로써 최종 사용자가 소스 및 디스플레이 장치의 잠재력을 최대한 실현할 수 있도록 합니다.

본 보드는 4개의 출력을 제공하며 오디오, 비디오, 제어, USB 2.0 및 이더넷을 듀플렉스 광섬유를 통해 최대 300미터 떨어진 DXLink 4K60 Fiber 수신기로 전송합니다. 각 출력에는 Multi-Mode Duplex(MMD) SFP가 포함되어 있으며, 필요 시 Single-Mode Duplex(SMD) SFP로 교체할 수 있습니다. 본 보드는 Enova DGX 100-Series 인클로저 및 DXLink 4K60 Fiber 수신기와 호환됩니다.

광섬유는 전기 신호 대신 빛을 사용하여 데이터를 전송하므로 전자 노이즈나 비침입 물리적 도청에 영향을 받지 않아 최고 품질이자 가장 안전한 비디오 전송 방식입니다.

현장에 이미 구축된 Enova DGX 100-Series 인클로저는 새로운 Enova DGX DXLink 4K60 Fiber 보드 및 엔드포인트를 추가하거나 교체하여 우수한 비디오 품질을 지원하도록 손쉽게 업그레이드할 수 있습니다. 이는 기술 발전에 따라 진화하도록 설계된 미래 지향적인 Enova DGX 제품군을 보장하려는 AMX의 의지를 보여줍니다.

주요 적용 분야

PICTURE PERFECT
Enova DGX DXLink 4K60 Fiber Input and Output boards allow end users to realize the full potential of their source and display devices by fully supporting the latest HDMI 2.0 and HDCP 2.2 standards.
HDR and Deep Color Support
Enova DGX DXLink 4K60 Fiber Input and Output boards support HDR10 and 36-bit Deep Color for the richest, most realistic video.
EVER EVOLVING PLATFORM
Enova DGX enclosures already deployed in the field can be easily upgraded to support superior video quality by adding or swapping in new Enova DGX DXLink 4K60 Fiber cards and end-points. This underscores the AMX commitment to ensure a future-proof Enova DGX family that is designed to evolve with advances in technology.
MISSION CRITICAL SECURITY
Fiber optic cable provides the most secure and reliable medium for transmitting data and supports transportation over extreme distances.

PICTURE PERFECT
Enova DGX DXLink 4K60 Fiber Input and Output boards allow end users to realize the full potential of their source and display devices by fully supporting the latest HDMI 2.0 and HDCP 2.2 standards.

HDR and Deep Color Support
Enova DGX DXLink 4K60 Fiber Input and Output boards support HDR10 and 36-bit Deep Color for the richest, most realistic video.

EVER EVOLVING PLATFORM
Enova DGX enclosures already deployed in the field can be easily upgraded to support superior video quality by adding or swapping in new Enova DGX DXLink 4K60 Fiber cards and end-points. This underscores the AMX commitment to ensure a future-proof Enova DGX family that is designed to evolve with advances in technology.

MISSION CRITICAL SECURITY
Fiber optic cable provides the most secure and reliable medium for transmitting data and supports transportation over extreme distances.

상세 정보

This output board is ideal for applications where the demands of high-resolution video clarity, long distance transmission, and maximum security need to be met without compromise, including campus-wide distribution of sources that are shared between classrooms, secure military applications, casinos, arenas, and museums.

configuration_tool

Enova DGX 100 Series Configuration Tool

다운로드

Manuals

	크기	업로드됨
Support Guide – IO Board and Endpoint Compatibility 업데이트됨: 2021년 6월월	46.4KB	2021년 6월월
Support Guide – Enova DGX Board Replacement 업데이트됨: 2021년 6월월	847KB	2021년 6월월
Support Guide – DGX Fiber Cable Management 업데이트됨: 2021년 6월월	291KB	2021년 6월월

Comparison Charts

	크기	업로드됨
Comparison Chart – DGX Video Boards 업데이트됨: 2021년 6월월	159KB	2021년 6월월

Certifications

	크기	업로드됨
Certificate of Compliance 업데이트됨: 2021년 6월월	176KB	2021년 6월월
Enova DGX 100 Series CB Test Certificate 62368 업데이트됨: 2021년 6월월	143KB	2021년 6월월
Enova DGX 100 Series CE Declaration of Conformity 업데이트됨: 2021년 6월월	276KB	2021년 6월월
Enova DGX 100 Series CB Test Certificate 60950 업데이트됨: 2021년 6월월	201KB	2021년 6월월

Data Sheets

	언어	크기	업로드됨
Data Sheet – DGX-O-DXFP-4K60 업데이트됨: 2021년 11월월		197KB	2021년 11월월

Configuration Tools

	크기	업로드됨
Enova DGX 100 Series Configuration Tool 업데이트됨: 2021년 3월월		2021년 3월월

위의 링크 중 하나에서 브라우저에 이상한 문자가 표시되면, 파일을 마우스 오른쪽 버튼으로 클릭하여 컴퓨터에 저장하십시오.

기능

Perfect 4K60 4:4:4 Video - Ideal for users that can benefit from processing the full fidelity of their displays
High Dynamic Range (HDR) and Deep Color Support – Support HDR10 and 36-bit per pixel deep color
HDMI 2.0 & HDCP 2.2 - Supports the latest video standards to realize the full capabilities of HDMI interfaces
USB 2.0 - High-speed USB 2.0 data from devices like web cameras and storage devices are transmitted without the need for separate cables.
As Always, Just One Cable– Just like all current AMX DGX Fiber solutions, video, audio, and control are delivered over a single cable. Many competitive products require two or more cable runs which adds significant cost.
Hot Swappable– Easily add or replace I/O boards at any time after deployment - the system automatically recognizes the new configuration and activates the boards.
Single MMD SKU – All Fiber Modules include a Multi-Mode Duplex (MMD) SFP module. Customers may replace these with their own Single-Mode Duplex (SMD) module if needed.

사양

Connectors	(4) Duplex LC Fiber Ports, conforming to ANSI TIA/EIA 604-10 (FOCIS 10A), (4) Mini-USB AB Ports
Compatible Formats	HDMI Video, Audio, Ethernet, USB(HID), USB (2.0), Serial Control, and IR Control
Signal Type Support	DXLink Multimode Fiber, Duplex NOTE: DXLink 4K60 Fiber boards ship with Multimode Duplex Fiber SFP+ modules installed. These can be field replaced with compatible 10G Single-mode Duplex Fiber SFP+ modules in applications where single-mode fiber is required.
Maximum Resolution Support	480p up to 3840x2160 @ 60Hz 4:4:4 and 4:2:2, including: 3840x2160p@50/60 Hz, 4:2:0 4096x2160p@50/60 Hz, 4:2:0
Audio Format Support	Dolby Atmos, Dolby TrueHD, Dolby Digital Plus, Dolby Digital, DTS-HD MA, DTS-HD High Resolution, DTS, 2 CH through 8 CH L-PCM - Dolby Digital and DTS support up to 48 kHz, 5.1 Channels - When a downstream DXFP-RX- 4K60 is in the signal path, audio formats other than 2CH LPCM and Dolby Digital 5.1 require the DXFP-RX-4K60 to have its scaler set to bypass.
AIE Board Support	Yes, supports insertion of 2 CH LPCM
Audio Switching Board Support	Supports break-away audio switching of 2 CH L-PCM for all channels Supports downmix from one input channel of Dolby Atmos, Dolby True-HD, Dolby Digital Plus, Dolby Digital, DTS-HD MA, DTS-HD High Resolution, DTS, or 2 to 8 channel L-PCM - Downmix supported on 4k video inputs with pixel clocks up to 297MHz (up to 3840x2160p @ 30Hz)
USB	USB HID and USB 2.0 are supported point-to-point to DXLink 4K60 HDMI Receivers. The DXLink Output board is automatically configured as either Host or Device depending on the mode selected on the attached DXLink 4K60 Receiver.
Compatible DXLink TX/RX	DXLink 4K60 Fiber Receivers (DXFP-RX-4K60)
FG Numbers	FG1061-634
JITC Status	Approved - 04/2023
