DGX-O-DXFP-4K60

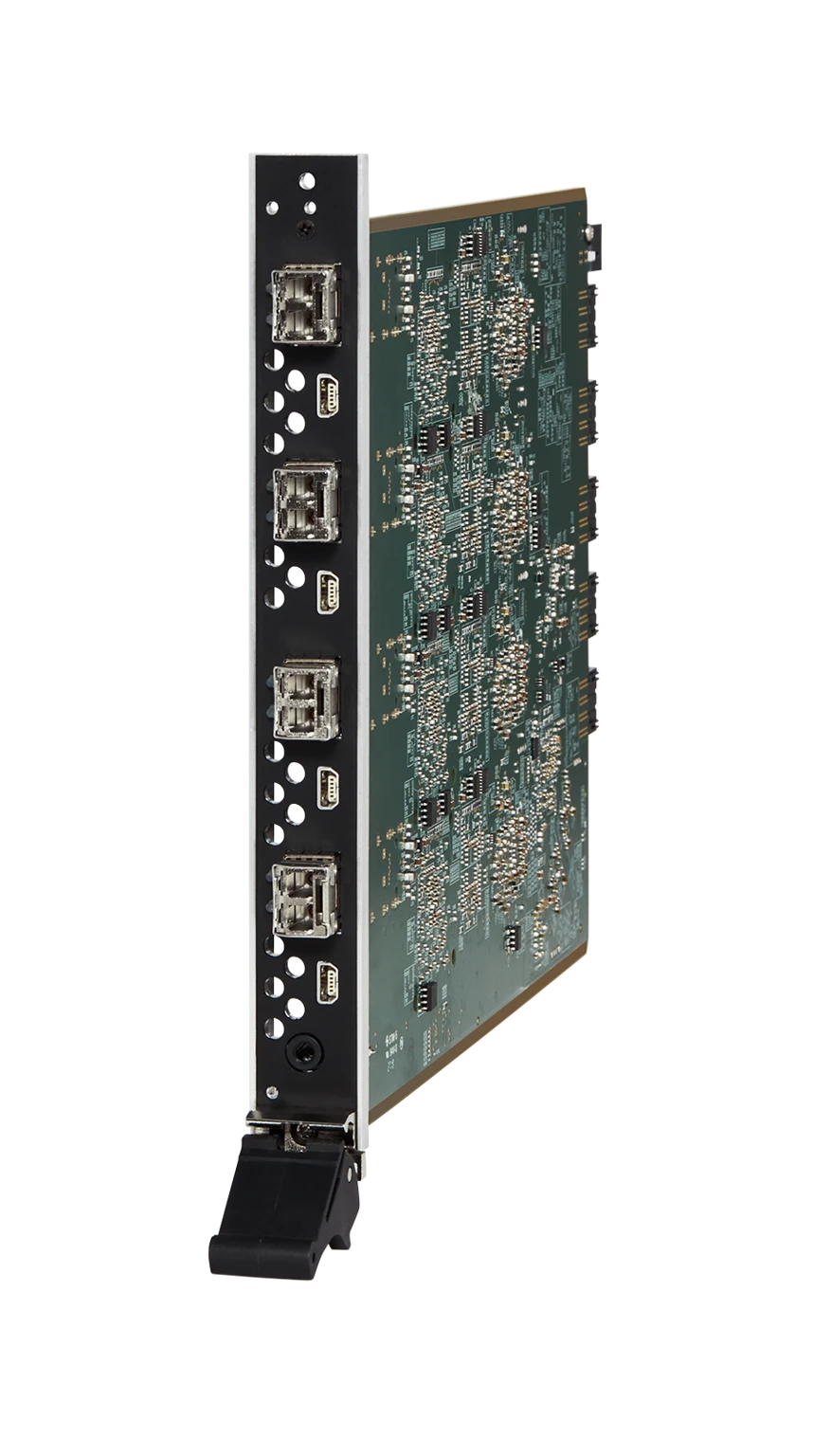

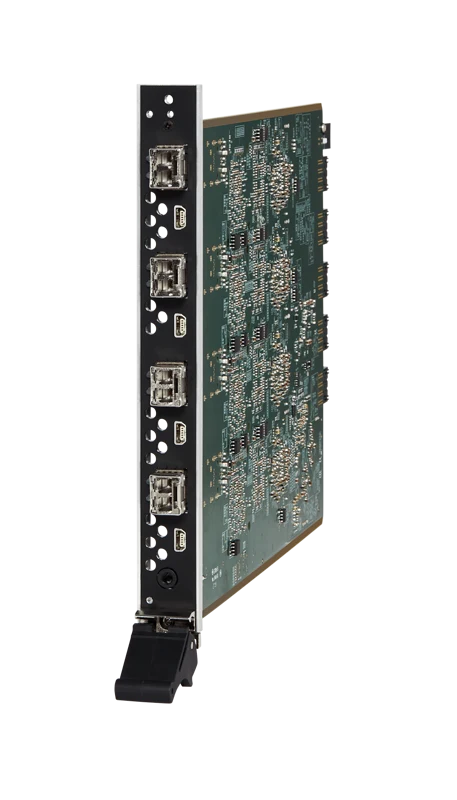

Enova® DGX DXLink™ 4K60 Fiber Output Board

Larger Images

The Enova DGX DXLink 4K60 Fiber Output Board is HDMI 2.0 and HDCP 2.2 compliant. It supports 4K60 4:4:4 video and High Dynamic Range (HDR) for optimum image quality and pixel-for-pixel image reproduction without chroma subsampling. DXLink 4K60 Fiber allows end users to realize the full potential of their source and display devices by fully supporting 36-bit Deep Color for the richest, most realistic video.

This board has four outputs and transmits audio, video, control, USB 2.0, and Ethernet over duplex fiber up to 300 meters away to a DXLink 4K60 Fiber receiver. Each output includes a Multi-Mode Duplex (MMD) SFP, which can be replaced with a Single-Mode Duplex (SMD) SFP if needed. This board is compatible with Enova DGX 100-Series enclosures and DXLink 4K60 Fiber receivers.

Fiber uses light to distribute data rather than electric signals making it both the highest quality and most secure way to transport video as it is not susceptible to electronic noise or non-intrusive physical wiretapping.

Enova DGX 100-Series enclosures already deployed in the field can be easily upgraded to support superior video quality by adding or swapping in new Enova DGX DXLink 4K60 Fiber boards and endpoints. This underscores the AMX commitment to ensure a future-proof Enova DGX family that is designed to evolve with advances in technology.

Common Applications

  • PICTURE PERFECT
    Enova DGX DXLink 4K60 Fiber Input and Output boards allow end users to realize the full potential of their source and display devices by fully supporting the latest HDMI 2.0 and HDCP 2.2 standards.

  • HDR and Deep Color Support
    Enova DGX DXLink 4K60 Fiber Input and Output boards support HDR10 and 36-bit Deep Color for the richest, most realistic video.

  • EVER EVOLVING PLATFORM
    Enova DGX enclosures already deployed in the field can be easily upgraded to support superior video quality by adding or swapping in new Enova DGX DXLink 4K60 Fiber cards and end-points. This underscores the AMX commitment to ensure a future-proof Enova DGX family that is designed to evolve with advances in technology.

  • MISSION CRITICAL SECURITY
    Fiber optic cable provides the most secure and reliable medium for transmitting data and supports transportation over extreme distances.

PICTURE PERFECT
Enova DGX DXLink 4K60 Fiber Input and Output boards allow end users to realize the full potential of their source and display devices by fully supporting the latest HDMI 2.0 and HDCP 2.2 standards.

HDR and Deep Color Support
Enova DGX DXLink 4K60 Fiber Input and Output boards support HDR10 and 36-bit Deep Color for the richest, most realistic video.

EVER EVOLVING PLATFORM
Enova DGX enclosures already deployed in the field can be easily upgraded to support superior video quality by adding or swapping in new Enova DGX DXLink 4K60 Fiber cards and end-points. This underscores the AMX commitment to ensure a future-proof Enova DGX family that is designed to evolve with advances in technology.

MISSION CRITICAL SECURITY
Fiber optic cable provides the most secure and reliable medium for transmitting data and supports transportation over extreme distances.

Common Applications

This output board is ideal for applications where the demands of high-resolution video clarity, long distance transmission, and maximum security need to be met without compromise, including campus-wide distribution of sources that are shared between classrooms, secure military applications, casinos, arenas, and museums.

Configuration Tool

Downloads

  Version Language Size Uploaded
Manuals
Support Guide – IO Board and Endpoint Compatibility
updated: Jun 09, 2021
    46.4 KB Jun 09, 2021
Support Guide – Enova DGX Board Replacement
updated: Jun 09, 2021
    847 KB Jun 09, 2021
Support Guide – DGX Fiber Cable Management
updated: Jun 09, 2021
    291 KB Jun 09, 2021
Comparison Charts
Comparison Chart – DGX Video Boards
updated: Jun 09, 2021
    159 KB Jun 09, 2021
Certifications
Certificate of Compliance
updated: Jun 08, 2021
    176 KB Jun 08, 2021
Enova DGX 100 Series CB Test Certificate 62368
updated: Jun 09, 2021
    143 KB Jun 09, 2021
Enova DGX 100 Series CE Declaration of Conformity
updated: Jun 09, 2021
    276 KB Jun 09, 2021
Enova DGX 100 Series CB Test Certificate 60950
updated: Jun 09, 2021
    201 KB Jun 09, 2021
Data Sheets
Data Sheet – DGX-O-DXFP-4K60
en updated: Aug 23, 2021
  en  527 KB Aug 23, 2021
Configuration Tools
Enova DGX 100 Series Configuration Tool
updated: Mar 23, 2021
    Mar 23, 2021

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Features

  • Perfect 4K60 4:4:4 Video - Ideal for users that can benefit from processing the full fidelity of their displays
  • High Dynamic Range (HDR) and Deep Color Support – Support HDR10 and 36-bit per pixel deep color
  • HDMI 2.0 & HDCP 2.2 - Supports the latest video standards to realize the full capabilities of HDMI interfaces
  • USB 2.0 - High-speed USB 2.0 data from devices like web cameras and storage devices are transmitted without the need for separate cables.
  • As Always, Just One Cable– Just like all current AMX DGX Fiber solutions, video, audio, and control are delivered over a single cable. Many competitive products require two or more cable runs which adds significant cost.
  • Hot Swappable– Easily add or replace I/O boards at any time after deployment - the system automatically recognizes the new configuration and activates the boards.
  • Single MMD SKU – All Fiber Modules include a Multi-Mode Duplex (MMD) SFP module. Customers may replace these with their own Single-Mode Duplex (SMD) module if needed.

Specifications

Connectors (4) Duplex LC Fiber Ports, conforming to ANSI TIA/EIA 604-10 (FOCIS 10A), (4) Mini-USB AB Ports
Compatible Formats HDMI Video, Audio, Ethernet, USB(HID), USB (2.0), Serial Control, and IR Control
Signal Type Support DXLink Multimode Fiber, Duplex

NOTE: DXLink 4K60 Fiber boards ship with Multimode Duplex Fiber SFP+ modules installed. These can be field replaced with compatible 10G Single-mode Duplex Fiber SFP+ modules in applications where single-mode fiber is required.
Maximum Resolution Support

480p up to 3840x2160 @ 60Hz 4:4:4 and 4:2:2, including:

  • 3840x2160p@50/60 Hz, 4:2:0
  • 4096x2160p@50/60 Hz, 4:2:0
Audio Format Support Dolby Atmos, Dolby TrueHD, Dolby Digital Plus, Dolby Digital, DTS-HD MA, DTS-HD High Resolution, DTS, 2 CH through 8 CH L-PCM

- Dolby Digital and DTS support up to 48 kHz, 5.1 Channels

- When a downstream DXFP-RX- 4K60 is in the signal path, audio formats other than 2CH LPCM and Dolby Digital 5.1 require the DXFP-RX-4K60 to have its scaler set to bypass.
USB USB HID and USB 2.0 are supported point-to-point to DXLink 4K60 HDMI Receivers.

The DXLink Output board is automatically configured as either Host or Device depending on the mode selected on the attached DXLink 4K60 Receiver.
Compatible DXLink TX/RX DXLink 4K60 Fiber Receivers (DXFP-RX-4K60)
FG Numbers FG1061-634
