DX-RX-4K60

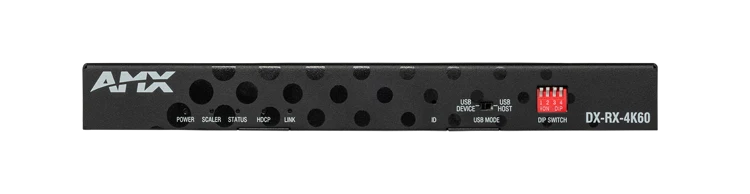

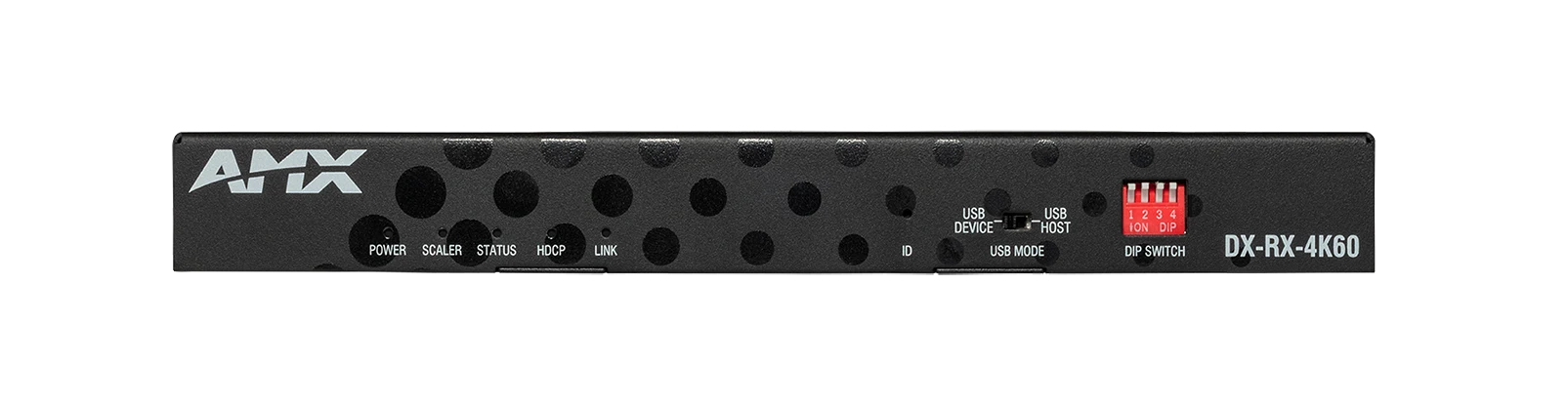

DXLink 4K60 HDMI 接收器模块

较大的图像

AMX DXLink 4K60 HDMI 接收器是一款支持 4K60 4:4:4 的远程传输解决方案,支持传输 HDMI 2.0 与 HDCP 2.2 内容并搭载了 SmartScale® 技术,可自动根据每台显示设备的具体配置调整分辨率,从根本上消除了因源设备和显示器分辨率不同而导致的兼容问题。 它通过一根带屏蔽的 Cat6、 Cat6A 或 Cat7 标准双绞线电缆接收4K@60Hz 4:4:4 视频信号以及音频信号、控制信号、以太网和 USB 2.0 。 DXLink 4K60 HDMI 接收器适用于长距离接收 DXLink 4K60 发射器或其他与AMX兼容的发射器(例如 DGX DXLink 4K60 双绞线输出板卡)的HDMI和控制信号。接收器的内置控制端口可用 于控制第三方受控设备,另外ICSLan 端口与 Enova DGX 100 系列配合使用时可一个IP网络访问端口。

  • PICTURE PERFECT
    DXLink 4K60 Transmitters and Receivers allow end users to realize the full potential of their source and display devices by fully supporting the latest HDMI 2.0 and HDCP 2.2 standards.

  • HDR and Deep Color Support
    DXLink 4K60 Transmitters and Receivers support HDR10 and 36-bit Deep Color for the richest, most realistic video.

  • USB 2.0 Extension
    DXLink 4K60 Transmitters and Receivers can extend high-speed USB 2.0 data from devices like web cameras or storage devices without the need for extra cables.

  • ULTRA CLEAN INSTALLS
    DXLink 4K60 4:4:4 TX/RX can deliver audio, video, control, Ethernet, and USB 2.0 signals up to 100m over a single category cable, eliminating the need for multiple, costly cable runs.

featured content

PICTURE PERFECT
DXLink 4K60 Transmitters and Receivers allow end users to realize the full potential of their source and display devices by fully supporting the latest HDMI 2.0 and HDCP 2.2 standards.

featured content

HDR and Deep Color Support
DXLink 4K60 Transmitters and Receivers support HDR10 and 36-bit Deep Color for the richest, most realistic video.

featured content

USB 2.0 Extension
DXLink 4K60 Transmitters and Receivers can extend high-speed USB 2.0 data from devices like web cameras or storage devices without the need for extra cables.

featured content

ULTRA CLEAN INSTALLS
DXLink 4K60 4:4:4 TX/RX can deliver audio, video, control, Ethernet, and USB 2.0 signals up to 100m over a single category cable, eliminating the need for multiple, costly cable runs.

更多详情

DXLink 4K60 HDMI 接收器模块能够传输 4K60 4:4:4 视频,特别适合要求高清视频画质或需要简单安装的应用环境。

  • 在教室内或教室之间传输音频和视频以进行协作或分布式学习的高等院校。
  • 在会议空间内馈送音频和视频的公司。
  • 在培训室、模拟室或实验室中馈送高分辨率视频的医疗环境。

Videos





configuration_tool

下载

  Version Language Size Uploaded
Manuals
file type icon Hardware Reference Manual - DXLink 4K60 Twisted Pair Transmitter & Receiver
en version 1.0.7, updated: 5月 2023
1.0.7  en  3.9 MB 5月 2023
file type icon Support Guide - IO Board and Endpoint Compatibility
updated: 12月 2020
    46.4 KB 12月 2020
CAD Drawings
file type icon Pictorial Drawing (PDF) – DX-RX-4K60
updated: 12月 2020
    314.7 KB 12月 2020
file type icon Pictorial Drawing (DXF) – DX-RX-4K60
updated: 12月 2020
    5.0 MB 12月 2020
file type icon Pictorial Drawing (DWG) – DX-RX-4K60
updated: 12月 2020
    1.1 MB 12月 2020
Firmware
platform icon DXLink 4K60 Receiver Firmware
version 1.8.4, updated: 9月 2023
1.8.4     179.9 MB 9月 2023
Whitepapers
file type icon Cabling for Success with DXLink
updated: 10月 2020
    1.6 MB 10月 2020
Product Guides
file type icon DXLink Compatibility Tool
updated: 4月 2021
    4月 2021
Certifications
file type icon IECEE CB Test Certificate – DX-RX-4K60
updated: 12月 2020
    2.3 MB 12月 2020
file type icon CE Declaration of Conformity – DX-RX-4K60
updated: 12月 2020
    683.0 KB 12月 2020
Quick Start Guides
file type icon Quick Start Guide – DX-RX-4K60
updated: 12月 2020
    547.6 KB 12月 2020
Data Sheets
file type icon DX-RX-4K60 - Data Sheet
updated: 2月 2021
    169.9 KB 2月 2021
Configuration Tools
file type icon Enova DGX 100 Series Configuration Tool
updated: 3月 2021
    3月 2021

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

特点

  • 远距离传输 HDMI 2.0 4K60 4:4:4 – 特别适合运行关键查看应用的用户;例如,需要充分利用显示器高保真度实现传输的运营中心
  • 支持高动态范围(HDR)和深色 支持 HDR10 和 36 位深色。
  • HDCP 2.2 - 支持最新的视频标准,以实现 HDMI 接口的全部功能。
  • USB 2.0 – 无需单独电缆,即可高速传输来自网络摄像头和存储设备的 USB 2.0 数据。
  • 单一电缆传输 - 正如当前所有 AMX DXLink 音频和视频传输解决方案一样,与可能需要双电缆走线的其他产品相比,单条双绞线电缆可支持较高的分辨率和高保真传输,从而节省大量成本。
  • 双绞线电缆 – 利用经济高效的双绞线电缆节省安装时间并减少工作量。
  • 兼容 HDBaseT– 符合 HDBaseT 标准,使其与第三方 HDBaseT 来源兼容。

性能

尺寸(高宽厚)

1" x 8 2/3" x 6 1/3" (2.54 cm x 22.0 cm x 16.0 cm)

双绞线类型和长度

Cat6、Cat6A 和 Cat7 屏蔽线。
Cat6A 和 Cat7 类屏蔽线最大有效距离为 328 英尺(100 米)

后连接器

本地电源:2.1 mm DC 电源插孔;
DXLink 端口:RJ-45;
USB 主机端口:B 型 USB;
USB 设备端口:A 型 USB;
ICSLAN/以太网端口:RJ-45;
IR-RX 端口:3.5 mm 微型单插孔;
IR-TX 端口:2 引脚菲尼克斯;
串行端口:3 引脚菲尼克斯;
HDMI 输出:HDMI A 型母头;
模拟立体声输出:3.5mm 迷你立体声插孔

USB2.0

USB2.0 支持点对点连接至兼容 DXLink 4K60 的切换器或 DXLink 4K60 HDMI 发射器

HDMI

兼容格式:HDMI2.0,HDCP2.2,DVI

Resolution Support

高达 4096 x 2160 p @ 60 Hz,4:4:4

HDMI 音频

音频解析度:16 位至 24 位;

音频采样率:32 kHz、44.1 kHz、48 kHz、96 kHz、192 kHz

HDCP

HDCP2.2

FG Numbers

FG1010-512-01
FG1010-512-02 (TAA)
