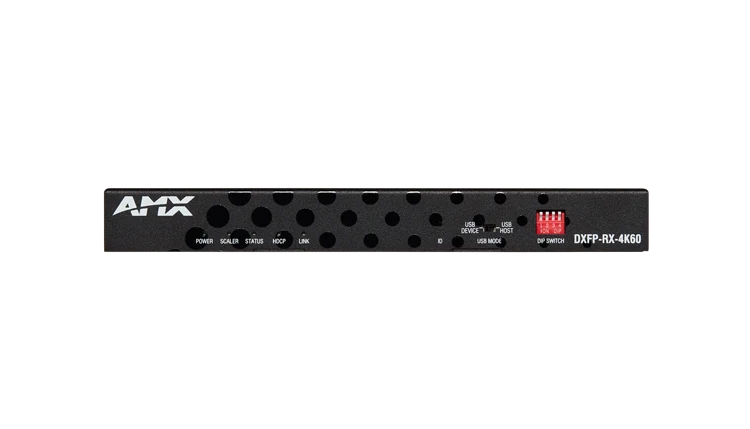

DXFP-RX-4K60

DXLink 4K60 HDMI Fiber Receiver Module

DXFP-RX-4K60

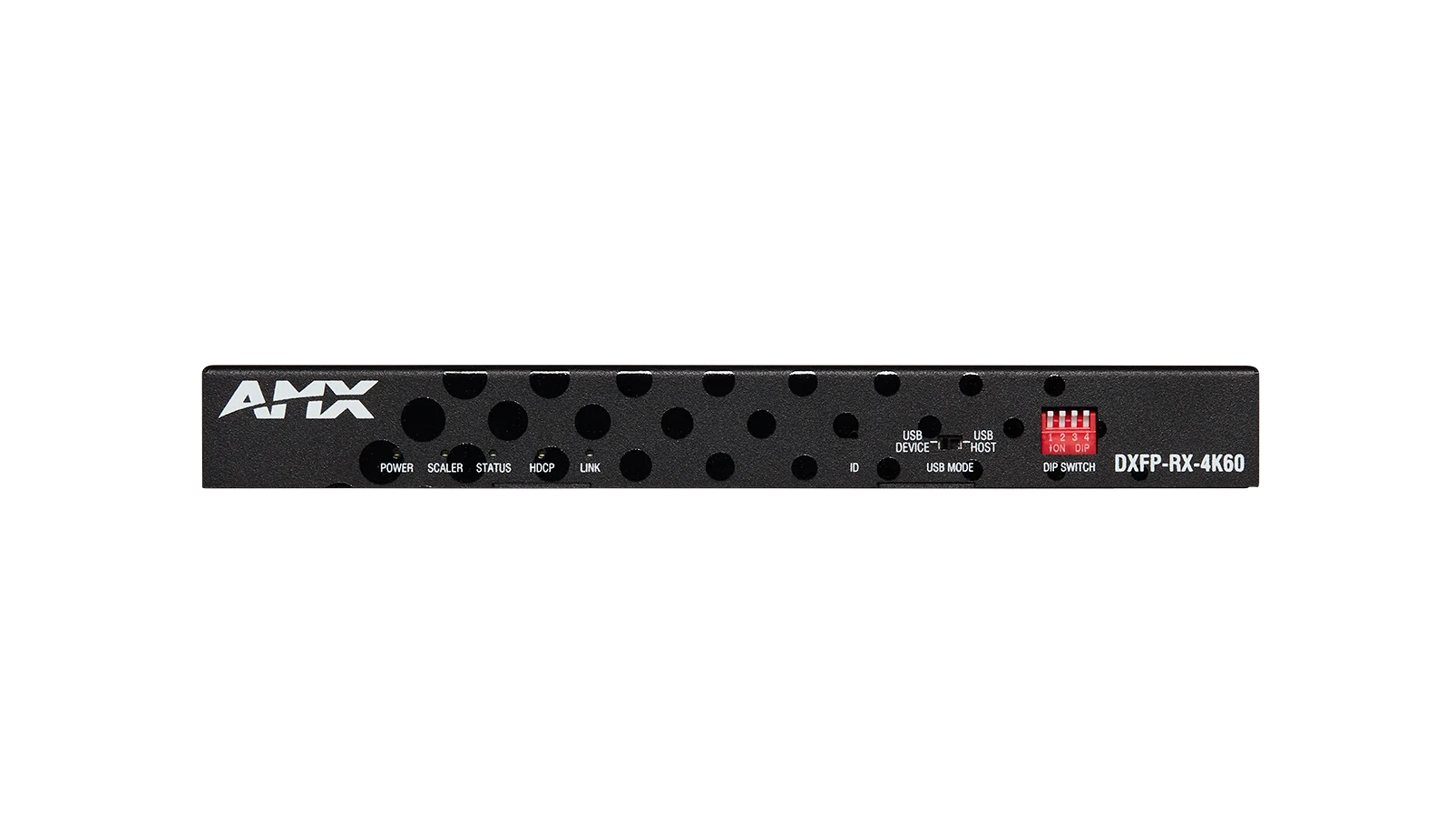

较大的图像

The AMX DXLink 4K60 HDMI Fiber Receiver is HDMI 2.0 and HDCP 2.2 compliant. It supports 4K60 4:4:4 video and High Dynamic Range (HDR) for optimum video quality and pixel-for-pixel image reproduction without chroma subsampling. DXLink 4K60 Fiber allows end users to realize the full potential of their source and display devices by fully supporting 36-bit Deep Color for the richest, most realistic video.

This module receives audio, video, control, USB 2.0, and Ethernet over duplex fiber from a DXLink 4K60 Fiber transmitter up to 300 meters away. It includes a Multi-Mode Duplex (MMD) SFP, which can be replaced with a Single-Mode Duplex (SMD) SFP if needed.

Fiber uses light to distribute data rather than electric signals making it both the highest quality and most secure way to transport video as it is not susceptible to electronic noise or non-intrusive physical wiretapping. This module is compatible with DGX DXLink 4K60 Fiber output cards and DXLink 4K60 Fiber transmitters.

  • PICTURE PERFECT

    DXLink 4K60 Fiber Transmitters and Receivers allow end users to realize the full potential of their source and display devices by fully supporting the latest HDMI 2.0 and HDCP 2.2 standards.

  • HDR and Deep Color Support

    DXLink 4K60 Fiber Transmitters and Receivers support HDR10 and 36-bit Deep Color for the richest, most realistic video.

  • USB 2.0 Extension

    DXLink 4K60 Fiber Transmitters and Receivers can extend high-speed USB 2.0 data from devices like web cameras or storage devices without the need for extra cables.

  • MISSION CRITICAL SECURITY

    Fiber optic cable provides the most secure and reliable medium for transmitting data and supports transportation over extreme distances.

featured content

PICTURE PERFECT

DXLink 4K60 Fiber Transmitters and Receivers allow end users to realize the full potential of their source and display devices by fully supporting the latest HDMI 2.0 and HDCP 2.2 standards.

featured content

HDR and Deep Color Support

DXLink 4K60 Fiber Transmitters and Receivers support HDR10 and 36-bit Deep Color for the richest, most realistic video.

featured content

USB 2.0 Extension

DXLink 4K60 Fiber Transmitters and Receivers can extend high-speed USB 2.0 data from devices like web cameras or storage devices without the need for extra cables.

featured content

MISSION CRITICAL SECURITY

Fiber optic cable provides the most secure and reliable medium for transmitting data and supports transportation over extreme distances.

更多详情

This receiver is ideal for applications where the demands of high-resolution video clarity, long distance transmission, and maximum security need to be met without compromise, including campus-wide distribution of sources that are shared between classrooms, secure military applications, casinos, arenas, and museums.

configuration_tool

下载

  Version Language Size Uploaded
Manuals
file type icon Support Guide – IO Board and Endpoint Compatibility
updated: 6月 2021
    46.4 KB 6月 2021
file type icon Hardware Reference Manual - DXLink 4K60 Fiber Transmitter & Receiver
en version 1.0.2, updated: 5月 2023
1.0.2  en  3.6 MB 5月 2023
CAD Drawings
file type icon Pictorial Drawing (PDF) – DXFP-RX-4K60
updated: 6月 2021
    456.2 KB 6月 2021
file type icon Pictorial Drawing (DWG) – DXFP-RX-4K60
updated: 6月 2021
    2.2 MB 6月 2021
file type icon Pictorial Drawing (DXF) – DXFP-RX-4K60
updated: 6月 2021
    8.6 MB 6月 2021
Firmware
platform icon DXFP-RX-4K60 Firmware
version 1.8.4, updated: 9月 2023
1.8.4     179.9 MB 9月 2023
Data Sheets
file type icon Data Sheet – DXFP-RX-4K60
en updated: 6月 2021
  en  571.2 KB 6月 2021
Quick Start Guides
file type icon Quick Start Guide – DXFP-RX-4K60
version 1.0.4, updated: 10月 2021
1.0.4    4.5 MB 10月 2021
Configuration Tools
file type icon Enova DGX 100 Series Configuration Tool
updated: 3月 2021
    3月 2021

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

特点

  • HDMI 2.0 4K60 4:4:4 Over Distance - Ideal for users running critical viewing applications such as operations centers requiring transport which uses the full fidelity of their displays
  • High Dynamic Range (HDR) Support – Support for 36-bit Deep Color.
  • HDCP 2.2 - Supports the latest video standards to realize the full capabilities of HDMI interfaces
  • USB 2.0 - High-speed USB 2.0 data from devices like web cameras and storage devices are transmitted without the need for separate cables.
  • As Always, Just One Cable– Just like all current AMX DGX Fiber solutions, video, audio, and control are delivered over a single cable. Many competitive products require two or more cable runs which adds significant cost.
  • Single MMD SKU – All Fiber Modules include a Multi-Mode Duplex (MMD) SFP module. Customers may replace these with their own Single-Mode Duplex (SMD) module if needed.

性能

尺寸(高宽厚) 220mm x 25mm x 220mm / 8.66’’ x 0.98’’ x 8.66”
DXLink 光纤 Fiber Connector: LC Duplex conforming to ANSI TIA/EAI 604-10 (FOCIS 10A)
USB USB HID and USB 2.0 are supported point-to-point to DXLink 4K60 HDMI Fiber Transmitters and DGX DXLink 4K60 Fiber Output Boards.
后连接器 Local Power: 2.1mm DC Power Jack; DXLink Fiber Input: LC Duplex conforming to ANSI TIA/EAI 604-10 (FOCIS 10A); ICS LAN/Ethernet Port: RJ-45 Connector; HDMI Output: HDMI Type-A Receptacle; Serial: 3.5mm Phoenix Receptacle; IR RX: 3.5mm mini Jack; IR TX: 3.5mm mini Jack; USB Host: USB Type B Connector; USB Device: USB Type A Connector; Analog Audio Output: 3.5mm mini Stereo Jack
HDMI Compatible Formats: HDMI, HDCP
4K Format Support Scaler Mode:
3840x2160@24/25/30/50/60 (4:4:4);
4096x2160@24/25/30/60 (4:4:4)
Bypass Mode:
3840x2160@24/25/30/50; 4096x2160@24/25/30;
3840x2160@60 4:4:4; 4096x2160@60 4:2:0
HDMI 音频支持 Bypass Mode: Dolby TrueHD, Dolby Digital, DTS-HD MA, DTS, 2 CH L-PCM, 6 CH L-PCM, 8 CH L-PCM Dolby Digital and DTS support up to 48kHz, 5.1 channels
Scaler Mode: PCM 2.0
HDCP HDCP Support: Yes, 1.4, 2.2

电源

Each RX ships with a desktop power supply with power cord
兼容的 AMX 产品 Enova DGX 800/1600/3200/6400 Digital Media Switchers with DGX DXLink 4K60 Fiber Output Board (DGX-O-DXFP-4K60) installed, DXLink 4K60 Fiber Transmitters (DXFP-TX-4K60)
FG Numbers DXFP-RX-4K60 (FG1010-565-01)
DXFP-RX-4K60-TAA (FG1010-565-02)
