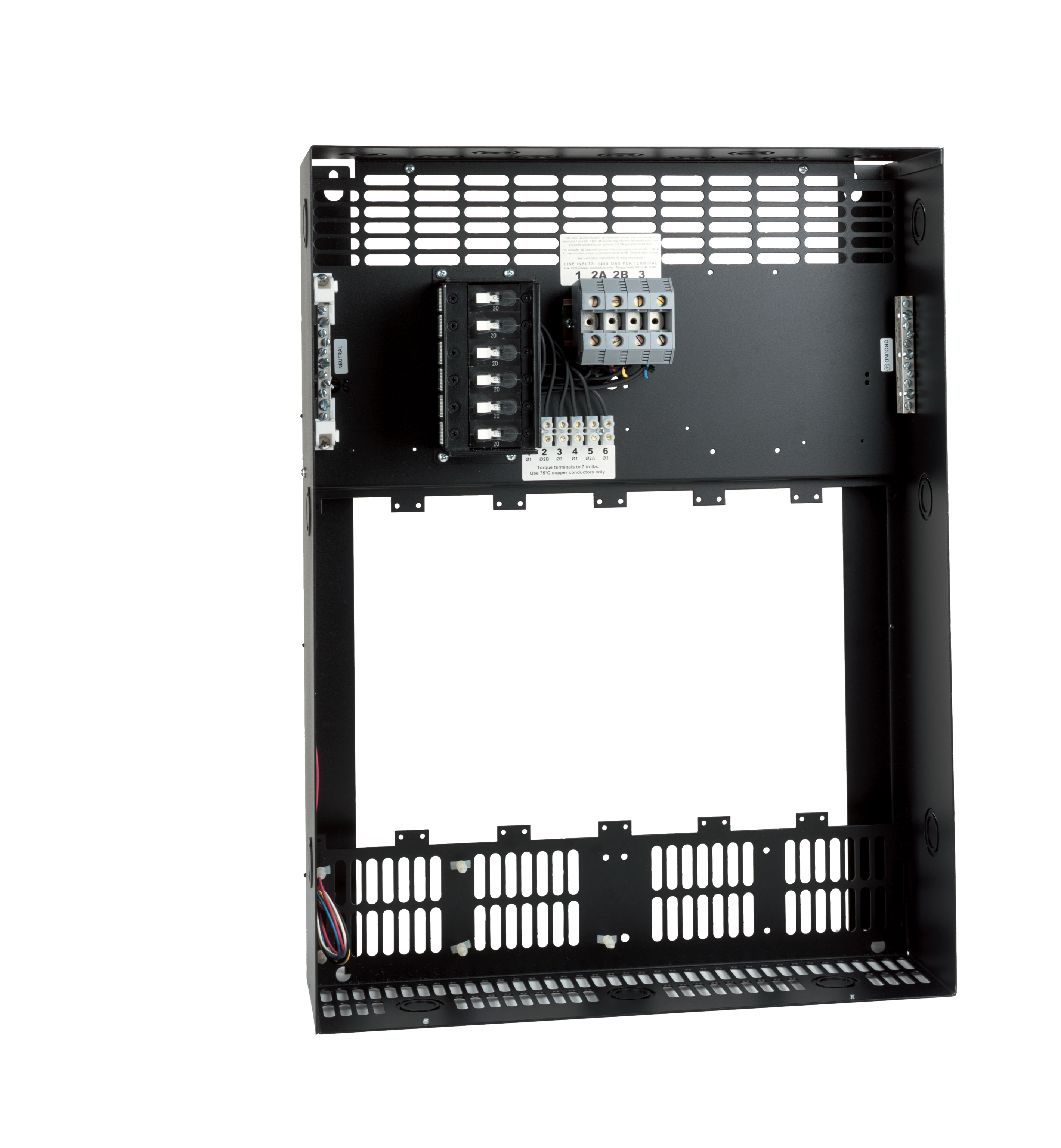

RDA-ENC6B

Radia 照明 6 格装置(含 6 个断路器)

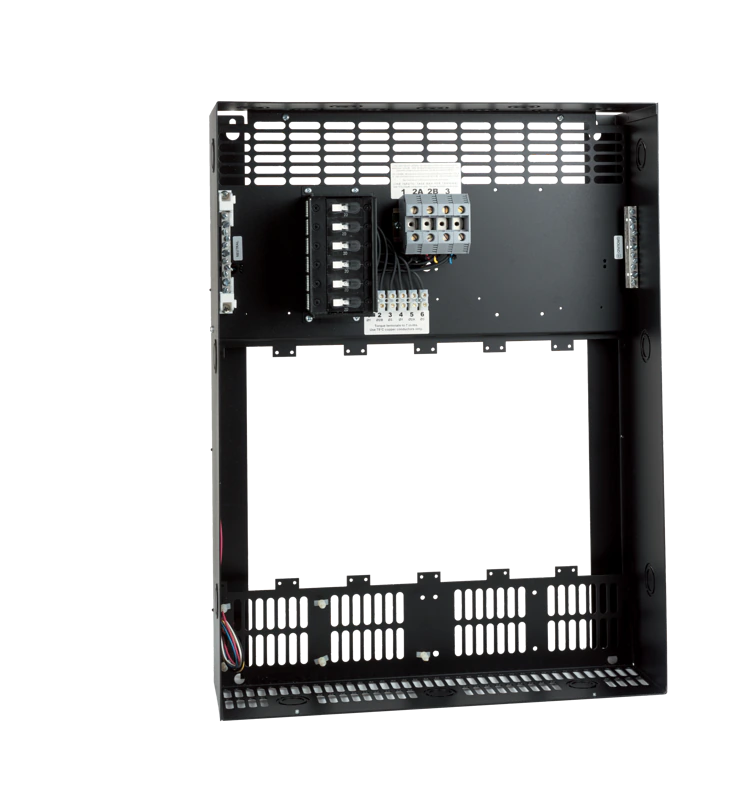

RDA-ENC6B
较大的图像

RDA-ENC6B 装置旨在牢固地安装 AMX 照明和 PROLink 控制器以及照明模块。此外,本产品还附带了 6 个断路器。本产品已通过 CE、UL 和 C-UL 认证。不仅具有用于多相接线的断路器和端子,而且还为 1/2"、3/4" 和 1" 导管提供 18 个敲落孔。

下载

  Version Language Size Uploaded
Manuals
file type icon Installation Sheet - Radia Lighting Enclosures with Breakers
updated: 7月 2018
    302.1 KB 7月 2018
file type icon Enclosure Worksheet Guide - Radia Lighting Control
updated: 7月 2018
    1.1 MB 7月 2018
file type icon Operation/Reference Guide - Radia Lighting Control System (Controller/Modules/Cards)
updated: 7月 2018
    826.7 KB 7月 2018
CAD Drawings
file type icon Spec. Drawing - RDA-ENC6B/12B Radia 6-Space Enclosure with Breakers, Mounting Dimensions (DXF)
updated: 7月 2018
    5.5 MB 7月 2018
file type icon Spec. Drawing - RDA-ENC6B/12B Radia 6-Space Enclosure with Breakers, Overall Dimensions and Knockout Locations (DWG)
updated: 7月 2018
    386.2 KB 7月 2018
file type icon Spec. Drawing - RDA-ENC6B/12B Radia 6-Space Enclosure with Breakers, Overall Dimensions and Knockout Locations (DXF)
updated: 7月 2018
    1.0 MB 7月 2018
file type icon Spec. Drawing - RDA-ENC6B/12B Radia 6-Space Enclosure with Breakers, Overall Dimensions and Knockout Locations (PDF)
updated: 7月 2018
    69.7 KB 7月 2018
file type icon Lighting Wiring Drawing - RDA-ENC6B/12B Input Terminal Block (DWG)
updated: 7月 2018
    84.6 KB 7月 2018
file type icon Lighting Wiring Drawing - RDA-ENC6B/12B Input Terminal Block (DXF)
updated: 7月 2018
    145.5 KB 7月 2018
file type icon Lighting Wiring Drawing - RDA-ENC6B/12B Input Terminal Block (PDF)
updated: 7月 2018
    82.4 KB 7月 2018
file type icon Lighting Wiring Drawing - RDA-ENC6B/12B Power Distribution (DWG)
updated: 7月 2018
    108.3 KB 7月 2018
file type icon Lighting Wiring Drawing - RDA-ENC6B/12B Power Distribution (DXF)
updated: 7月 2018
    211.4 KB 7月 2018
file type icon Lighting Wiring Drawing - RDA-ENC6B/12B Power Distribution (PDF)
updated: 7月 2018
    106.1 KB 7月 2018
file type icon Spec. Drawing - RDA-ENC6B/12B Radia 6-Space Enclosure with Breakers, Mounting Dimensions (DWG)
updated: 7月 2018
    2.0 MB 7月 2018
Data Sheets
file type icon Radia Lighting Enclosures
updated: 7月 2018
    1.0 MB 7月 2018
Quick Start Guides
file type icon Quick Start Guide - RDA-ENC6B Radia 6-Space Enclosure with 6 Breakers
version C, updated: 7月 2018
  146.2 KB 7月 2018

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

特点

  • 一张 RDC-PDC 调光卡可支持多相接线
  • 内含六个 20A 断路器和用于多相接线的端子
  • 提供了六个空间以放置 Radia 照明模块
  • 将 RDC-PDC 卡安装在专用的预接线隔室中
  • 提供了适于 1/2"、3/4" 和 1" 导管的 18 个敲落孔
  • 每个单元最多支持 18 个调光通道(3 个 RE-DM6)

性能

尺寸(高宽厚) 24" x 18" x 6" (60.7 cm x 45.7 cm x 15.2 cm)
Dimensions From Center Lines
  • A to B = 16.0" (40.6 cm)
  • B to C = 22.88" (58.1 cm)
重量 16.5 lbs (7.5 kg)
Configurations
  • ENC6B/120: 20 A Breakers
  • ENC6B/240: 10 A Breakers
线路输入
  • 140 A max per enclosure
  • Input 1 feeds channels 1, 4, 7, and 10
  • Input 2a feeds channels 5 and 11
  • Input 2b feeds channels 2 and 8
  • Input 3 feeds channels 3, 6, 9, and 12
  • Breakers are UL 489 listed 10,000 AIC, 100% Switching Duty, Hydraulic-Magnetic
Wiring
  • Maximum input wire #1/0 AWG (50mm²)
  • Maximum line input is 140 A (per enclosure )
  • Torque input wire to 44 in-lbs (5.0 N/m)
  • Wire stripping length: 0.67 inches (17 mm)
FG Numbers RDA-ENC6B
