RDA-ENC6B

Radia Lighting 6-Space Enclosure with 6 Breakers

RDA-ENC6B
Larger Images

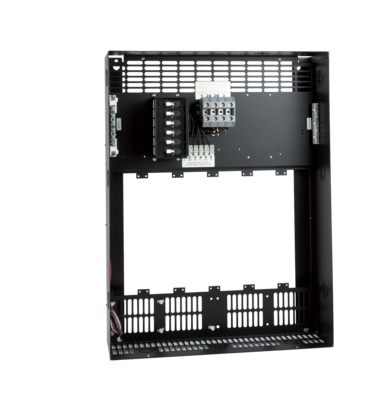

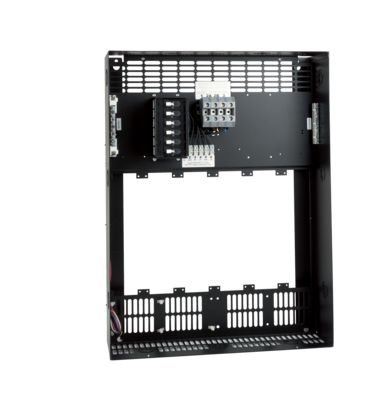

The RDA-ENC6B enclosure provide secure mounting for AMX Lighting and PROLink controllers, and lighting modules. The enclosure also contain 6 circuit breakers. This enclosure is CE, UL, and C-UL approved. It includes circuit breakers and terminals for multi-phase wiring. It also provides 18 knockouts for 1/2", 3/4", and 1" conduits.

Downloads

  Version Language Size Uploaded
Manuals
file type icon Installation Sheet - Radia Lighting Enclosures with Breakers
updated: Jul 2018
    302 KB Jul 2018
file type icon Enclosure Worksheet Guide - Radia Lighting Control
updated: Jul 2018
    1.13 MB Jul 2018
file type icon Operation/Reference Guide - Radia Lighting Control System (Controller/Modules/Cards)
updated: Jul 2018
    827 KB Jul 2018
CAD Drawings
file type icon Spec. Drawing - RDA-ENC6B/12B Radia 6-Space Enclosure with Breakers, Mounting Dimensions (DXF)
updated: Jul 2018
    5.49 MB Jul 2018
file type icon Spec. Drawing - RDA-ENC6B/12B Radia 6-Space Enclosure with Breakers, Overall Dimensions and Knockout Locations (DWG)
updated: Jul 2018
    386 KB Jul 2018
file type icon Spec. Drawing - RDA-ENC6B/12B Radia 6-Space Enclosure with Breakers, Overall Dimensions and Knockout Locations (DXF)
updated: Jul 2018
    1 MB Jul 2018
file type icon Spec. Drawing - RDA-ENC6B/12B Radia 6-Space Enclosure with Breakers, Overall Dimensions and Knockout Locations (PDF)
updated: Jul 2018
    69.7 KB Jul 2018
file type icon Lighting Wiring Drawing - RDA-ENC6B/12B Input Terminal Block (DWG)
updated: Jul 2018
    84.6 KB Jul 2018
file type icon Lighting Wiring Drawing - RDA-ENC6B/12B Input Terminal Block (DXF)
updated: Jul 2018
    145 KB Jul 2018
file type icon Lighting Wiring Drawing - RDA-ENC6B/12B Input Terminal Block (PDF)
updated: Jul 2018
    82.4 KB Jul 2018
file type icon Lighting Wiring Drawing - RDA-ENC6B/12B Power Distribution (DWG)
updated: Jul 2018
    108 KB Jul 2018
file type icon Lighting Wiring Drawing - RDA-ENC6B/12B Power Distribution (DXF)
updated: Jul 2018
    211 KB Jul 2018
file type icon Lighting Wiring Drawing - RDA-ENC6B/12B Power Distribution (PDF)
updated: Jul 2018
    106 KB Jul 2018
file type icon Spec. Drawing - RDA-ENC6B/12B Radia 6-Space Enclosure with Breakers, Mounting Dimensions (DWG)
updated: Jul 2018
    1.96 MB Jul 2018
Data Sheets
file type icon Radia Lighting Enclosures
updated: Jul 2018
    1.03 MB Jul 2018
Quick Start Guides
file type icon Quick Start Guide - RDA-ENC6B Radia 6-Space Enclosure with 6 Breakers
version C, updated: Jul 2018
  146 KB Jul 2018

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Features

  • Supports multi-phase wiring for one RDC-PDC Dimmer Card
  • Includes six 20A circuit breakers and terminals for multiphase wiring
  • Provides six spaces for Radia Lighting Modules
  • Mounts RDC-PDC card in dedicated, pre-wired compartment
  • 18 knockouts for 1/2", 3/4", and 1" conduit
  • Supports up to 18 dimming channels per unit (3 RE-DM6)

Specifications

Dimensions (HWD) 24" x 18" x 6" (60.7 cm x 45.7 cm x 15.2 cm)
Dimensions From Center Lines
  • A to B = 16.0" (40.6 cm)
  • B to C = 22.88" (58.1 cm)
Weight 16.5 lbs (7.5 kg)
Configurations
  • ENC6B/120: 20 A Breakers
  • ENC6B/240: 10 A Breakers
Line Inputs
  • 140 A max per enclosure
  • Input 1 feeds channels 1, 4, 7, and 10
  • Input 2a feeds channels 5 and 11
  • Input 2b feeds channels 2 and 8
  • Input 3 feeds channels 3, 6, 9, and 12
  • Breakers are UL 489 listed 10,000 AIC, 100% Switching Duty, Hydraulic-Magnetic
Wiring
  • Maximum input wire #1/0 AWG (50mm²)
  • Maximum line input is 140 A (per enclosure )
  • Torque input wire to 44 in-lbs (5.0 N/m)
  • Wire stripping length: 0.67 inches (17 mm)
FG Numbers RDA-ENC6B
