AMX NMX-DEC-N2221

Grandes images

The AMX SVSI N2000 Series utilizes JPEG2000 compression for HD, cinema-grade video distribution on the LAN for applications when video quality is top priority. The NMX-ENC-N2221 Decoder is used to decode streams back to DVI or HDMI format for display on any monitor. Pair with the NMX-ENC-N2121 to encode and distribute sources of almost any format onto an existing IP network making that stream available to any endpoint in the facility. With the ability to direct any source stream to any display, large, low-cost switching and distribution systems are simple to deploy without proprietary cabling or dedicated switching hardware.

The NMX-DEC-N2221 includes Local Play, allowing users to upload and save 8 playlists that can contain up to 64 jpeg or PNG files. When a video stream is lost, the stored images will play, preventing blank displays.

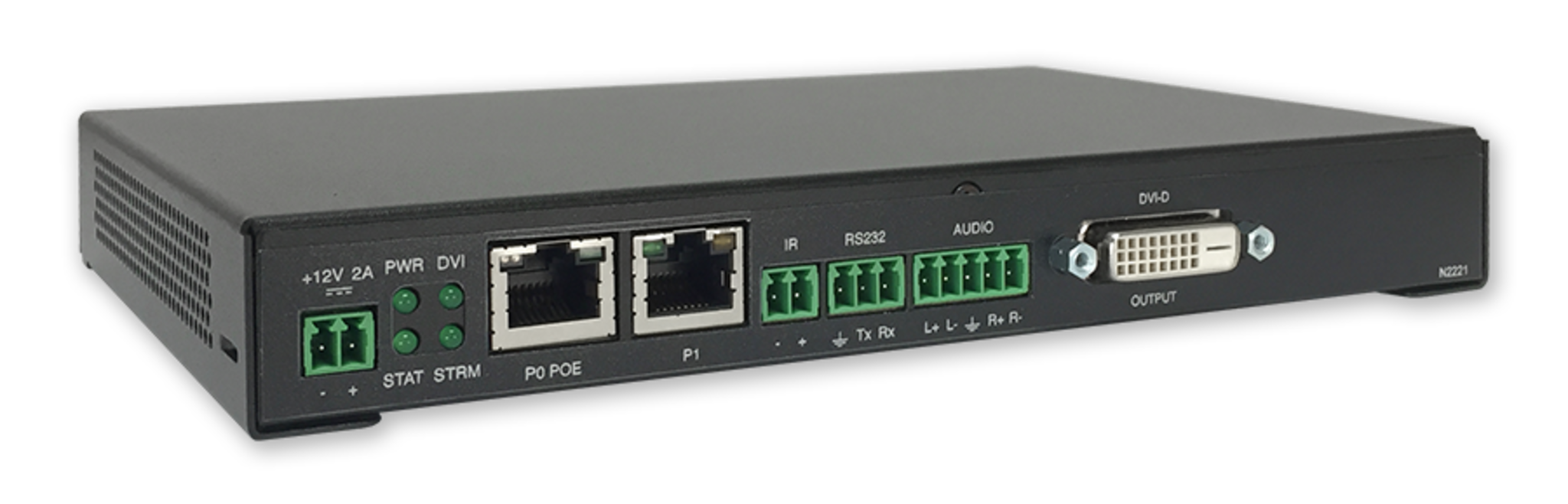

Includes IR, serial, balanced audio, and two network ports (one POE). Digital video output only.

plus de détails

The NMX-DEC-N2221 is the perfect solution for matrix switching and distribution of HD, cinema-grade quality video over LAN. Common applications include enterprise, house of worship, entertainment, and stadiums.

Téléchargements

Documents

	Taille	Téléchargé
Data Sheet mis à jour : avr. 2026	673 ko	avr. 2026

Manuals

	Taille	Téléchargé
User Manual - N2000 Series Encoders/Decoders mis à jour : juin 2020	10 Mo	juin 2020
NetLinx Control for N-Series Products Documentation Addendum mis à jour : oct. 2020	1,05 Mo	oct. 2020

Firmware

	Version	Taille	Téléchargé
SVSI N2x21 Encoder and Decoder Firmware Updater version 1.2.3c, publié : nov. 2021	1.2.3c	27,1 Mo	nov. 2021

Quick Start Guides

	Taille	Téléchargé
Quick Start Guide - N2121, N2211, N2221 Encoders/Decoders mis à jour : mars 2018	841 ko	mars 2018

Programming Guides

	Version	Taille	Téléchargé
API Command List - SVSI N1000/N2000 Series version F, mis à jour : juin 2020	F	277 ko	juin 2020

Product Guides

	Version	Taille	Téléchargé
Product Guide - N-Series Video Wall/Crop Limitation mis à jour : oct. 2020		72,8 ko	oct. 2020
N-Series Stream Compatibility mis à jour : juin 2024		431 ko	juin 2024
Product Guide - N-Series Minimum Network Requirement version D, mis à jour : oct. 2025	D	201 ko	oct. 2025

Install Guides

	Taille	Téléchargé
SVSI Networked AV - Pre-Implementation Guide mis à jour : juin 2024	1,17 Mo	juin 2024

Si l'un des liens ci-dessus affiche des caractères étranges dans votre navigateur, faites un clic droit sur le fichier pour l'enregistrer sur votre ordinateur.

Caractéristiques

Input and Output Scaling – Video scaling at either input or output allows seamless switching from any source, at any resolution, to any display or projector, while preserving video fidelity
Plug-n-Play – Auto-detect technology reduces installation and programming time
Power Over Ethernet (POE) – PoE eliminates the need for power supply
Infrared (IR) – Infrared emitter connection allows control of low-cost, IR-only display devices
Onboard Control – All N-Series encoders and decoders have on-board, built-in control capability via events that can trigger any number of TCP/UDP commands to other IP controllable devices
Unlimited Scalability
Two RJ45 Ports – Decoder features two RJ45 network ports (one PoE)
Stand Alone or Card – Available as a stand alone device, or card for use with NMX-ACC-N9206

Caractéristiques techniques

Digital Video Input	Network video over Ethernet via RJ45 port
Video Outputs	DVI-D, HDMI (HDMI is supported through a passive adapter)
Video Formats	DVI-D, HDMI (through adapter), Dual-Mode DisplayPort (DP++), HDCP content protection support, RGBHV, YPbPr; HDMI and Dual-Mode DisplayPort (DP++) are supported through a passive adapter
Output Resolutions	Supports most common HD up to 1080p60. See Data Sheet for details.
Audio Input Signal Types	Network video over Ethernet via RJ45
Audio Output Signal Types	Embedded audio on DVI-D or HDMI (through adapter)
HDMI Audio Formats	Stereo 2-channel, 5.1 audio, 7.1 audio
Analog Audio Formats	Stereo 2-channel
Audio Digital-to-Analog Conversation	16-bit 32 kHz, 44.1 kHz and 48 kHz
Latency	50 milliseconds for 720p60; 140 milliseconds for 1080p60. See Data Sheet for details.
Communications	Ethernet: 10/100/1000 Mbps, auto-negotiating, auto-sensing, full/half duplex, DHCP, Auto IP, and Static IP; HDMI: HDCP, EDID management. See Data Sheet for details.
