MXT-1000-NC
Eingestellt

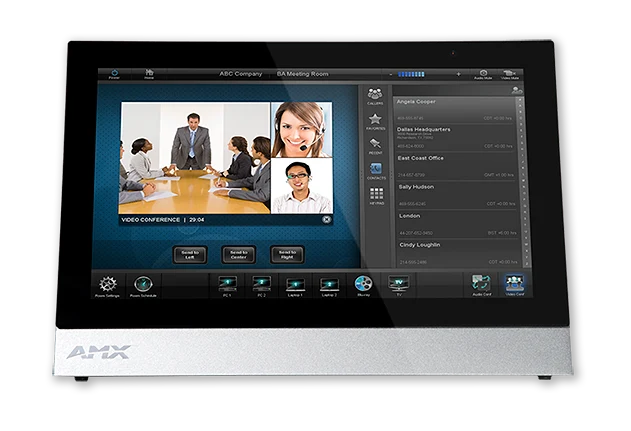

10.1" Modero X® Series G4 Tabletop Touch Panel (no Camera, no Microphone)

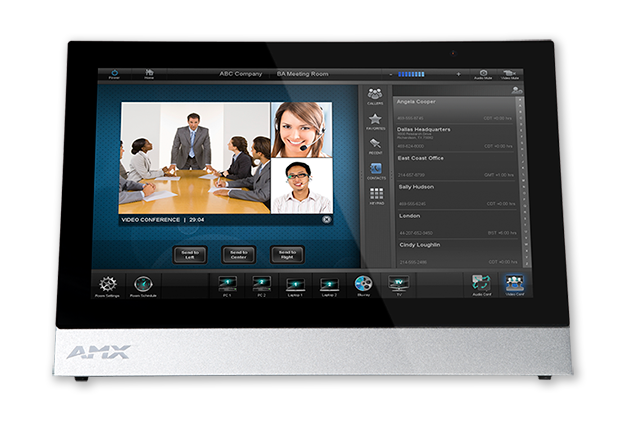

MXT-1000-NC_Front
Größere Bilder

The MXT-1000-NC / 10.1" Modero X® Series Tabletop Touch Panel (No Camera, No Microphone) is specifically designed to exclude the camera and microphone of the original Modero X Series panel to meet the security requirements of facilities that do not allow these capabilities.

The Modero X Series Touch Panels provide several industry firsts including a beautiful, capacitive multi-touch screen that provides users access to multiple applications with minimal navigation. The distinctive, low-profile design is engineered to sit perfectly on a table without obstructing views, and comes with a variety of mounting options for added security and convenience.

Mehr Details

The MXT-1000-NC is ideal ideal for federal, state, and local government or military facilities with strict security restrictions due to the storage, use, discussion or electronic processing of sensitive or classified information. It features modifications to support the added security measures necessary in secure environments such as sensitive compartmented information facilities, emergency operations centers or command headquarters. These modified panels give users robust functionality and capabilities while adhering to essential operational security guidelines.

Downloads

CAD Drawings
  Größe Hochgeladen
460 KB Okt 2020
1,46 MB Okt 2020
41,9 KB Okt 2020
Software
  Version Größe Hochgeladen
download icon for G4 Support Files G4 Support Files
Version 3.3.62, veröffentlicht: Jul 2018
3.3.62   35,7 MB Jul 2018
download icon for TPDesign4 TPDesign4
Version 3.3.674, veröffentlicht: Dez 2019
3.3.674   68,9 MB Dez 2019
Firmware
  Version Größe Hochgeladen
download icon for Modero X Series G4 Touch Panels Firmware Modero X Series G4 Touch Panels Firmware
Version 2.104.134, veröffentlicht: Mär 2018
2.104.134   47,2 MB Mär 2018
Quick Start Guides
  Größe Hochgeladen
212 KB Okt 2020
Certifications
  Größe Hochgeladen
245 KB Apr 2018
255 KB Apr 2018
255 KB Apr 2018
155 KB Apr 2018
Whitepapers
  Größe Hochgeladen
1,22 MB Apr 2018
Safety Sheets
  Größe Hochgeladen
103 KB Okt 2020
Device Modules
  Größe Hochgeladen
2,72 MB Okt 2020
Touch Panel Files
  Größe Hochgeladen
1,97 MB Jul 2018

Falls einer der obigen Links zu seltsamen Zeichen in Ihrem Browser führt, klicken Sie bitte mit der rechten Maustaste auf die Datei, um sie auf Ihrem Computer zu speichern.

Eigenschaften

  • Graphic Leaps & Bounds – The Modero X Series features intuitive UI functionality including: gesturing, swiping, dynamic reordering and enhanced animation capabilities
  • Perfect From Any Angle – Includes In-Plane Switching (IPS), the latest technology in popular tablet/mobile devices that delivers the widest viewing angles and the most accurate color reproduction on the market

*Product Update Notice: Near Field Communication™ (NFC) and High Frequency RFID (HF RFID) will no longer be included product features for all AMX Modero X® Series Touch Panels, shipping on or after October 1, 2017.

Spezifikationen

Display Size (WH) 9.9" x 6.7" (252 mm x 170 mm), 12.0" (304 mm) diagonal
Viewable Area (WH) 8.5" x 5.3" (217mm x 136mm), 10.1" (257mm) diagonal
Resolution 1280x800
Viewing Angle Vertical: ± 89°, Horizontal: ± 89°
Aspect Ratio 16:9
Touch Overlay Projected capacitive, multi-touch support, 3 simultaneous max
Graphics Engine AMX G4
Front Panel Components Light Sensor, Proximity Detector, Sleep button. See Data Sheet for details.
Power Consumption Full-On: 8 W
Temperature Range Operating: 32° F to 104° F (0° C to 40° C)
FG Numbers FG5968-24
