AMX MXT-2000XL-PAN-NC

Größere Bilder

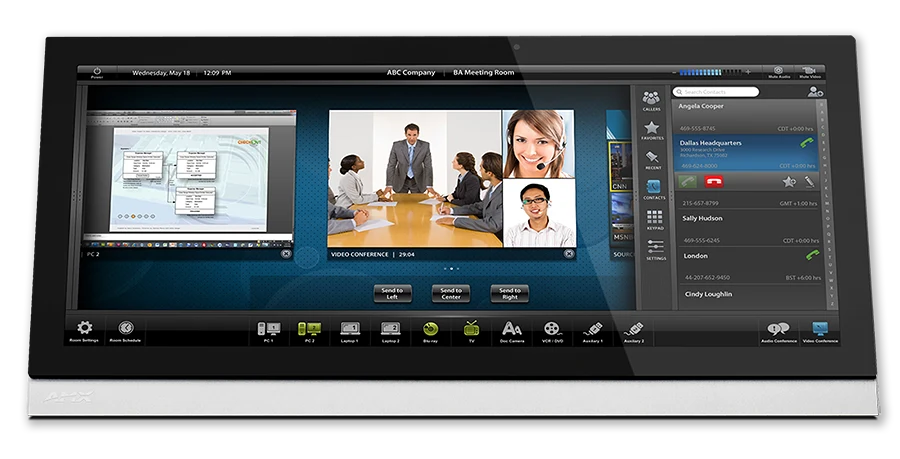

The MXT-2000XL-PAN-NC / 20.3" Modero X^® Series Panoramic Tabletop Touch Panel (No Camera, No Microphone) is specifically designed to exclude the camera, and microphone functions of the original Modero X Series panel to meet the security requirements of facilities that do not allow these capabilities.

The Modero X Series Touch Panels provide several industry firsts including a beautiful, panoramic capacitive multi-touch screen that provides users access to multiple applications with minimal navigation. The distinctive, low-profile design is engineered to sit perfectly on a table without obstructing views, and comes with a variety of mounting options for added security and convenience.

Mehr Details

The MXT-2000XL-PAN is ideal for federal, state, and local government or military facilities with strict security restrictions due to the storage, use, discussion or electronic processing of sensitive or classified information. The MXT-2000XL-PAN feature modifications to support the added security measures necessary in secure environments such as sensitive compartmented information facilities, emergency operations centers or command headquarters. These modified panels give users robust functionality and capabilities while adhering to essential operational security guidelines.

Downloads

CAD Drawings

	Größe	Hochgeladen
Mounting Specification - MXD-2000XL-PAN 20.3" Modero X Series Panoramic Wall Touch Panel (PDF) aktualisiert: Okt 2020	989 KB	Okt 2020
Pictorial Drawing - MXD-2000XL-PAN 20.3" Modero X Series Panoramic Wall Touch Panel (DXF) aktualisiert: Okt 2020	2,33 MB	Okt 2020
Pictorial Drawing - MXD-2000XL-PAN 20.3" Modero X Series Panoramic Wall Touch Panel (PDF) aktualisiert: Okt 2020	324 KB	Okt 2020
Pictorial Drawing - MXT-2000XL-PAN 20.3" Modero X Series Panoramic Tabletop Touch Panel (DXF) aktualisiert: Okt 2020	1,32 MB	Okt 2020
Pictorial Drawing - MXT-2000XL-PAN 20.3" Modero X Series Panoramic Tabletop Touch Panel (PDF) aktualisiert: Okt 2020	190 KB	Okt 2020

Software

	Version	Größe	Hochgeladen
G4 Support Files Version 3.3.62, veröffentlicht: Jul 2018	3.3.62	35,7 MB	Jul 2018
TPDesign4 Version 3.3.674, veröffentlicht: Dez 2019	3.3.674	68,9 MB	Dez 2019

Firmware

	Version	Größe	Hochgeladen
Modero X Series G4 Touch Panels Firmware Version 2.104.134, veröffentlicht: Mär 2018	2.104.134	47,2 MB	Mär 2018

Quick Start Guides

	Größe	Hochgeladen
Quick Start Guide - MXT-2000XL-PAN Modero X Series Panoramic Tabletop Touch Panel aktualisiert: Okt 2020	166 KB	Okt 2020

Certifications

	Größe	Hochgeladen
Modero X Series 19.4"/20.3" Touch Panels UL Certificate of Compliance aktualisiert: Apr 2018	417 KB	Apr 2018
Modero X Series 20.3" Touch Panel CE Declaration of Conformity aktualisiert: Apr 2018	255 KB	Apr 2018
Modero X Series 19.4"/20.3" Touch Panels IECEE CB Test Certificate aktualisiert: Apr 2018	125 KB	Apr 2018

Whitepapers

	Größe	Hochgeladen
Digital Media Capabilities of the Modero X Series Touch Panels aktualisiert: Apr 2018	1,22 MB	Apr 2018

Safety Sheets

	Größe	Hochgeladen
Safety Instructions - Modero X Series G4 Touch Panels aktualisiert: Okt 2020	103 KB	Okt 2020

Device Modules

	Größe	Hochgeladen
AMX Communications Application aktualisiert: Okt 2020	16,9 MB	Okt 2020
MET-ECOM/D Metreau Entry Communicator Device Module aktualisiert: Okt 2020	2,72 MB	Okt 2020

Touch Panel Files

	Größe	Hochgeladen
MXT/D-2000XL-PAN/PAN-NC Page Transitions Demo Touch Panel File (1920x800) aktualisiert: Jul 2018	3,92 MB	Jul 2018

Falls einer der obigen Links zu seltsamen Zeichen in Ihrem Browser führt, klicken Sie bitte mit der rechten Maustaste auf die Datei, um sie auf Ihrem Computer zu speichern.

Eigenschaften

Panoramic Control Surface – Combined with the new PanTastic UI, the panoramic touch panels take the user experience to a whole new level with an impressive control surface to perform activities much in the same way you use a computer – multi-tasking with dedicated spaces
Graphic Leaps & Bounds – The Modero X Series includes intuitive UI functionality including: gesturing, swiping, dynamic reordering and enhanced animation capabilities
Perfect From Any Angle – Includes In-Plane Switching (IPS), the latest technology in popular tablet/mobile devices that delivers the widest viewing angles and the most accurate color reproduction on the market

*Product Update Notice: Near Field Communication™ (NFC) and High Frequency RFID (HF RFID) will no longer be included product features for all AMX Modero X® Series Touch Panels, shipping on or after October 1, 2017.

Spezifikationen

Display Size (WH)	20.4" x 9.5" (519 mm x 242 mm), 21.3" (541 mm) diagonal
Viewable Area (WH)	18.7" x 7.8" (475 mm x 198 mm ), 20.3" (514 mm) diagonal
Resolution	1920x800
Viewing Angle	Vertical: ± 89°, Horizontal: ± 89°
Aspect Ratio	12:5
Touch Overlay	Projected capacitive, multi-touch support, 3 simultaneous max
Graphics Engine	AMX G4
Front Panel Components	Light Sensor, Proximity Detector, Sleep button. See Data Sheet for details.
Power Consumption	Full-On: 32W (12 VDC, 2.7 A)
Temperature Range	Operating: 32° F to 104° F (0° C to 40° C)
FG Numbers	FG5968-32
