NMX-DEC-N2424A Decoder
Arrêté

Décodeur JPEG 2000 4K60 4:4:4 et vidéo HDR sur IP, autonome avec POE+, KVM et AES-67

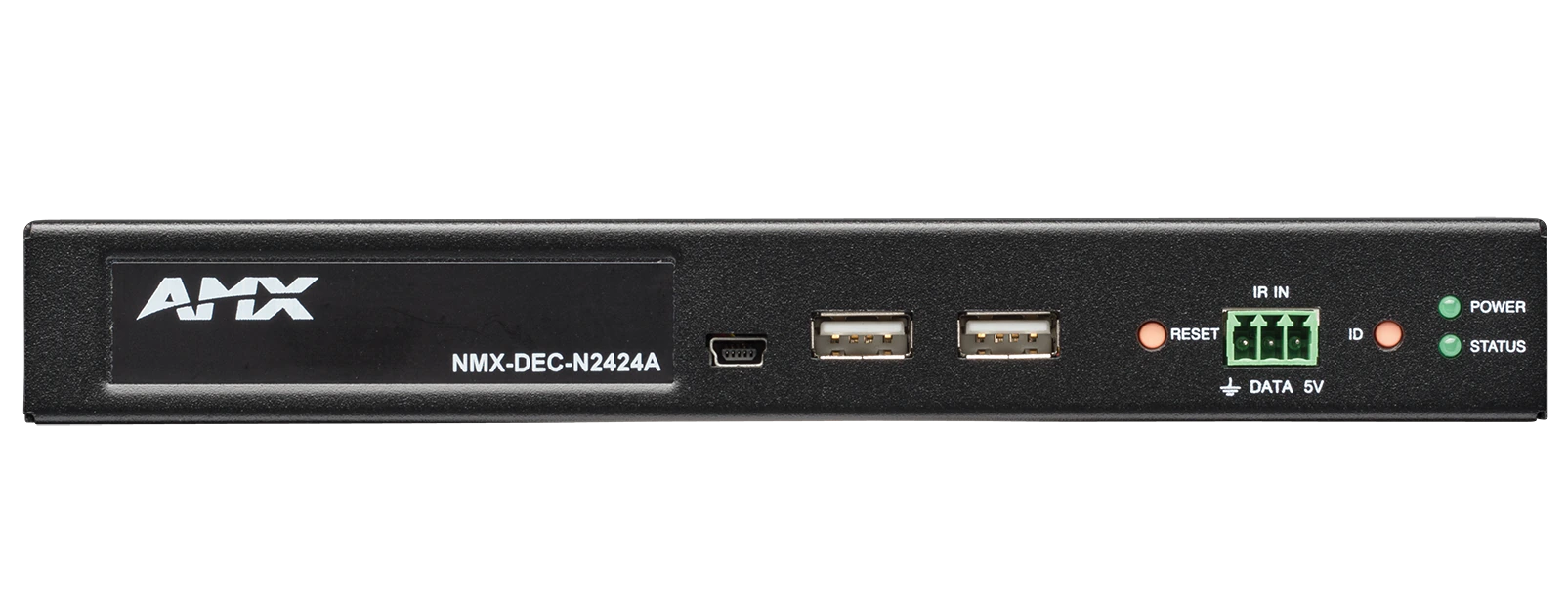

NMX-DEC-N2424A_Front
Grandes images

Produits de substitution

  • NMX-DEC-N2622S

    NMX-DEC-N2622S

    Décodeur Multi-Codec 4K60 MWC/Dante AV-A et 1080p H.26x

Utilizing JPEG2000 encoding, N2400 Series encoders and decoders deliver cinema quality video with sub-frame latency. These products support 4K60 4:4:4, HDMI 2.0, HDCP 2.2, and HDR, allowing end users to realize the full potential of their source and display devices. To preserve the security of the network, N2400 supports enterprise security features such as Active Directory integration and 802.1X support. Operating on standard 1 Gbps networks and requiring only POE+ power, N2400 encoders and decoders provide the most scalable 4K60 4:4:4 solution.

Like other SVSI devices, N2400 Series encoders and decoders leverage the diverse control APIs, software, and web interfaces which, through years of field experience, have been optimized to provide a simple, yet flexible solution.

plus de détails

4K60 video is popular in casinos, sporting arenas, museums and other venues where high-resolution, large-scale video distribution is required. The N2400 Series is also perfect for lecture halls, university campus distribution, active learning spaces, or anywhere viewers with a discerning eye will be expecting the beauty of 4K60.

Téléchargements

Manuals
  Taille Téléchargé
file type icon Instruction Manual – SVSI N24xx Series
mis à jour : déc. 2020
6,74 Mo déc. 2020
CAD Drawings
  Taille Téléchargé
1,35 Mo oct. 2020
161 ko oct. 2020
Software
  Version Taille Téléchargé
MacOS download icon SVSI N-Able Mac
version 5.2.2, publié : avr. 2025
5.2.2   219 Mo avr. 2025
Windows download icon SVSI N-Able PC
version 5.2.2, publié : avr. 2025
5.2.2   116 Mo avr. 2025
download icon for Crestron Module - AMX SVSI Crestron Module - AMX SVSI
version 1.0.1, publié : mai 2025
1.0.1   4,87 Mo mai 2025
download icon for Q-SYS Plugin - AMX SVSI Q-SYS Plugin - AMX SVSI
version 1.6, publié : mai 2025
1.6   2,74 Mo mai 2025
Firmware
  Version Taille Téléchargé
download icon for SVSI N24xx Series Encoder and Decoder Firmware Updater SVSI N24xx Series Encoder and Decoder Firmware Updater
version 1.5.104, publié : mars 2023
1.5.104   62,5 Mo mars 2023
Certifications
  Taille Téléchargé
file type icon SVSI N24xx IECEE CB Certificate
mis à jour : oct. 2020
201 ko oct. 2020
file type icon SVSI N24xx UL Certificate of Compliance
mis à jour : oct. 2020
312 ko oct. 2020
file type icon SVSI N24xx CE Declaration of Conformity
mis à jour : oct. 2020
363 ko oct. 2020
Install Guides
  Taille Téléchargé
1,17 Mo juin 2024
Product Guides
  Version Taille Téléchargé
file type icon N-Series Stream Compatibility
mis à jour : juin 2024
  431 ko juin 2024
file type icon NET-SVSI-MIB.txt
mis à jour : août 2021
  94,5 ko août 2021
  72,8 ko oct. 2020
file type icon Product Guide - N-Series Minimum Network Requirement
version D, mis à jour : oct. 2025
201 ko oct. 2025
Programming Guides
  Version Taille Téléchargé
file type icon Zoom Room Controls – SVSI Decoder Configuration Example
version 0.1.5, mis à jour : sept. 2021
0.1.5  132 ko sept. 2021
Data Sheets
  Version Taille Téléchargé
file type icon Data Sheet – NMX-DEC-N2424A
version E, mis à jour : fév. 2021
263 ko fév. 2021
Quick Start Guides
  Taille Téléchargé
file type icon Quick Start Guide – NMX-DEC-N2424A
mis à jour : oct. 2020
298 ko oct. 2020
Device Modules
  Taille Téléchargé
file type icon Duet Control Module – N2424A
mis à jour : nov. 2023
nov. 2023

Si l'un des liens ci-dessus affiche des caractères étranges dans votre navigateur, faites un clic droit sur le fichier pour l'enregistrer sur votre ordinateur.

Caractéristiques

  • 4K60 4:4:4 Support – The N2400 Series can be used to support today’s 4K content without modifying the color space or reducing the frame rate.
  • High Dynamic Range (HDR) Support – Support for HDR10
  • HDMI 2.0 and HDCP 2.2 Support – By incorporating HDMI 2.0 and HDCP 2.2, the N2400 Series products are compatible with all the latest 4K sources and displays.
  • Advanced Security including Active Directory, 802.1x, SSL/TLS and HTTPS – Satisfies enterprise network security requirements
  • Operates over Gigabit Ethernet – Distribute video over cost effective Gigabit Ethernet switches using category cable already installed in a location. This also allows for greater switching scalability, compared to a solution that depends on 10 GbE.
  • Sub-Frame Latency – N2400 Series encoders and decoders are able to deliver cinema quality video with less than a single frame of latency.
  • PoE+ Powered – The N2400 Series can operate using PoE+ power from the network switch, simplifying installation and reducing installation cost.
  • Native NetLinx – Simplifies integration with AMX control to reduce the cost of installation

Caractéristiques techniques

Video Inputs Network video over Ethernet via RJ45 1G port
Video Outputs HDMI, DVI-D (through adapter)
Video Resolution Support HDMI and DVI (Progressive)

Matched to inputs or scaled 1280x720@50Hz (720p50), 1280x720@59.94Hz (720p59.94), 1280x720@60Hz (720p60), 1280x800@60Hz, 1920x1080@50Hz (1080p50), 1920x1080@59.94Hz (1080p59.94), 1920x1080@60Hz (1080p60), 1920x1200@60Hz, 3840x2160p@30Hz (2160p30), 3840x2160p@60Hz (2160p60), 3440x1440@50Hz, 3440x1440@60Hz, 3840x1080@60Hz, 4096x2160@30Hz, 4096x2160@60Hz
Audio Inputs Network PCM and AES67 audio over Ethernet via RJ45
Audio Outputs Embedded audio on HDMI or DVI-D (through adapter),
5-pin terminal Phoenix connector which provides user-selectable balanced/unbalanced stereo
Ports +12V 3A DC power input, (P0) Gigabit Ethernet port with POE+ support, (P1) Gigabit SFP port (SFP fiber transceiver or direct attach cable not included), (IR) 2-pin 3.5mm screw terminal, (RS232) 3-pin 3.5mm screw terminal, (Audio) 5-pin 3.5mm screw terminal, HDMI video output, USB Mini B control input (front panel), 2 USB Type A control inputs (front panel), (IR IN) 3-pin 3.5mm screw terminal (front panel)
Environmental Temperature - 32° to 104°F (0° to 40°C)
Humidity - 10% to 90% RH (non-condensing)
Heat Dissipation - Up to ~102 BTU/hr
Regulatory Compliance FCC, CE, UL and NTRL
Dimensions (H x W x D) 1.05” x 7.888” x 5” (2.67 cm x 20.04 cm x 12.7 cm)
Weight 1.54 lbs (0.68 kg)
FG Numbers FGN2424A-SA
