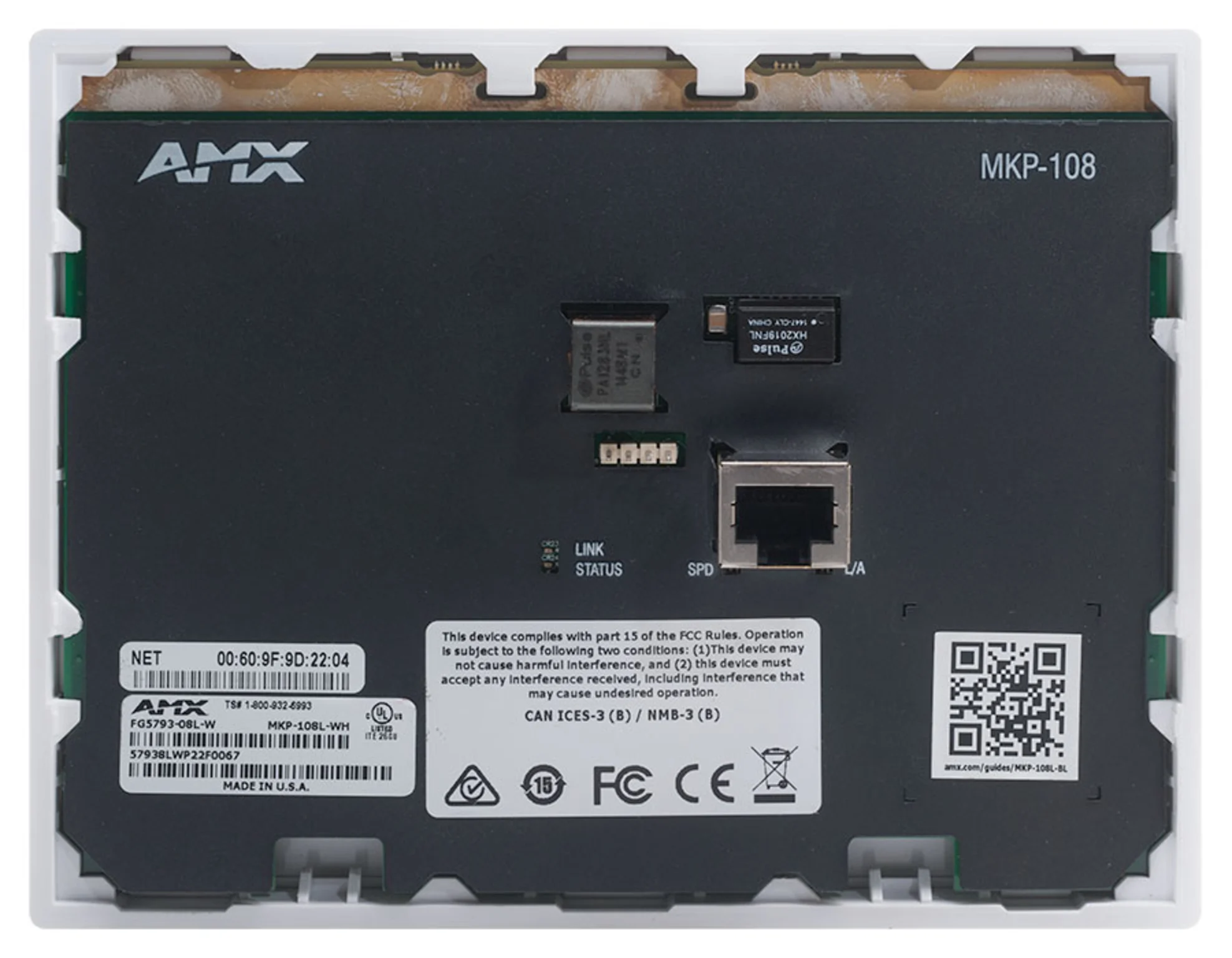

AMX MKP-108

Grandes images

The MKP-108 / 8-Button Massio Keypad with Knob is a keypad-only version of the MCP-108 Massio ControlPad. The MKP-108 provides sleek Massio styling in any room, serving as a second user interface or as a primary UI in spaces that already contain a separate controller. The MKP-108 includes large, easy-to-read buttons and a smooth, responsive dial/knob in a stylish design that makes it simple for users to manage complex tasks with a single button press during meetings or classes. The Keypad connects to the controller via Ethernet, which simplifies installation and connectivity.

plus de détails

Ideal for small spaces utilizing NetLinx control, providing the ability to utilize customized code and additional ports of NetLinx Controllers, while maintaining a consistent user experience as the RPM-enabled Massio ControlPads.
Perfect for Massio rooms requiring a second user interface in the same form factor to act as a client keypad to the Massio ControlPad.

Téléchargements

Documents

	Taille	Téléchargé
Data Sheet mis à jour : avr. 2026	329 ko	avr. 2026

Manuals

	Taille	Téléchargé
Instruction Manual - Massio ControlPads and Keypads mis à jour : mars 2018	1,03 Mo	mars 2018
Massio ControlPads Custom Button Labeling Guide mis à jour : déc. 2018	1,34 Mo	déc. 2018

CAD Drawings

	Taille	Téléchargé
Pictorial Drawing - MKP-108 Massio 8-Button Keypad (PDF) mis à jour : oct. 2020	122 ko	oct. 2020
Pictorial Drawing - MKP-108 Massio 8-Button Keypad (DXF) mis à jour : oct. 2020	1,09 Mo	oct. 2020
Pictorial Drawing - MKP-108 Massio 8-Button Keypad (DWG) mis à jour : oct. 2020	225 ko	oct. 2020

BIM Objects

	Taille	Téléchargé
MKP-108 - BIM Object mis à jour : août 2019		août 2019

Firmware

	Version	Taille	Téléchargé
Keypads with Ethernet Firmware version 1.2.33, publié : juin 2020	1.2.33	300 ko	juin 2020

Safety Sheets

	Taille	Téléchargé
Safety Instructions - Massio ControlPads and Keypads mis à jour : mars 2018	84,8 ko	mars 2018

Quick Start Guides

	Taille	Téléchargé
Quick Start Guide - MKP-108 mis à jour : nov. 2021	379 ko	nov. 2021

Si l'un des liens ci-dessus affiche des caractères étranges dans votre navigateur, faites un clic droit sur le fichier pour l'enregistrer sur votre ordinateur.

Caractéristiques

Consistent Massio Aesthetics & Form Factor – Provides consistent look-and-feel in existing installations with Massio, with the same models and sizes as the Massio ControlPads
Massio Styling in Customized Rooms – Provides Massio-style UI in rooms that require a separate controller
Connects Via Standard Protocols (PoE) – Simplifies cabling and installation by minimizing cable runs and eliminates the need for power at the keypad location

Caractéristiques techniques

Dimensions (HWD)	4 11/16" x 6" x 1" (119 mm x 152.5 mm x 26 mm)
Weight	Approximately .41 lbs (.19 kg)
Mounting	Mount onto standard 2 gang US, UK, or EU back boxes
Power Consumption	Typical: 5 Watts, Voltage, DC (Typical): PoE (37V-57V), Voltage DC Range: 37 V-57 V per 802.3af spec, Power Connector: (1) RJ-45 Ethernet
Memory	Flash: 4 GB, Memory Card: 4 GB SD, DDRAM: 256 MB
Program Port	(1) USB Mini-B, USB
ID Pushbutton	Reset factory settings, reset factory image, toggle between DHCP or static IP addressing mode
FG Numbers	FG5793-08L-W (Landscape, White) FG5793-08L-BL (MKP-108L-B, Landscape, Black)
JITC Status	Approved - 04/2023
