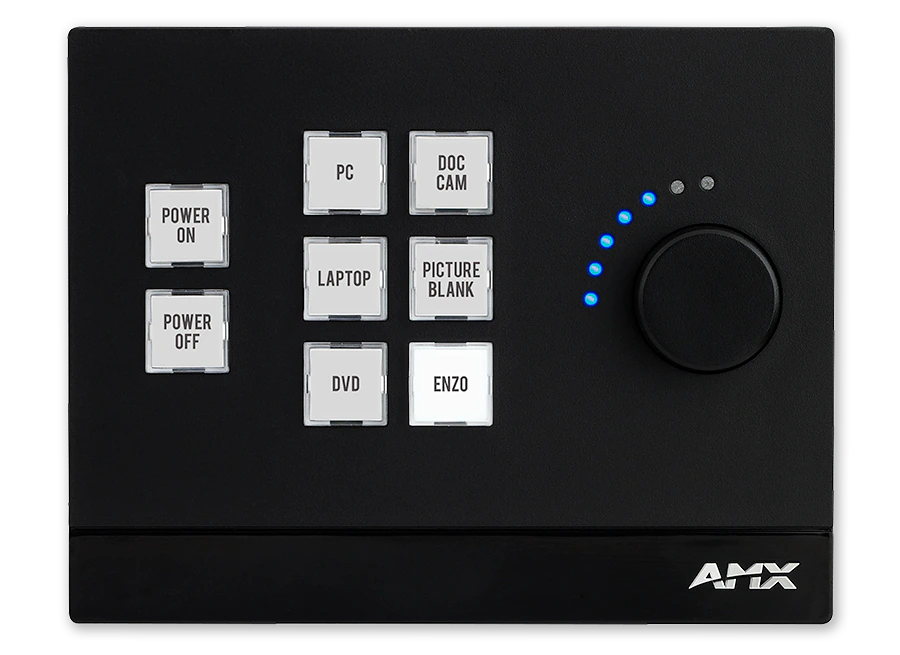

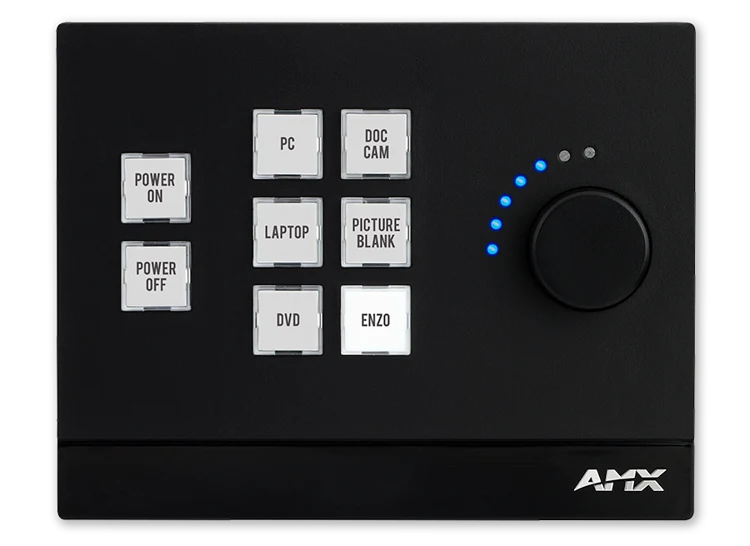

The MKP-108 / 8-Button Massio Keypad with Knob is a keypad-only version of the MCP-108 Massio ControlPad. The MKP-108 provides sleek Massio styling in any room, serving as a second user interface or as a primary UI in spaces that already contain a separate controller. The MKP-108 includes large, easy-to-read buttons and a smooth, responsive dial/knob in a stylish design that makes it simple for users to manage complex tasks with a single button press during meetings or classes. The Keypad connects to the controller via Ethernet, which simplifies installation and connectivity.
Larger Images
Common Applications
- Ideal for small spaces utilizing NetLinx control, providing the ability to utilize customized code and additional ports of NetLinx masters, while maintaining a consistent user experience as the RPM-enabled Massio ControlPads.
- Perfect for Massio rooms requiring a second user interface in the same form factor to act as a slave keypad to the Massio ControlPad.
Documentation
-
Data Sheet
[277 KB]
-
Instruction Manual - Massio ControlPads and Keypads
[1.03 MB]
-
Safety Instructions - Massio ControlPads and Keypads
[84.8 KB]
-
Pictorial Drawing - MKP-108 Massio 8-Button Keypad (PDF)
[122 KB]
-
Pictorial Drawing - MKP-108 Massio 8-Button Keypad (DXF)
[1.09 MB]
-
Pictorial Drawing - MKP-108 Massio 8-Button Keypad (DWG)
[225 KB]
-
Massio ControlPads Custom Button Labeling Guide
[1.34 MB]
-
MKP-108 - BIM Object
Downloads
| Version | Language | Size | Uploaded | |
| Data Sheet | 277 KB | Jul 06, 2018 | ||
Manuals | ||||
|
Instruction Manual - Massio ControlPads and Keypads
|
1.03 MB | Mar 29, 2018 | ||
|
Massio ControlPads Custom Button Labeling Guide
|
1.34 MB | Dec 19, 2018 | ||
CAD Drawings | ||||
|
Pictorial Drawing - MKP-108 Massio 8-Button Keypad (PDF)
|
122 KB | Apr 09, 2018 | ||
|
Pictorial Drawing - MKP-108 Massio 8-Button Keypad (DXF)
|
1.09 MB | Apr 09, 2018 | ||
|
Pictorial Drawing - MKP-108 Massio 8-Button Keypad (DWG)
|
225 KB | Apr 09, 2018 | ||
Bim Objects | ||||
|
MKP-108 - BIM Object
|
Aug 12, 2019 | |||
Software | ||||
|
Keypads with Ethernet Firmware
|
1.2.14 | 312 KB | Mar 15, 2018 | |
Safety Sheets | ||||
|
Safety Instructions - Massio ControlPads and Keypads
|
84.8 KB | Mar 29, 2018 | ||
If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.
Features
- Consistent Massio Aesthetics & Form Factor – Provides consistent look-and-feel in existing installations with Massio, with the same models and sizes as the Massio ControlPads
- Massio Styling in Customized Rooms – Provides Massio-style UI in rooms that require a separate controller
- Connects Via Standard Protocols (PoE) – Simplifies cabling and installation by minimizing cable runs and eliminates the need for power at the keypad location
Specifications
| Dimensions (HWD) | 4 11/16" x 6" x 1" (119 mm x 152.5 mm x 26 mm) |
| Weight | Approximately .41 lbs (.19 kg) |
| Mounting | Mount onto standard 2 gang US, UK, or EU back boxes |
| Power Consumption | Typical: 5 Watts, Voltage, DC (Typical): PoE (37V-57V), Voltage DC Range: 37 V-57 V per 802.3af spec, Power Connector: (1) RJ-45 Ethernet |
| Memory | Flash: 4 GB, Memory Card: 4 GB SD, DDRAM: 256 MB |
| Program Port | (1) USB Mini-B, USB |
| ID Pushbutton | Reset factory settings, reset factory image, toggle between DHCP or static IP addressing mode |
| FG Numbers | FG5793-08L-W (Landscape, White) |
Recommended Accessories
-
NXA-ENET8-POE+
Gigabit PoE Ethernet Switch -
PS-POE-AF-TC
PoE Injector, 802.3AF Compliant -
CBL-ETH-FL2
Cat6 Ethernet Cable
NOTE: The most current and complete specifications for this product are found in the data sheet. Specifications are subject to change.
