AMX MXD-1000

Grandes images

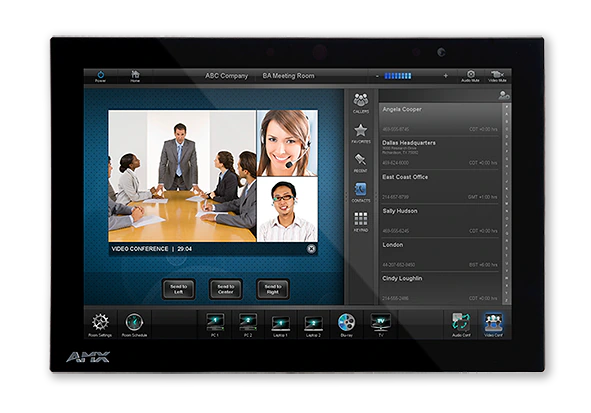

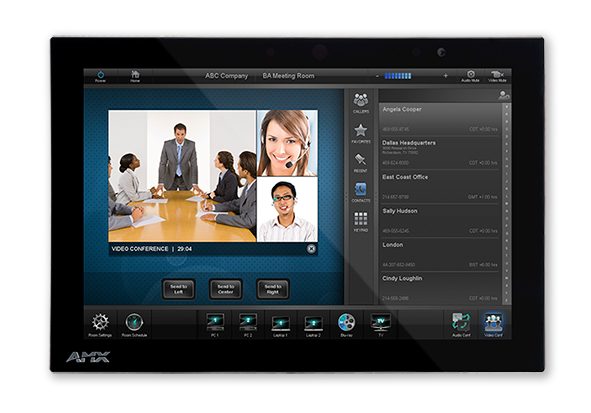

The MXD-1000 / 10.1" Modero X^® Series Wall Mount Touch Panel is a premium user interface designed for dedicated room control or scheduling. This elegantly-styled touch panel provides fast and smooth animations and transitions, along with elegant styling that looks great in any setting.

The Modero X Series Touch Panels provide several industry firsts including a beautiful, capacitive multi-touch screen that provides users access to multiple applications with minimal navigation. The distinctive appearance will complement even the most sophisticated meeting facilities and homes, with a variety of mounting options for added security and convenience.

plus de détails

The MXD-1000 is ideal for boardrooms, conference rooms or auditoriums where a panoramic control surface is needed to provide access to multiple functions simultaneously while remaining elegantly unobtrusive.
In Higher Education, the MXD-1000 is ideal for lecture halls, auditoriums, performing arts theaters and boardrooms that require extensive control capabilities.
In residences, it is perfect for kitchens, bedrooms or home offices where it can be used to manage systems throughout the home.
The MXD-1000 can be used as a scheduling panel for high-end meeting rooms and auditoriums.
All Modero X Series Wall Mount panels are ideal for reception areas or other gathering places for displaying master calendars and other information.

Téléchargements

CAD Drawings

	Taille	Téléchargé
Pictorial Drawing - MXD-1000-P, 10.1" Modero X Series Portrait Wall Mount Touch Panel (PDF) mis à jour : oct. 2020	207 ko	oct. 2020
Pictorial Drawing - MXD-1000-P, 10.1" Modero X Series Portrait Wall Mount Touch Panel (DXF) mis à jour : oct. 2020	5,99 Mo	oct. 2020
Pictorial Drawing - MXD-1000-P, 10.1" Modero X Series Portrait Wall Mount Touch Panel (DWG) mis à jour : oct. 2020	1,63 Mo	oct. 2020
Pictorial Drawing - MXD-1000-L, 10.1" Modero X Series Landscape Wall Mount Touch Panel (PDF) mis à jour : oct. 2020	206 ko	oct. 2020
Pictorial Drawing - MXD-1000-L, 10.1" Modero X Series Landscape Wall Mount Touch Panel (DXF) mis à jour : oct. 2020	17,7 Mo	oct. 2020
Pictorial Drawing - MXD-1000-L, 10.1" Modero X Series Landscape Wall Mount Touch Panel (DWG) mis à jour : oct. 2020	4,76 Mo	oct. 2020

BIM Objects

	Taille	Téléchargé
MXD-1000 - BIM Object mis à jour : août 2019		août 2019

Software

	Version	Taille	Téléchargé
G4 Support Files version 3.3.62, publié : juil. 2018	3.3.62	35,7 Mo	juil. 2018
TPDesign4 version 3.3.674, publié : déc. 2019	3.3.674	68,9 Mo	déc. 2019

Firmware

	Version	Taille	Téléchargé
Modero X Series G4 Touch Panels Firmware version 2.104.134, publié : mars 2018	2.104.134	47,2 Mo	mars 2018

Quick Start Guides

	Taille	Téléchargé
Quick Start Guide - MXD-1000 Modero X Series Wall/Flush Mount Touch Panel mis à jour : oct. 2020	363 ko	oct. 2020

Whitepapers

	Taille	Téléchargé
Digital Media Capabilities of the Modero X Series Touch Panels mis à jour : avr. 2018	1,22 Mo	avr. 2018

Certifications

	Taille	Téléchargé
Modero X Series 7"/10.1" Touch Panels IECEE CB Test Certificate mis à jour : avr. 2018	155 ko	avr. 2018
Modero X Series 10.1" Touch Panel CE Declaration of Conformity mis à jour : avr. 2018	255 ko	avr. 2018
Modero X Series 7"/10.1" Touch Panels UL Certificate of Compliance mis à jour : avr. 2018	245 ko	avr. 2018

Safety Sheets

	Taille	Téléchargé
Safety Instructions - Modero X Series G4 Touch Panels mis à jour : oct. 2020	103 ko	oct. 2020

Device Modules

	Taille	Téléchargé
Panel-to-Panel Video Chat Module mis à jour : oct. 2020	7,46 Mo	oct. 2020
Modero X Residential Demo mis à jour : oct. 2020	52,8 Mo	oct. 2020
Near Field Communications (NFC) Module mis à jour : oct. 2020	4,81 Mo	oct. 2020
MET-ECOM/D Metreau Entry Communicator Device Module mis à jour : oct. 2020	2,72 Mo	oct. 2020
AMX Communications Application mis à jour : oct. 2020	16,9 Mo	oct. 2020

Touch Panel Files

	Taille	Téléchargé
MXT/D-1000 Landscape Demo Touch Panel File (1280x800) mis à jour : juil. 2018	12,2 Mo	juil. 2018
MXD-1000 Portrait Demo Touch Panel File (800x1920) mis à jour : juil. 2018	3,93 Mo	juil. 2018
MXT/D-1000 Page Transitions Demo Touch Panel File (1280x800) mis à jour : juil. 2018	1,97 Mo	juil. 2018
MXD-1000 RMS Scheduling Touch Panel File (800x1280) mis à jour : oct. 2020	2,64 Mo	oct. 2020

Si l'un des liens ci-dessus affiche des caractères étranges dans votre navigateur, faites un clic droit sur le fichier pour l'enregistrer sur votre ordinateur.

Caractéristiques

Graphic Leaps & Bounds – The Modero X Series includes intuitive UI functionality including: gesturing, swiping, dynamic reordering and enhanced animation capabilities
Perfect From Any Angle – Includes In-Plane Switching (IPS), which delivers the widest viewing angles and the most accurate color reproduction on the market
Generous Mounting Options – In addition to wall mount, you can mount the 10.1" Modero X Series Landscape Wall/Flush Mount Touch Panel directly to an equipment rack using the optional MXA-RMK-10 Modero X Series Rack Mount Kit (FG5969-62)

*Product Update Notice: Near Field Communication™ (NFC) and High Frequency RFID (HF RFID) will no longer be included product features for all AMX Modero X® Series Touch Panels, shipping on or after October 1, 2017.

Caractéristiques techniques

Display Size (WH)	Landscape: 9.9" x 6.7" (252 mm x 170 mm), 12.0" (304 mm) diagonal, Portrait: 6.7" x 9.9" (170 mm x 252 mm), 12.0" (304 mm) diagonal
Viewable Area (WH)	Landscape: 8.5" x 5.3" (217mm x 136mm), 10.1" (257mm) diagonal, Portrait: 5.3" x 8.5" (136 mm x 217 mm), 10.1" (257mm) diagonal
Resolution	Landscape: 1280x800, Portrait: 800x1280
Viewing Angle	Vertical: ± 89°, Horizontal: ± 89°
Aspect Ratio	Landscape: 16:9, Portrait: 9:16
Touch Overlay	Projected capacitive, multi-touch support, 3 simultaneous max
Graphics Engine	AMX G4
Front Panel Components	Light Sensor, Proximity Detector, Camera, LED Indicators, Sleep button. See Data Sheet for details.
Power Consumption	Full-On: 8 W
Temperature Range	Operating: 32° F to 104° F (0° C to 40° C)
FG Numbers	FG5968-07 (Portrait) FG5968-13 (Landscape)
