AMX MXD-1000-NC

Grandes images

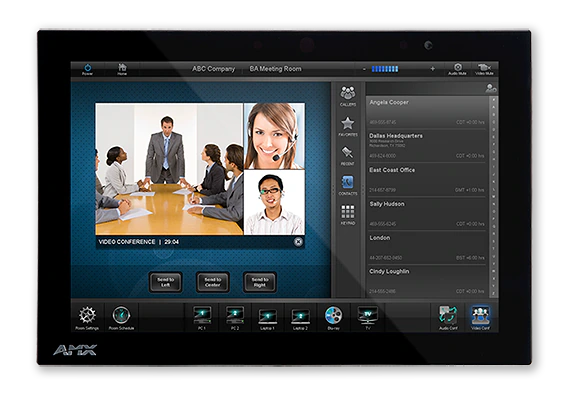

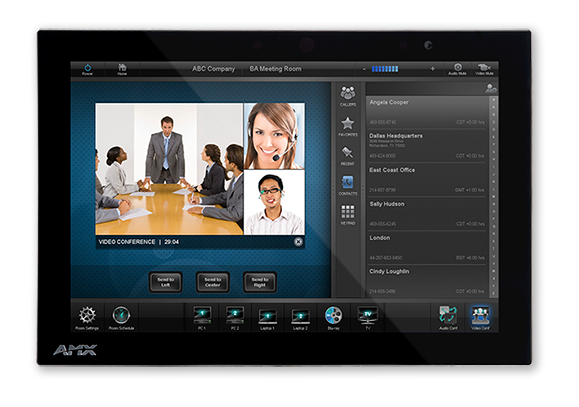

The MXD-1000-NC / 10.1" Modero X^® Series Wall Mount Touch Panel (No Camera, No Microphone) is specifically designed to exclude the camera and microphone functions of the original Modero X Series panel to meet the security requirements of facilities that do not allow these capabilities.

The Modero X Series Touch Panels provide several industry firsts including a beautiful, capacitive multi-touch screen that provides users access to multiple applications with minimal navigation. The distinctive, low-profile design is engineered to sit perfectly on a table without obstructing views, and comes with a variety of mounting options for added security and convenience.

plus de détails

The MXD-1000-L-NC is ideal for federal, state, and local government or military facilities with strict security restrictions due to the storage, use, discussion or electronic processing of sensitive or classified information. They feature modifications to support the added security measures necessary in secure environments such as sensitive compartmented information facilities, emergency operations centers or command headquarters. These modified panels give users robust functionality and capabilities while adhering to essential operational security guidelines.

Téléchargements

CAD Drawings

	Taille	Téléchargé
Pictorial Drawing - MXD-1000-L, 10.1" Modero X Series Landscape Wall Mount Touch Panel (DWG) mis à jour : oct. 2020	4,76 Mo	oct. 2020
Pictorial Drawing - MXD-1000-L, 10.1" Modero X Series Landscape Wall Mount Touch Panel (DXF) mis à jour : oct. 2020	17,7 Mo	oct. 2020
Pictorial Drawing - MXD-1000-L, 10.1" Modero X Series Landscape Wall Mount Touch Panel (PDF) mis à jour : oct. 2020	206 ko	oct. 2020
Pictorial Drawing - MXD-1000-P, 10.1" Modero X Series Portrait Wall Mount Touch Panel (DWG) mis à jour : oct. 2020	1,63 Mo	oct. 2020
Pictorial Drawing - MXD-1000-P, 10.1" Modero X Series Portrait Wall Mount Touch Panel (DXF) mis à jour : oct. 2020	5,99 Mo	oct. 2020
Pictorial Drawing - MXD-1000-P, 10.1" Modero X Series Portrait Wall Mount Touch Panel (PDF) mis à jour : oct. 2020	207 ko	oct. 2020

Software

	Version	Taille	Téléchargé
G4 Support Files version 3.3.62, publié : juil. 2018	3.3.62	35,7 Mo	juil. 2018
TPDesign4 version 3.3.674, publié : déc. 2019	3.3.674	68,9 Mo	déc. 2019

Firmware

	Version	Taille	Téléchargé
Modero X Series G4 Touch Panels Firmware version 2.104.134, publié : mars 2018	2.104.134	47,2 Mo	mars 2018

Quick Start Guides

	Taille	Téléchargé
Quick Start Guide - MXD-1000 Modero X Series Wall/Flush Mount Touch Panel mis à jour : oct. 2020	363 ko	oct. 2020

Certifications

	Taille	Téléchargé
Modero X Series 7"/10.1" Touch Panels UL Certificate of Compliance mis à jour : avr. 2018	245 ko	avr. 2018
Modero X Series 10.1" Touch Panel CE Declaration of Conformity mis à jour : avr. 2018	255 ko	avr. 2018
Modero X Series 7" Touch Panel CE Declaration of Conformity mis à jour : avr. 2018	255 ko	avr. 2018
Modero X Series 7"/10.1" Touch Panels IECEE CB Test Certificate mis à jour : avr. 2018	155 ko	avr. 2018

Whitepapers

	Taille	Téléchargé
Digital Media Capabilities of the Modero X Series Touch Panels mis à jour : avr. 2018	1,22 Mo	avr. 2018

Safety Sheets

	Taille	Téléchargé
Safety Instructions - Modero X Series G4 Touch Panels mis à jour : oct. 2020	103 ko	oct. 2020

Device Modules

	Taille	Téléchargé
AMX Communications Application mis à jour : oct. 2020	16,9 Mo	oct. 2020
MET-ECOM/D Metreau Entry Communicator Device Module mis à jour : oct. 2020	2,72 Mo	oct. 2020

Touch Panel Files

	Taille	Téléchargé
MXT/D-1000 Page Transitions Demo Touch Panel File (1280x800) mis à jour : juil. 2018	1,97 Mo	juil. 2018

Si l'un des liens ci-dessus affiche des caractères étranges dans votre navigateur, faites un clic droit sur le fichier pour l'enregistrer sur votre ordinateur.

Caractéristiques

Graphic Leaps & Bounds – The Modero X Series features intuitive UI functionality including: gesturing, swiping, dynamic reordering and enhanced animation capabilities
Perfect From Any Angle – Includes In-Plane Switching (IPS), the latest technology in popular tablet/mobile devices that delivers the widest viewing angles and the most accurate color reproduction on the market
Available Rack Mounting Kit – As an option, you can mount the 10.1" Modero X Series Wall/Flush Mount Touch Panel directly to an equipment rack using the MXA-RMK-10 Modero X Series Rack Mount Kit (FG5969-62). The Kit includes a rack mount frame, screws and washers

*Product Update Notice: Near Field Communication™ (NFC) and High Frequency RFID (HF RFID) will no longer be included product features for all AMX Modero X® Series Touch Panels, shipping on or after October 1, 2017.

Caractéristiques techniques

Display Size (WH)	9.9" x 6.7" (252 mm x 170 mm), 12.0" (304 mm) diagonal
Viewable Area (WH)	8.5" x 5.3" (217mm x 136mm), 10.1" (257mm) diagonal
Resolution	1280x800
Viewing Angle	Vertical: ± 89°, Horizontal: ± 89°
Aspect Ratio	16:9
Touch Overlay	Projected capacitive, multi-touch support, 3 simultaneous max
Graphics Engine	AMX G4
Front Panel Components	Light Sensor, Proximity Detector, Sleep button. See Data Sheet for details.
Power Consumption	Full-On: 8 W
Temperature Range	Operating: 32° F to 104° F (0° C to 40° C)
FG Numbers	FG5968-25 (Portrait) FG5968-26 (Landscape)
