MXD-1000-NC

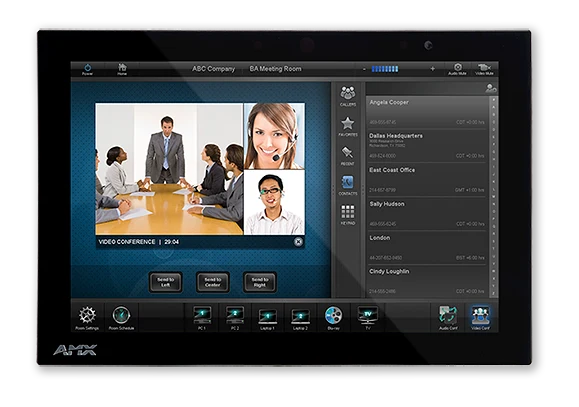

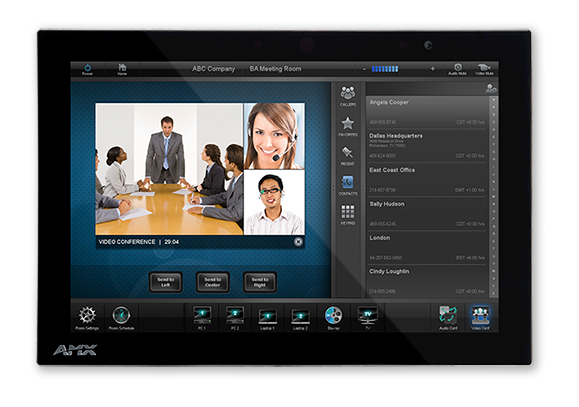

10.1" Modero X® Series G4 Wall/Flush Mount Touch Panel (no Camera, no Microphone)

Larger Images

This product is discontinued with a projected last order date of November 30, 2018.
The suggested alternatives are MD-1002 and MXD-700-L-NC.

The MXD-1000-NC / 10.1" Modero X® Series Wall Mount Touch Panel (No Camera, No Microphone) is specifically designed to exclude the camera, microphone and Bluetooth functions of the original Modero X Series panel to meet the security requirements of facilities that do not allow these capabilities.

The Modero X Series Touch Panels provide several industry firsts including a beautiful, capacitive multi-touch screen that provides users access to multiple applications with minimal navigation. The distinctive, low-profile design is engineered to sit perfectly on a table without obstructing views, and comes with a variety of mounting options for added security and convenience.

Common Applications

The MXD-1000-L-NC is ideal for federal, state, and local government or military facilities with strict security restrictions due to the storage, use, discussion or electronic processing of sensitive or classified information. They feature modifications to support the added security measures necessary in secure environments such as sensitive compartmented information facilities, emergency operations centers or command headquarters. These modified panels give users robust functionality and capabilities while adhering to essential operational security guidelines.

Downloads

  Version Language Size Uploaded
Data Sheet     429 KB Jul 06, 2018
Comparison Chart     173 KB Jul 09, 2018
Manuals
Installation Hardware Reference Manual - Modero X Series G4 Touch Panels     4.57 MB Mar 30, 2018
CAD Drawings
Pictorial Drawing - MXD-1000-L, 10.1" Modero X Series Landscape Wall Mount Touch Panel (DWG)     4.76 MB Apr 02, 2018
Pictorial Drawing - MXD-1000-P, 10.1" Modero X Series Portrait Wall Mount Touch Panel (PDF)     207 KB Apr 02, 2018
Pictorial Drawing - MXD-1000-P, 10.1" Modero X Series Portrait Wall Mount Touch Panel (DXF)     5.99 MB Apr 02, 2018
Pictorial Drawing - MXD-1000-P, 10.1" Modero X Series Portrait Wall Mount Touch Panel (DWG)     1.63 MB Apr 02, 2018
Pictorial Drawing - MXD-1000-L, 10.1" Modero X Series Landscape Wall Mount Touch Panel (PDF)     206 KB Apr 02, 2018
Pictorial Drawing - MXD-1000-L, 10.1" Modero X Series Landscape Wall Mount Touch Panel (DXF)     17.7 MB Apr 02, 2018
Software
G4 Support Files 3.3.62    35.7 MB Jul 16, 2018
TPDesign4 3.3.674    68.9 MB Mar 14, 2018
Modero X Series G4 Touch Panels Firmware 2.104.134    47.2 MB Mar 16, 2018
Quick Start Guides
Quick Start Guide - MXD-1000 Modero X Series Wall/Flush Mount Touch Panel     363 KB Mar 29, 2018
Application Guides
AMX and the Perfect Meeting Room     426 KB Apr 12, 2018
Whitepapers
AMX AV/IT Administrator's Guide     2.61 MB Apr 25, 2018
Digital Media Capabilities of the Modero X Series Touch Panels     1.22 MB Apr 25, 2018
Certifications
Modero X Series 7"/10.1" Touch Panels IECEE CB Test Certificate     155 KB Apr 26, 2018
Modero X Series 7" Touch Panel CE Declaration of Conformity     255 KB Apr 26, 2018
Modero X Series 10.1" Touch Panel CE Declaration of Conformity     255 KB Apr 26, 2018
Modero X Series 7"/10.1" Touch Panels UL Certificate of Compliance     245 KB Apr 26, 2018
Programming Guides
Configuration and Programming Guide - Modero S/X Series G4 Touch Panels HydraPort Touch Connection Ports     2.16 MB Mar 30, 2018
Safety Sheets
Safety Instructions - Modero X Series G4 Touch Panels     103 KB Mar 30, 2018
Device Modules
AMX Communications Application     16.9 MB Apr 12, 2018
MET-ECOM/D Metreau Entry Communicator Device Module     2.72 MB Apr 12, 2018
Touch Panel Files
MXT/D-1000 Page Transitions Demo Touch Panel File (1280x800)     1.97 MB Jul 18, 2018

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Features

  • Graphic Leaps & Bounds – The Modero X Series features intuitive UI functionality including: gesturing, swiping, dynamic reordering and enhanced animation capabilities
  • Perfect From Any Angle – Includes In-Plane Switching (IPS), the latest technology in popular tablet/mobile devices that delivers the widest viewing angles and the most accurate color reproduction on the market
  • Available Rack Mounting Kit – As an option, you can mount the 10.1" Modero X Series Wall/Flush Mount Touch Panel directly to an equipment rack using the MXA-RMK-10 Modero X Series Rack Mount Kit (FG5969-62). The Kit includes a rack mount frame, screws and washers

*Product Update Notice: Near Field Communication™ (NFC) and High Frequency RFID (HF RFID) will no longer be included product features for all AMX Modero X® Series Touch Panels, shipping on or after October 1, 2017.

Specifications

Display Size (WH) 9.9" x 6.7" (252 mm x 170 mm), 12.0" (304 mm) diagonal
Viewable Area (WH) 8.5" x 5.3" (217mm x 136mm), 10.1" (257mm) diagonal
Resolution 1280x800
Viewing Angle Vertical: ± 89°, Horizontal: ± 89°
Aspect Ratio 16:9
Touch Overlay Projected capacitive, multi-touch support, 3 simultaneous max
Graphics Engine AMX G4
Front Panel Components Light Sensor, Proximity Detector, Sleep button. See Data Sheet for details.
Power Consumption Full-On: 8 W
Temperature Range Operating: 32° F to 104° F (0° C to 40° C)
FG Numbers

FG5968-25 (Portrait)
FG5968-26 (Landscape)

Recommended Accessories

  • MXA-FMK-10

    Flush Mount Kit for 10" Modero X® Series Wall Mount Touch Panels
  • MXA-RMK-10

    Rack Mount Kit for 10" Modero X Series Landscape Touch Panel
  • MXA-MPL

    Modero X® and Modero S Series Multi Preview Live
  • PS-POE-AF-TC

    PoE Injector, 802.3AF Compliant
  • CB-MXP10

    Rough-In Box and Cover Plate for the 10" Wall Mount Modero X® Series Touch Panels
  • CB-MXP10-F

    Flush Mount Rough-In Box and Cover Plate, for use with MXA-FMK-10 Flush Mount Kit for 10.1" Modero X® Series Wall Mount Touch Panels
  • MXA-CLK

    Modero X® and Modero S Series Screen Cleaning Kit
  • NXA-ENET8-POE+

    Gigabit PoE Ethernet Switch
  • MXA-USB-C

    USB Port Covers for the Modero X® and Modero S Series Touch Panels

MXD-1000-NC

10.1" Modero X® Series G4 Wall/Flush Mount Touch Panel (no Camera, no Microphone)
