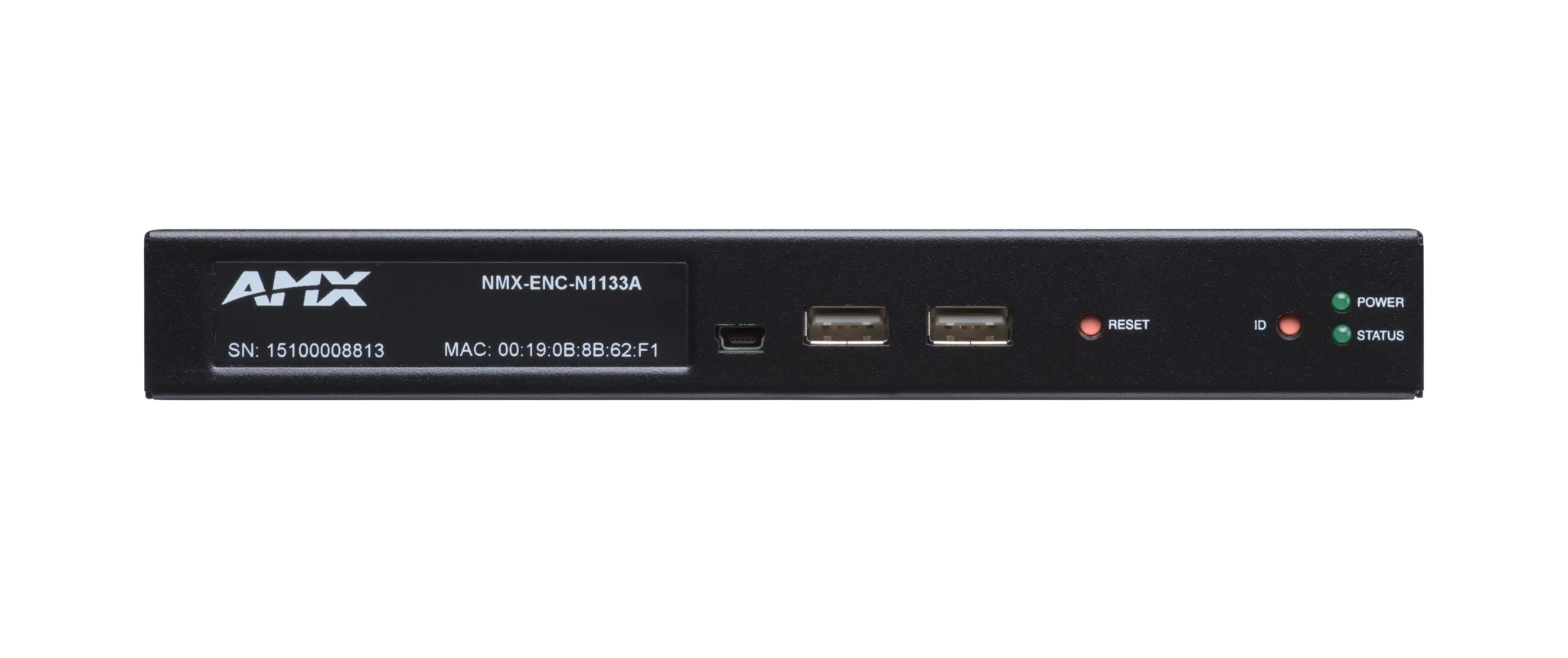

NMX-ENC-N1133A Encoder

Minimal Proprietary Compression Video Over IP Encoder with KVM, AES67 Support

Limited Availability
Grandes images

The new NMX-ENC-N1133A model features improved digital pixel reproduction and cut the already imperceptible latency in half. Packetized video streams not only remain visually lossless throughout distribution, they also arrive instantly. It has separate HDMI and VGA/RGB inputs, supports PoE, AES67, and has a separate SFP port. The SFP fiber path allows visually lossless video to be routed on a fiber-only network and extend signals beyond the reach of category cable. Added USB connectivity will enable users to extend USB over IP for touch-enabled and KVM applications.

The N1000 Series Encoders and Decoders are an affordable local AV over IP switching solution that packetizes video into a minimally compressed IP format to create anywhere from a small 2×1 seamless presentation switcher up to mid-size matrix switcher using off-the-shelf network switches.

Téléchargements

  Version Language Size Uploaded
CAD Drawings
file type icon Pictorial Drawing (PDF) – N1000, N2000, N3000
updated: juil. 2020
    111 ko juil. 2020
file type icon Pictorial Drawing (DWG) – N1000, N2000, N3000
updated: juil. 2020
    161 ko juil. 2020
BIM Objects
file type icon NMX-ENC-N1133A - BIM Object
updated: août 2019
    août 2019
Software
platform icon SVSI N-Able PC
version 5.1.6, updated: jan. 2024
5.1.6     114 Mo jan. 2024
platform icon SVSI N-Able Mac
version 5.1.4, updated: fév. 2024
5.1.4     240 Mo fév. 2024
Firmware
platform icon SVSI N1x33A Encoder and Decoder Firmware Updater
version 1.15.45, updated: nov. 2021
1.15.45     42,9 Mo nov. 2021
Product Guides
file type icon Product Guide - N-Series Stream Compatibility Guide
version A, updated: mai 2023
  380 ko mai 2023
file type icon NET-SVSI-MIB.txt
updated: août 2021
    94,5 ko août 2021
Programming Guides
file type icon Zoom Room Controls – SVSI Encoder Configuration Example
version 0.1.5, updated: sept. 2021
0.1.5    132 ko sept. 2021

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Caractéristiques

Output Scaling – Video scaling at output allows seamless switching from any source, at any resolution, to any display or projector, while preserving video fidelity

1 Frame Latency – Same as HDBaseT

Minimal Proprietary Compression (MPC) – Visually lossless MPC algorithm applied applied to all resolutions

Optional Compression – Available option to disable all compression

Power Over Ethernet (PoE) – PoE eliminates the need for power supply

Infrared (IR) – Infrared emitter connection allows control of low-cost, IR-only display devices

Onboard Control – All N-Series encoders and decoders have on-board, built-in control capability via events that can trigger any number of TCP/UDP commands to other IP controllable devices

Unmatched Flexibility – Highly competitive pricing for matrices up to 32x32, or higher with the help of our design experts

Separate Inputs – Separate HDMI and VGA input connectors on the encoder

SFP Fiber/RJ45 Ports – Encoder features SFP fiber/RJ45 copper network ports with USB control inputs for KVM-over-IP keyboard and mouse operation

Stand Alone or Card – Available as a stand alone device, or card for use with NMX-ACC-N9206

Caractéristiques techniques

FG Numbers FGN1133A-SA
