NMX-NVR-N6123 (arrêté)

Network Video Recorder

Grandes images

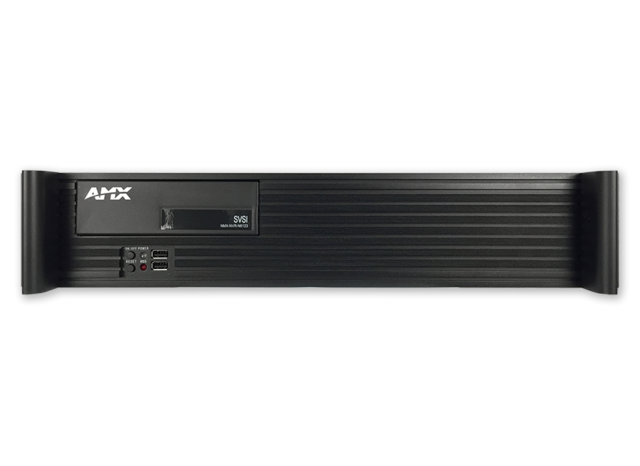

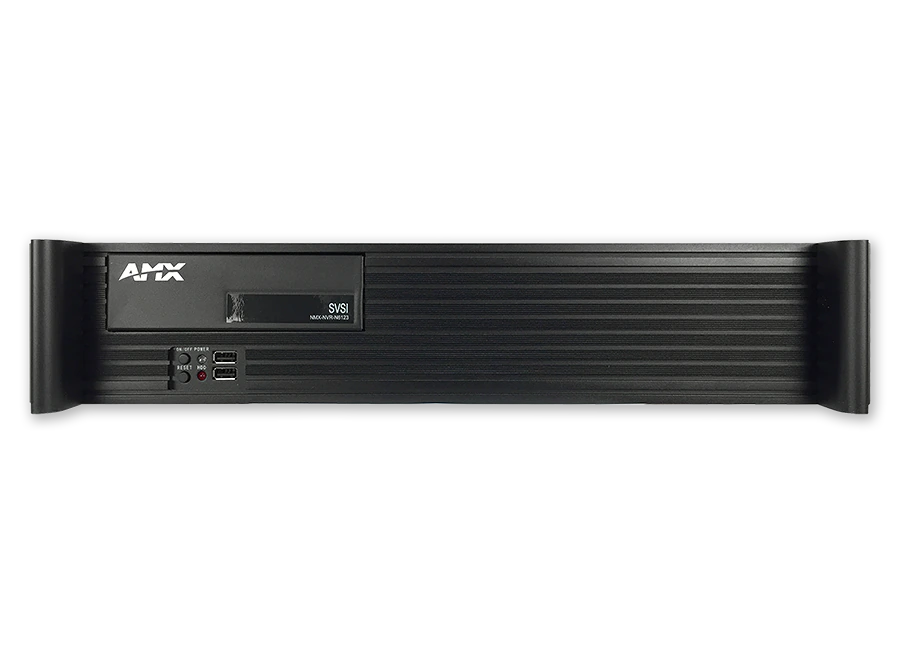

The NMX-NVR-N6123 is a network video recorder (NVR) designed to record hours of high-resolution, HD content over an Ethernet LAN. This rack-mount NVR is compatible with all SVSI video-over-IP products and attaches to the video network at any point. The NMX-NVR-N6123 can record from any SVSI encoder (N2000, N3000, or V-Series) and uses any SVSI decoder in the same series for playback. Each video stream is recorded and played back at its original resolution. The NMX-NVR-N6123's 2RU form-factor is stackable for a high density of recorded video streams in a small footprint. SVSI's N-Command is used to control all of the product's features (including Time-Shift, Dual-Sync, and H.264 Conversions).

Time-Delayed Broadcast
Time-Shift mode allows a recording to be delayed from several seconds to several hours to coordinate between different venues. Recordings can be initiated at one location and playback started at a separate location.This feature is supported by the N2000 and N3000 Series only.

Multi-Channel Synchronous Recording
Dual-Sync mode records two separate video streams simultaneously at different resolutions and bit-rate and plays them back synchronously. This feature is supported by the N2000 Series only. Common applications for Dual-Sync mode include:

  • During a presentation, the NVR records one video stream from a camera (videoing the presenter) while the second video stream records the content that the presenter is displaying on-screen.
  • During a lecture or worship service, the NVR records two camera feeds (focused on the same event, but from different angles) and the cameras' common audio track.
  • The NMX-NVR-N6123 is ideal for educational institutions, houses of worship, or corporate campuses that want to simultaneously distribute live video through a facility and record it for future network transmission or other delivery methods.

Téléchargements

  Version Language Size Uploaded
Manuals
file type icon NetLinx Control for N-Series Products Documentation Addendum
updated: oct. 2020
    1,05 Mo oct. 2020
file type icon Recording and Conversion Details - NMX-NVR-N6123 Network Video Recorder
updated: juil. 2018
    92,6 ko juil. 2018
file type icon User Manual - NMX-NVR-N6123 Network Video Recorder
updated: juin 2020
    4,06 Mo juin 2020
file type icon Network Video Recorder - Recording and Conversion Details
updated: juil. 2018
    91,9 ko juil. 2018
Software
platform icon SVSI N-Able PC
version 5.1.6, updated: jan. 2024
5.1.6     114 Mo jan. 2024
platform icon SVSI N-Able Mac
version 5.1.4, updated: fév. 2024
5.1.4     240 Mo fév. 2024
Firmware
platform icon SVSI Network Video Recorder Firmware Updater
version 2.0.8a, updated: nov. 2021
2.0.8a     33,7 Mo nov. 2021
Programming Guides
file type icon N6123 Network Video Recorder Direct Control API
updated: mars 2018
    246 ko mars 2018
file type icon Direct Control API - NMX-NVR-N6123 Network Video Recorder
updated: mars 2018
    298 ko mars 2018
Product Guides
file type icon NET-SVSI-MIB.txt
updated: août 2021
    94,5 ko août 2021
file type icon Product Guide - N-Series Stream Compatibility Guide
version A, updated: mai 2023
  380 ko mai 2023
file type icon Product Guide - N-Series Minimum Network Requirement
version B, updated: oct. 2023
  166 ko oct. 2023
Quick Start Guides
file type icon Quick Start Guide Guide - NMX-NVR-N6123 Network Video Recorder
updated: mars 2018
    963 ko mars 2018
Install Guides
file type icon SVSI Networked AV - Pre-Implementation Guide
updated: août 2023
    1,15 Mo août 2023

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Caractéristiques

  • Record –Up to 40-hrs of 1080p video
  • Dual-Sync and Time-Shift – Features standard.
  • Supported resolutions
    • HDTV: up to 1080p
    • CG: up to 1600x1200
  • Stereo Audio – On each record channel
  • Store – To MPEG4 format at original resolution

Caractéristiques techniques

Dimensions (HWD) 3.5" x 17.25" x 15.5" (8.9 cm x 43.8 cm x 39.4 cm)
Recording and Playback Streams N2000, No. Channels: 1, Recording 2 (dual), Playback Streams: 2 (dual)*; N3000, No. Channels: 10, Recording 10, Playback Streams: 10. See Data Sheet for details.
Estimated Recording Time: 1080p sources at high quality N2000, 43 hours 27 minutes; N3000, 434 hours 39 minutes. See Data Sheet for details.
Estimated Recording Time: Convert 1 hour of 720p video to MP4 N2000, 43 hours 27 minutes; N3000, 434 hours 39 minutes. See Data Sheet for details.
FG Numbers FGN6123
