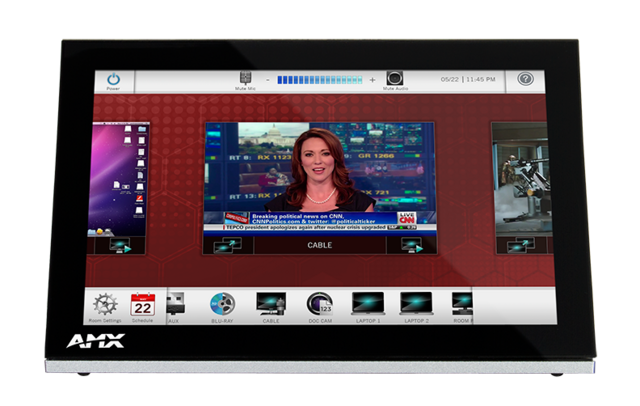

The MST-1001 / 10.1" Modero S Series Tabletop Touch Panel is a control surface for managing a wide variety of digital and analog devices in conference rooms, classrooms and other types of spaces. The MST-1001 has a sleek design that remains affordable due to its ruggedized plastic housing. Key features include a brilliant 24-color depth, PoE connectivity, video streaming, and VoIP support – all at an economical price point.
Hình ảnh lớn hơn
Thêm Chi tiết
- The MST-1001 is ideal for small to mid-size conference rooms on a tight budget, as well as smaller rooms or huddle spaces that require a more flexible and powerful control interface than a keypad or ControlPad. It can also serve as a second control panel in a large conference room or auditorium.
- Combined with the secure table mount kits and Kensington mounts, the MST-1001 is perfect for classrooms and other learning spaces where the panel can be securely fixed to a table or other flat surface.
Tải xuống
CAD Drawings
| Kích thước | |
|
|
100 KB |
|
|
800 KB |
Software
| Kích thước | |
|
|
40 MB |
Firmware
| Kích thước | |
|
|
50 MB |
Certifications
| Kích thước | |
|
|
200 KB |
|
|
300 KB |
|
|
400 KB |
Touch Panel Files
| Kích thước | |
|
|
10 MB |
Nếu bất kỳ liên kết nào ở trên hiển thị ký tự lạ trong trình duyệt của bạn, vui lòng nhấp chuột phải vào tệp để lưu vào máy tính của bạn.
Tính năng
- Powerful Graphics – Powered by the G4 graphics engine, the Modero S Series features streaming video and brilliant 24-bit color depth
- Elegant & Responsive User Interface – Exclusive SmoothTouch™ display supports single touch gesturing and delivers responsive performance
- Architectural Design Consistency – Install both Modero S and Modero X touch panels throughout a facility for consistent style on any budget
- Secure Table Mounting Option – Our beautifully styled secure mounting plate attaches to the Modero S tabletop touch panels and secures with under-table tamper resistant bolts making it virtually theft proof
- Optional Kensington Mount – If it's not possible or desirable to mount the touch panel to the table, the secure plate can also be used in conjunction with a Kensington Lock
Thông số kỹ thuật
| Display Size (WH) | 9.1" x 5.9" (230 mm x 149 mm), 10.8" (274 mm) diagonal |
| Viewable Area (WH) | 8.5" x 5.4" (217 mm x 136 mm ), 10.0" (256 mm) diagonal |
| Resolution | 1280x800 |
| Viewing Angle | Vertical: ± 85°, Horizontal: ± 85° |
| Aspect Ratio | 16:9 |
| Touch Overlay | Resistive |
| Graphics Engine | AMX G4 |
| Front Panel Components | Sleep Button |
| Power Consumption | Full-On: 14 W (max) |
| Temperature Range | Operating: 32° F to 104° F (0° C to 40° C) |
| FG Numbers | FG2265-05 |
Hỗ trợ Tư vấn viênNOTE: The most current and complete specifications for this product are found in the data sheet. Specifications are subject to change.
