AMX PS-POE-AT-TC

Größere Bilder

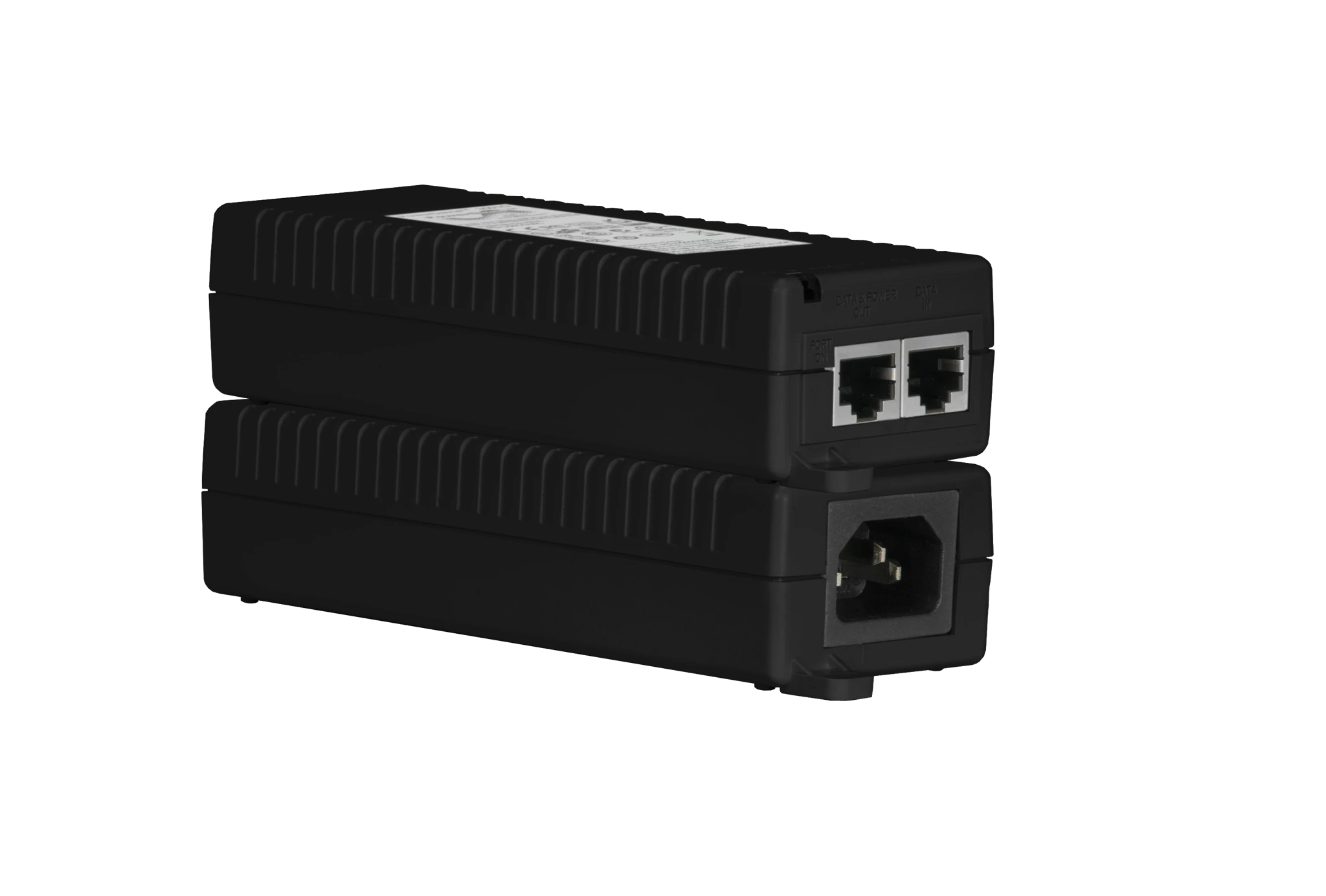

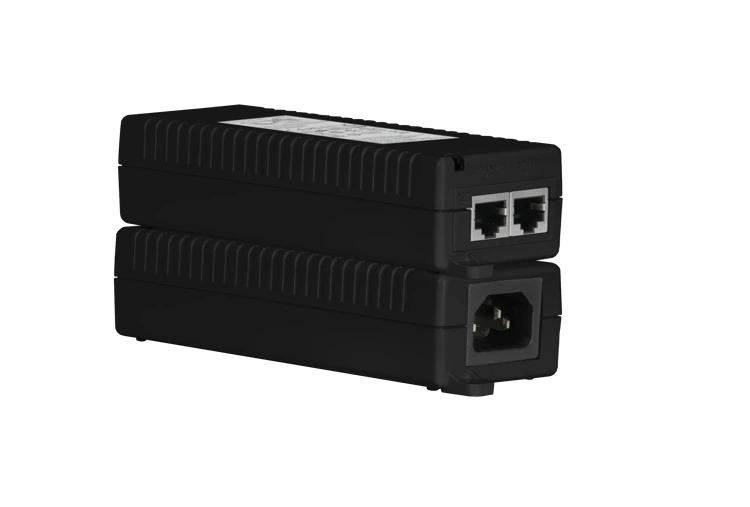

With the high power PS-POE-AT-TC Injector, transmit both power and data through a single cable to a remotely located Power-over-Ethernet (PoE) touch panel. Required for use with the MVP-9000i and DXLink Twisted Pair Transmitters and Receivers, it is also compatible with the MXT-1000, MXD-1000, MXT-700, MXD-700 and MXD-430. This self-contained single-port PoE gigabit power supply "injects" DC power and data into the same twisted pair cable at a distance of up to 100 meters (328 feet).

Mehr Details

The PS-POE-AT-TC PoE Injector sends power and data on demand to wall or table docking stations of compatible touch panels via a single Ethernet connection.

Downloads

CAD Drawings

	Größe	Hochgeladen
Pictorial Drawing - PS-POE-AT-TC High-Power 802.3at Compliant PoE Injector (PDF) aktualisiert: Jul 2018	144 KB	Jul 2018
Pictorial Drawing - PS-POE-AT-TC High-Power 802.3at Compliant PoE Injector (DXF) aktualisiert: Jul 2018	248 KB	Jul 2018
Pictorial Drawing - PS-POE-AT-TC High-Power 802.3at Compliant PoE Injector (DWG) aktualisiert: Jul 2018	99 KB	Jul 2018

BIM Objects

	Größe	Hochgeladen
PS-POE-AT-TC - BIM Object aktualisiert: Aug 2019		Aug 2019

Quick Start Guides

	Version	Größe	Hochgeladen
Quick Start Guide - PS-POE-AT-TC High-Power 802.3at Compliant PoE Injector Version D, aktualisiert: Jul 2018	D	123 KB	Jul 2018

Falls einer der obigen Links zu seltsamen Zeichen in Ihrem Browser führt, klicken Sie bitte mit der rechten Maustaste auf die Datei, um sie auf Ihrem Computer zu speichern.

Eigenschaften

10/100/1000 (MbPS) Data Rates
Meets IEEE802.3at requirements
Load Diagnostic LED
100/240 VAC Universal Input

Spezifikationen

Dimensions (HWD)	5 1/2" x 2 1/8" x 1 1/4" (14 cm x 5.3 cm x 3.25 cm)
Weight	.44 lbs (200 g)
Environmental	Temperature (Operating): -4°F to 104°F (-20°C to 40°C) @ 30W -4°F to 131°F (-20°C to 55°C) @ 22.5W Temperature (Storage): -4°F to +158°F (-20°C to +70°C) Relative Humidity (Operating): Maximum 90%, Non-Condensing Thermal Rating: 20 BTU/hr (@240VAC) Operating Altitude: -1000 to 10,000 ft. (-304.8 to 3048 m)
General	LEDs: Yellow (On): power is on and active Green (On): A remote terminal is connected Green (Blinking): Overload state or short circuit Enclosure: Molded black matte plastic Cord and Connectors: Dual shielded RJ45 jacks built into the enclosure, EIA 568A and 568B Approvals: IEEE 802.3at (PoE) RoHS / WEEE compliant CE FCC Part 15, Class B EN 55022 Class B (Emissions) EN 55024 (Immunity) VCCI (Japan) C-Tick UL/cUL per IEC 60950-1 GS Mark per IEC 60950-1
Input	LEDs: Yellow (On): power is on and active Green (On): A remote terminal is connected Green (Blinking): Overload state or short circuit Enclosure: Molded black matte plastic Cord and Connectors: Dual shielded RJ45 jacks built into the enclosure, EIA 568A and 568B Approvals: IEEE 802.3at (PoE) RoHS / WEEE compliant CE FCC Part 15, Class B EN 55022 Class B (Emissions) EN 55024 (Immunity) VCCI (Japan) C-Tick UL/cUL per IEC 60950-1 GS Mark per IEC 60950-1
Output	Pass Through Data Rates: 10/100/1000 Mbps Output Voltage: 55 VDC Nominal Output Power: 30 Watts (Guaranteed) Output Current: 0.6A (max) Ripple and Noise: Below the IEEE802.3af requirements f<500Hz: Vp-p 0.5 500Hz to 150kKHz: Vp-p 0.2 150KHz to 500KHz: Vp-p 0.15 500KHz to 1MHz: Vp-p 0.1 Transient Response: Meets IEC61000-4-4 (1Kv) DXLink Transport Layer Throughput: 10.2 Gbps pass thru (only applicable to DXLink signals)
Compatible AMX Products	DX-TX, DXLink™ Multi-Format Transmitter Module (FG1010-310) DX-TX-DWP, DXLink Multi-Format Decor Style Wallplate Transmitters (US) (FG1010-325-BL/-WH) DX-TX-WP, DXLink Multi-Format Wallplate Transmitters (FG1010-320-BL/WH) DX-RX, DXLink HDMI Receiver Module (FG1010-500) MVP-9000i, 9” Modero® ViewPoint® Touch Panel with Intercom (FG5967-01/02)
FG Numbers	FG423-84
