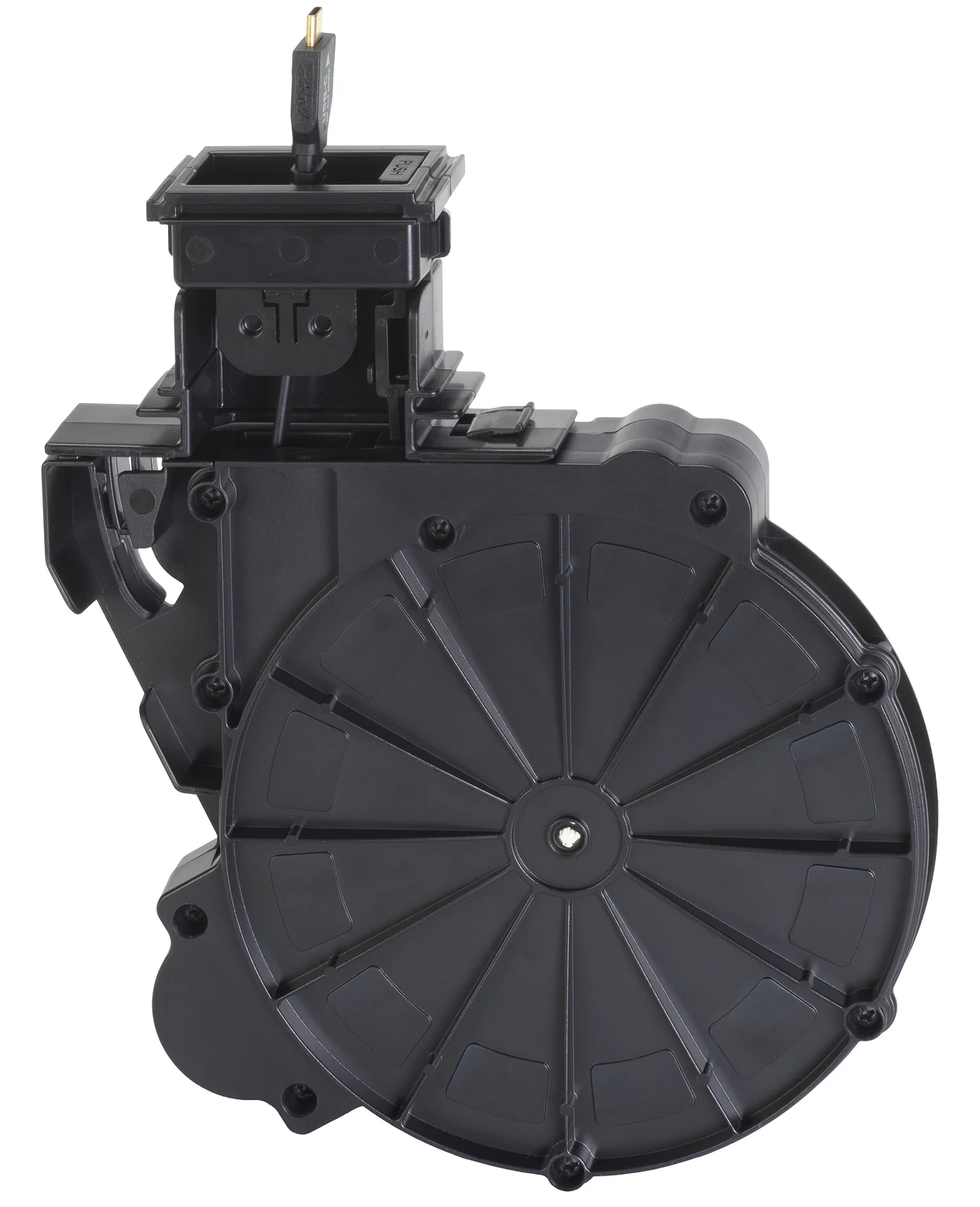

The AMX HydraPort® USB-C to HDMI Module with Retractable Cable delivers digital video in resolutions up to 4K@60Hz. With a retractable USB-C cable on top and HDMI output under the table, this cable simplifies connecting modern laptops and mobile devices to your video network. The compact, easy to install solution organizes and hides cables in virtually any type of conference table, including narrow tables, and those with glass inlay.
Größere Bilder
Mehr Details
Many modern laptops and mobile devices leverage USB-C connections for every signal type including video, audio, data, and power. The retractable USB-C cable with support for DisplayPort Alt Mode of the HPX-AV103-USBC-R ensures the necessary cable will always be available in your meeting space and the HDMI output below the table makes injecting video into your display or video network easy.
Videos
configuration_tool
Downloads
CAD Drawings
| Größe | |
|
|
1,2 MB |
|
|
990 KB |
|
|
4,23 MB |
Quick Start Guides
| Größe | |
|
|
1,03 MB |
Safety Sheets
| Größe | |
|
|
1,25 MB |
Data Sheets
| Größe | |
|
|
1,02 MB |
Configuration Tools
| Größe | |
|
|
Falls einer der obigen Links zu seltsamen Zeichen in Ihrem Browser führt, klicken Sie bitte mit der rechten Maustaste auf die Datei, um sie auf Ihrem Computer zu speichern.
Eigenschaften
- Retractable USB-C Cable – USB-C Cable with DisplayPort Alt Mode support for video distribution
- 4K60 4:4:4 - Ideal for users running critical viewing applications requiring transport which uses the full fidelity of their displays.
- HDCP 2.2 - Supports the latest video standards.
- High Dynamic Range (HDR) and Deep Color Support – Support for HDR10 and up to 36-bit Deep Color.
Spezifikationen
| Dimensions | 1 ½ HydraPort Units |
| Product Weight | ~ 1lb. (0.46 kg) |
| Front Panel Components | (1) USB-C Retractable Cable |
| Integrated Cable | • USB-C 4K60 Retractable Cable • DisplayPort Alt Mode • Pullout Length: 5 ft (1.5m) • Pigtail: 5 ft (1.5m) • Pigtail Connector: HDMI • Data Rate: 18 Gbps • Resolution Support: up to 4096 x 2160 @60Hz • Deep Color Support: Yes • 3D Format Support: Yes |
| Long-Term Reliability | Tested to 10,000 pull & release cycles |
| SKU Numbers | AMX-UHMR01C |
