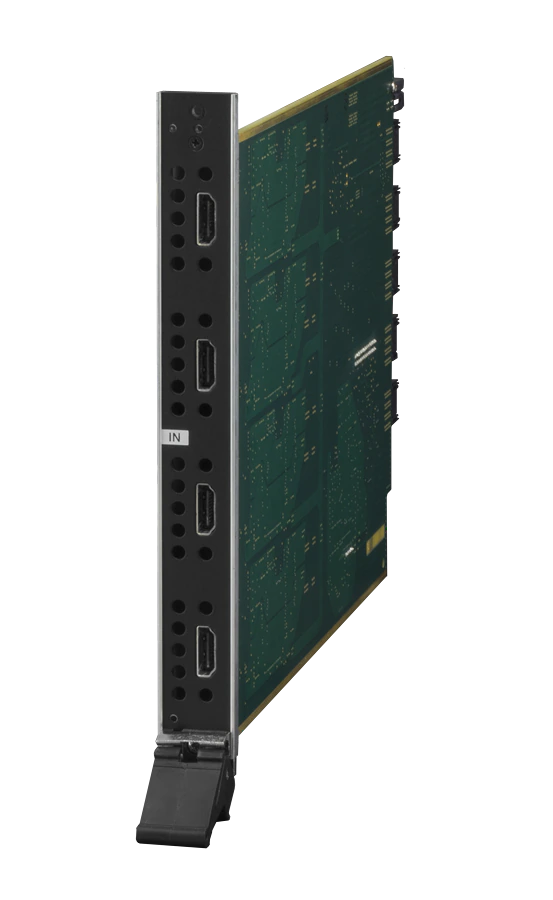

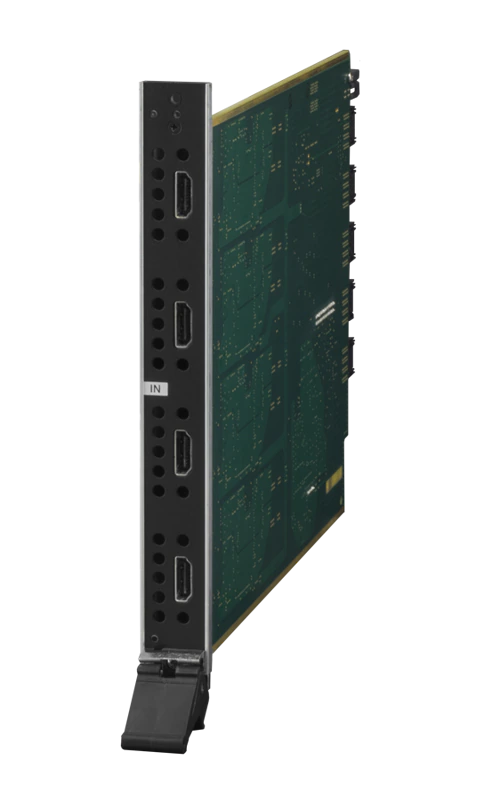

The DGX-I-HDMI-4K is a 4K and Ultra High Definition (UHD) capable and HDCP compliant HDMI input board for the Enova DGX 800, Enova DGX 1600, Enova DGX 3200, and Enova DGX 6400. It has four connections and supports HDMI with embedded audio, DisplayPort++ or DVI signals.
Grandes images
plus de détails
The Enova DGX HDMI Input Board is ideal for applications where source devices are located within 15 meters of the Enova DGX Digital Media Switcher, allowing direct digital inputs into the system and eliminating the need for external transmitters.
Configuration_tool
Téléchargements
Documents
| Taille | |
Data Sheet
mis à jour : avr. 2026
|
262 ko |
Manuals
| Taille | |
|
|
868 ko |
|
|
46,4 ko |
Certifications
| Taille | |
|
|
176 ko |
|
|
143 ko |
|
|
201 ko |
|
|
276 ko |
Comparison Charts
| Taille | |
|
|
159 ko |
Configuration Tools
| Taille | |
|
|
Si l'un des liens ci-dessus affiche des caractères étranges dans votre navigateur, faites un clic droit sur le fichier pour l'enregistrer sur votre ordinateur.
Caractéristiques
- 4K and Ultra High Definition (UHD) Support – Experience high-quality video resolution for 4K devices
- InstaGate Pro® Technology – Easily integrate HDMI/HDCP into system designs and enjoy hassle-free matrix switching to all compliant displays. No tools, no delays, and no key constraints – it just works
- Hot Swappable – Easily add or replace I/O boards at any time after deployment - the system automatically recognizes the new configuration and activates the boards
- 3D Support – Pass through latest video formats including 3D and Deep Color
- Surround Sound Support – Dolby TrueHD, Dolby Digital, DTS-HD Master Audio, DTS, and 2-channel through 8-channel L-PCM
Caractéristiques techniques
| Connectors | 4 HDMI Type A Female Ports |
| Compatible Formats | HDMI, HDCP, DVI |
| Signal Type Support | HDMI DVI-D (Single Link With HDMI Cable Adapter), DisplayPort ++ (Input Only, With HDMI Cable Adapter) |
| Maximum Resolution Support | 3840x2160p@24/25/30 Hz, 4096x2160p@24/25/30 Hz, 3840x2160p@60 Hz, 4:2:0, 4096x2160p@60 Hz, 4:2:0 |
| Audio Format Support | Dolby TrueHD, Dolby Digital, DTS-HD Master Audio, DTS, 2 CH through 8 CH L-PCM, Dolby Digital and DTS support up to 48 kHz, 5.1 channels |
| FG Numbers | FG1061-540 |
Recommended_accessories
-
CBL-HDMI-FL2
Câble plat prêt pour MyTurn™ HDMI 4K60
Assistance aux consultantsNOTE: The most current and complete specifications for this product are found in the data sheet. Specifications are subject to change.
DGX-I-HDMI-4K
Disponibilité limitée
Enova® DGX 4K HDMI Input Board
