DGX-I-HDMI-4K

Enova® DGX 4K HDMI Input Board

Larger Images

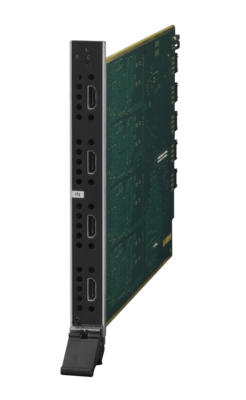

The DGX-I-HDMI-4K is a 4K and Ultra High Definition (UHD) capable and HDCP compliant HDMI input board for the Enova DGX 800, Enova DGX 1600, Enova DGX 3200, and Enova DGX 6400. It has four connections and supports HDMI with embedded audio, DisplayPort++ or DVI signals.

Common Applications

The Enova DGX HDMI Input Board is ideal for applications where source devices are located within 15 meters of the Enova DGX Digital Media Switcher, allowing direct digital inputs into the system and eliminating the need for external transmitters.

Configuration Tool

Downloads

  Version Language Size Uploaded
file type icon Data Sheet
updated: Nov 16, 2021
    262 KB Nov 16, 2021
Manuals
file type icon Support Guide - Enova DGX Board Replacement
version P, updated: Mar 24, 2021
  868 KB Mar 24, 2021
file type icon Support Guide – IO Board and Endpoint Compatibility
updated: Feb 02, 2021
    46.4 KB Feb 02, 2021
Certifications
file type icon Enova DGX 100 Series Enclosure UL Certificate of Compliance
updated: Feb 10, 2021
    176 KB Feb 10, 2021
file type icon Enova DGX 100 Series CB Test Certificate 62368
updated: Feb 10, 2021
    143 KB Feb 10, 2021
file type icon Enova DGX 100 Series CB Test Certificate 60950
updated: Feb 10, 2021
    201 KB Feb 10, 2021
file type icon Enova DGX 100 Series CE Declaration of Conformity
updated: Feb 10, 2021
    276 KB Feb 10, 2021
Comparison Charts
file type icon Comparison Chart - DGX Video Boards
updated: Dec 17, 2020
    159 KB Dec 17, 2020
Configuration Tools
file type icon Enova DGX 100 Series Configuration Tool
updated: Mar 23, 2021
    Mar 23, 2021

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Features

  • 4K and Ultra High Definition (UHD) Support – Experience high-quality video resolution for 4K devices
  • InstaGate Pro® Technology – Easily integrate HDMI/HDCP into system designs and enjoy hassle-free matrix switching to all compliant displays. No tools, no delays, and no key constraints – it just works
  • Hot Swappable – Easily add or replace I/O boards at any time after deployment - the system automatically recognizes the new configuration and activates the boards
  • 3D Support – Pass through latest video formats including 3D and Deep Color
  • Surround Sound Support – Dolby TrueHD, Dolby Digital, DTS-HD Master Audio, DTS, and 2-channel through 8-channel L-PCM

Specifications

Connectors 4 HDMI Type A Female Ports
Compatible Formats HDMI, HDCP, DVI
Signal Type Support HDMI DVI-D (Single Link With HDMI Cable Adapter), DisplayPort ++ (Input Only, With HDMI Cable Adapter)
Maximum Resolution Support 3840x2160p@24/25/30 Hz, 4096x2160p@24/25/30 Hz, 3840x2160p@60 Hz, 4:2:0, 4096x2160p@60 Hz, 4:2:0
Audio Format Support Dolby TrueHD, Dolby Digital, DTS-HD Master Audio, DTS, 2 CH through 8 CH L-PCM, Dolby Digital and DTS support up to 48 kHz, 5.1 channels
FG Numbers FG1061-540
