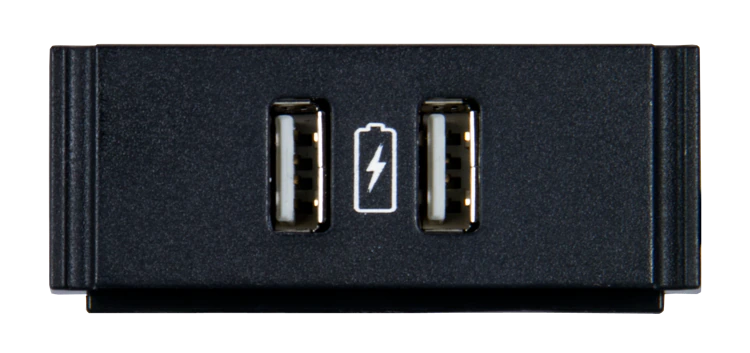

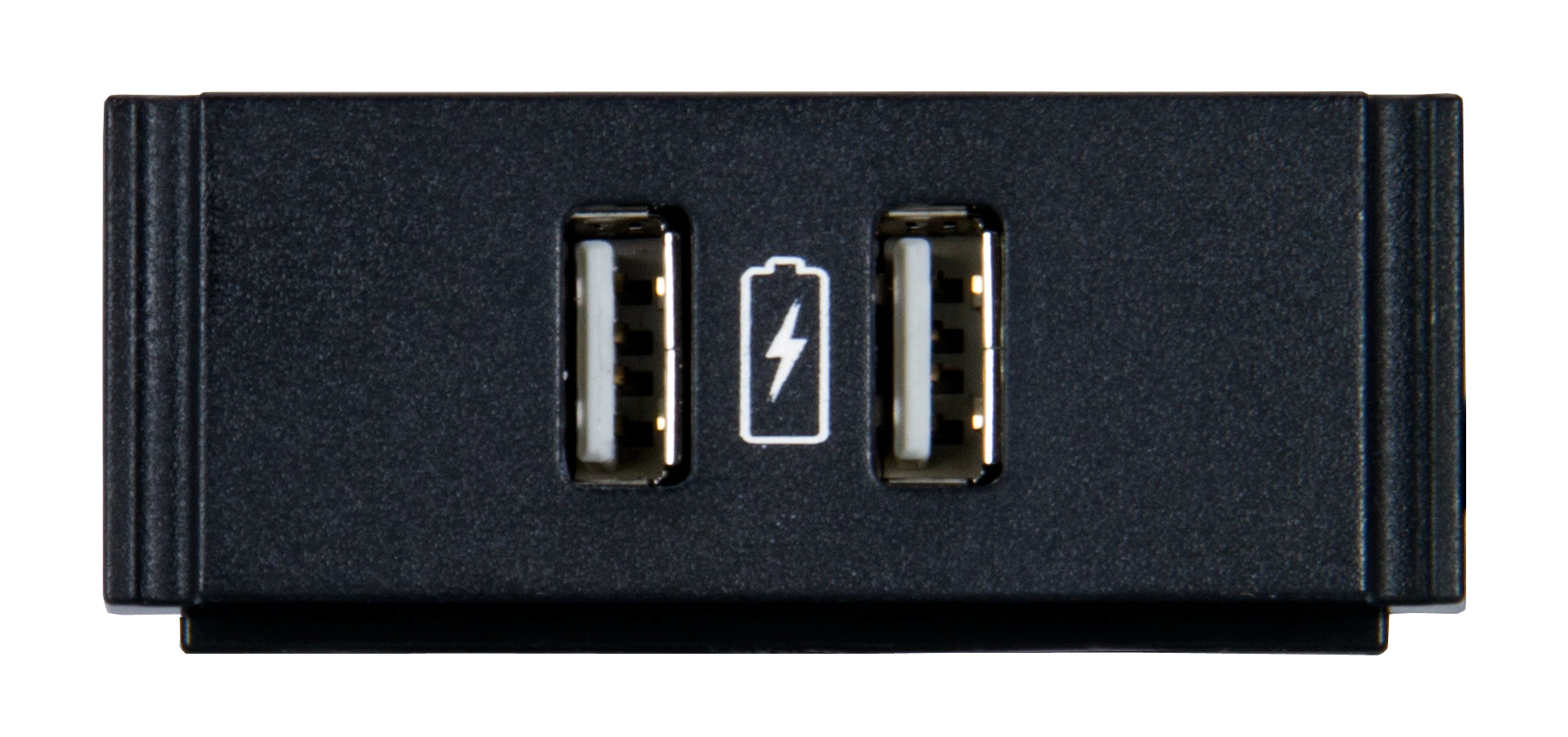

The HPX-N102-USB-PC module provides a dual USB connection with charging capability to the HydraPort® chassis. The power symbol on the module makes it easy for users to identify that power is provided. HPX-N102-USB-PC includes a PSU2.1 USB power supply and four power adapters to accommodate various wall outlet types.
Grandes images
plus de détails
Learn important installation, configuration and programming techniques in the following course(s) from Harman Professional University:
- Getting Started with HydraPort
For schedules and registration for these and any Harman Professional University courses, visit College of AMX.
Vidéos
Configuration_tool
Téléchargements
CAD Drawings
| Taille | |
Pictorial Drawing - HPX-N102-USB-PC Dual USB Power Module with Printed Charging Symbol (PDF)
mis à jour : oct. 2020
|
172 ko |
Pictorial Drawing - HPX-N102-USB-PC Dual USB Power Module with Printed Charging Symbol (DXF)
mis à jour : oct. 2020
|
621 ko |
Quick Start Guides
| Taille | |
|
Quick Start Guide - HPX-N102-USB-PC HydraPort Dual Charging USB Module
version B,
mis à jour : oct. 2020
|
316 ko |
Safety Sheets
| Taille | |
|
|
1,25 Mo |
Data Sheets
| Taille | |
|
|
1,02 Mo |
Configuration Tools
| Taille | |
|
|
Si l'un des liens ci-dessus affiche des caractères étranges dans votre navigateur, faites un clic droit sur le fichier pour l'enregistrer sur votre ordinateur.
Caractéristiques techniques
| Dimensions | 1 HydraPort Unit (See the HPX-1600 specifications section for an explanation of HydraPort units) |
| Weight | .35 lbs (0.16 Kg) |
| Front Panel Components | USB Ports: (2) Type A USB Ports |
| Integrated Cable | USB Cables: (2) USB cables 6' (1.83 m) - connect the module to the USB Ports on the PSU2.1 USB Power Supply |
| Included Accessories | PSU2.1 USB Power Supply (FG423-25) |
| FG Numbers | FG553-13 |
