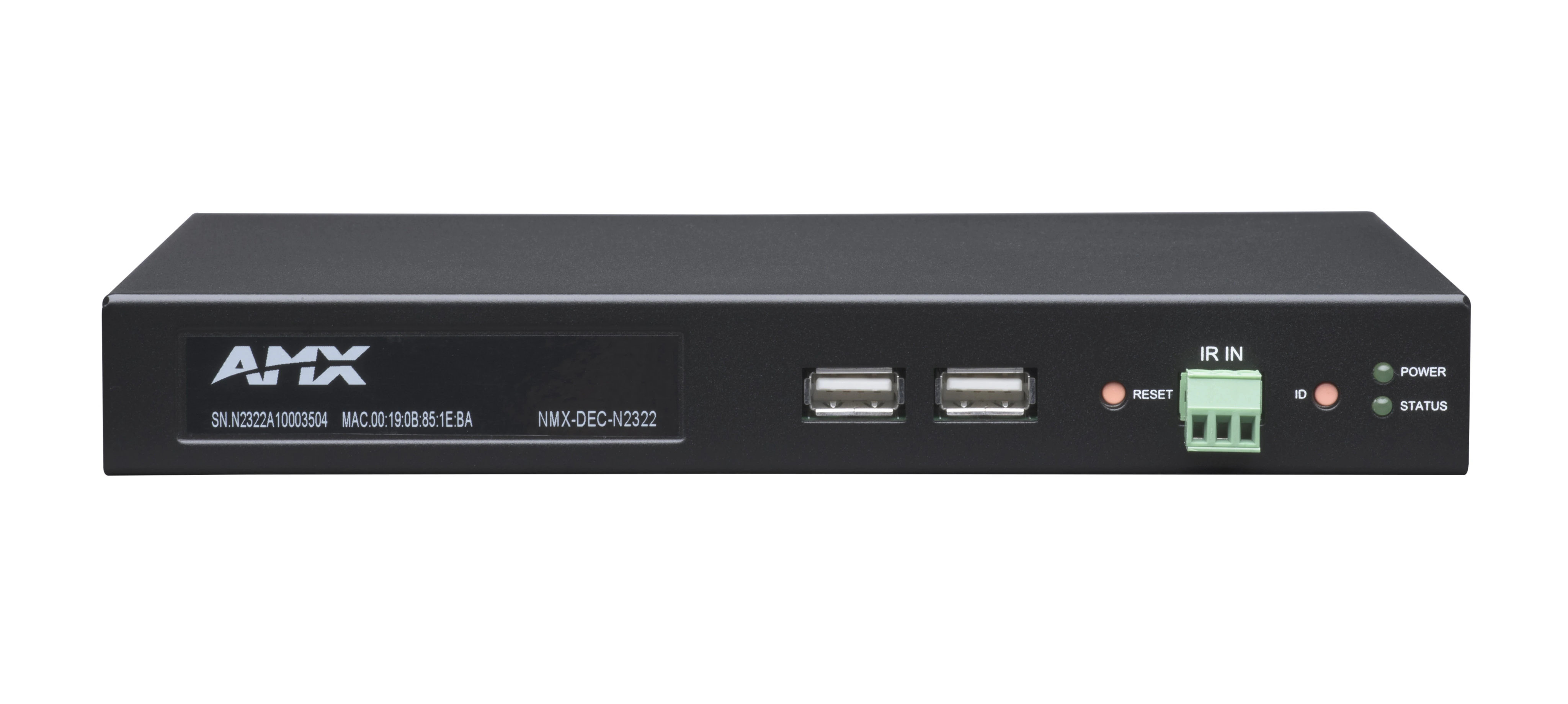

NMX-DEC-N2322 Decoder

N2300 Series 4K UHD Video over IP Stand Alone Decoder with KVM, PoE

Grandes images

The NMX-ENC-N2312 Encoder and NMX-DEC-N2322 Decoder provide a flexible, feature-rich, and simple-to-deploy Digital Media Distribution and Switching solution which can be used in 4K applications with resolutions up to 4096x2160, with support for HDCP 2.2. This motion-based wavelet codec solution delivers video with nearly imperceptible latency at an incredibly low 200 Mb/s bandwidth allowing 4K distribution over standard gigabit Ethernet networks.

Any source can be sent to one or more displays by routing through layer 2 / layer 3 switches utilizing standard Cat5e cable. The NMX-DEC-N2322 includes standard features like output scaling, bi-directional serial, IR, embedded 7.1 audio, and KVM-over-IP extension.

Vidéos





Téléchargements

  Version Language Size Uploaded
Manuals
file type icon NetLinx Control for N-Series Products Documentation Addendum
updated: oct. 2020
    1,05 Mo oct. 2020
file type icon Direct Control API - NMX-ENC-N2312, NMX-DEC-N2322 4K Series
updated: oct. 2020
    180 ko oct. 2020
file type icon Instruction Manual - NMX-ENC-N2312, NMX-DEC-N2322 4K Series
updated: déc. 2020
    4,61 Mo déc. 2020
Brochures
file type icon Pro Install Overview Brochure
en updated: oct. 2023
  en  23,1 Mo oct. 2023
CAD Drawings
file type icon Pictorial Drawing (DWG) – N1000, N2000, N3000
updated: juil. 2020
    161 ko juil. 2020
file type icon Pictorial Drawing (PDF) – N1000, N2000, N3000
updated: juil. 2020
    111 ko juil. 2020
BIM Objects
file type icon NMX-DEC-N2322 - BIM Object
updated: août 2019
    août 2019
Software
platform icon SVSI N-Able PC
version 5.1.6, updated: jan. 2024
5.1.6     114 Mo jan. 2024
platform icon SVSI N-Able Mac
version 5.1.4, updated: fév. 2024
5.1.4     240 Mo fév. 2024
Firmware
platform icon SVSI N23xx Series Encoder and Decoder Firmware Updater
version 1.1.28, updated: fév. 2023
1.1.28     28 Mo fév. 2023
Quick Start Guides
file type icon Quick Start Guide - SVSI N2312/N2322 4K Series
updated: oct. 2020
    299 ko oct. 2020
Product Guides
file type icon Product Guide - N-Series Minimum Network Requirement
version B, updated: oct. 2023
  166 ko oct. 2023
file type icon NET-SVSI-MIB.txt
updated: août 2021
    94,5 ko août 2021
file type icon Product Guide - N-Series Stream Compatibility Guide
version A, updated: mai 2023
  380 ko mai 2023
file type icon Product Guide - N-Series Video Wall/Crop Limitation
updated: oct. 2020
    72,8 ko oct. 2020
Programming Guides
file type icon Zoom Room Controls – SVSI Decoder Configuration Example
version 0.1.5, updated: sept. 2021
0.1.5    132 ko sept. 2021
Install Guides
file type icon SVSI Networked AV - Pre-Implementation Guide
updated: août 2023
    1,15 Mo août 2023
Device Modules
file type icon Duet Control Module – N2322
updated: nov. 2023
    nov. 2023

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Caractéristiques

  • Design Flexibility – Start as small as 1x1 and grow the system in increments of single sources and devices by simply adding additional encoders and decoders
  • Advanced Security including SSL/TLS and HTTPS – Satisfies enterprise network security requirements.
  • Power Over Ethernet (POE) – eliminates requirement for local power supply and speeds installation. Units can still be powered locally from 12VDC allowing for easy rack-mountable, high-density installations
  • Infrared (IR) – Emitter connection allows control of IR-only display devices
  • Fast Install – With Phoenix connectors for Power, IR, RS232 serial, and analog audio interfaces
  • Balanced and Unbalanced Audio – Embedded 7.1 digital audio or balanced/unbalanced analog audio
  • Multiple Connection Options – RJ-45 and SFP network connectors and HDMI video connections
  • KVM – Dual USB-A control for KVM applications
  • Native NetLinx – NetLinx Studio can easily recognize the device

Caractéristiques techniques

Digital Video Input Network video over Ethernet via RJ45 port or fiber via 1G SFP port
Video Outputs HDMI 2.0, DVI-D (through adapter)
Video Formats HDMI 2.0, DVI-D (through adapter), HDCP 2.2 content protection support
Output Resolutions 720p, 1080p, 4K30 or input resolution if scaler is disabled
Audio Input Signal Types Network video over Ethernet via RJ45
Audio Output Signal Types Embedded audio on DVI-D or HDMI (through adapter), analog audio output
HDMI Audio Formats 8ch PCM
Analog Audio Formats Stereo 2-channel
Latency 17-ms at 60fps for 1920x1080 and lower resolutions; 34-ms at 30 fps for 4K30 4K resolutions. See Data Sheet for details.
Communications Ethernet: 10/100/1000 Mbps, auto-negotiating, auto-sensing, full/half duplex, DHCP, Auto IP, and Static IP; 1 Gbps SFP port which accepts compatible fiber transceivers or direct attach cables (fiber or copper cabling); HDMI: HDCP, EDID management
FG Numbers FGN2322-SA
