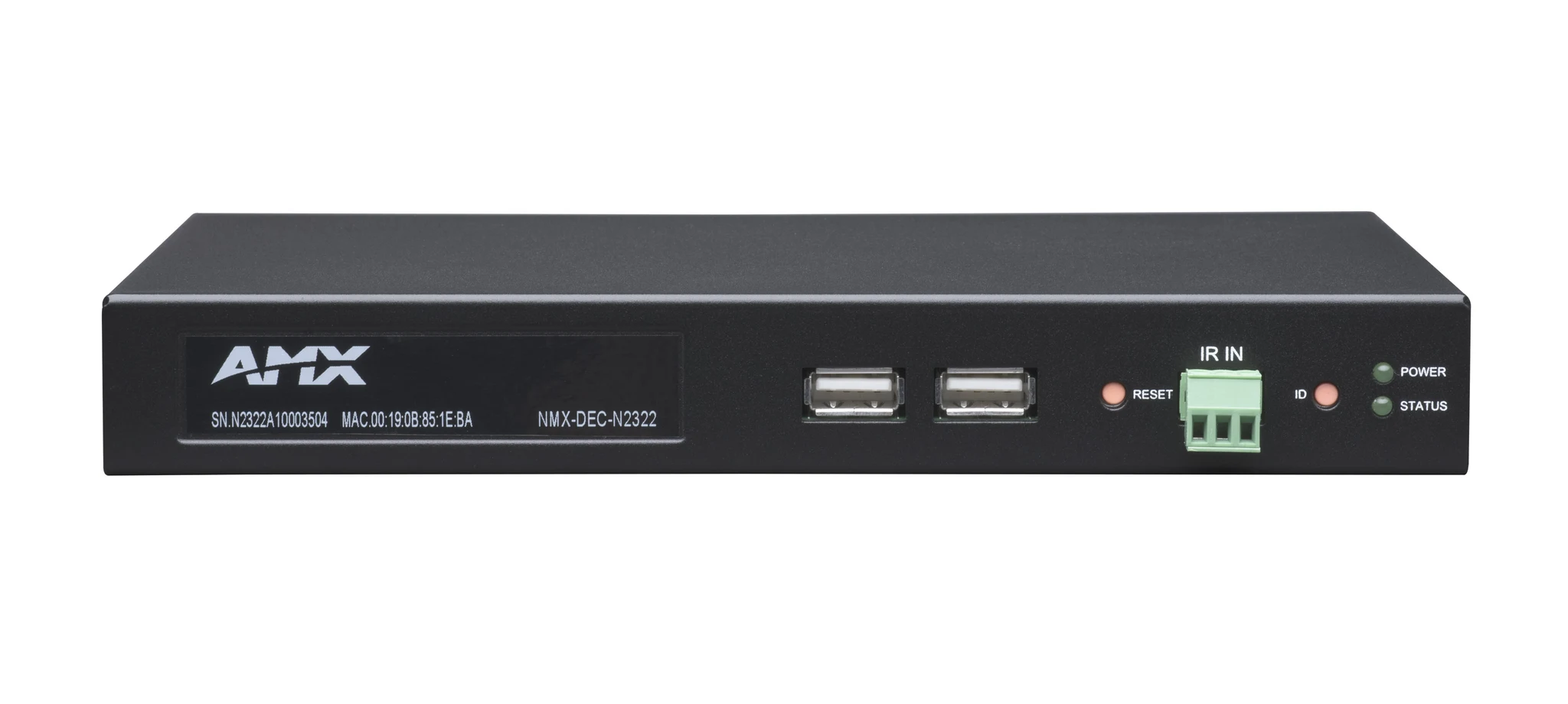

NMX-DEC-N2322 Decoder

N2300 Series 4K UHD Video over IP Stand Alone Decoder with KVM, PoE

Larger Images

The NMX-ENC-N2312 Encoder and NMX-DEC-N2322 Decoder provide a flexible, feature-rich, and simple-to-deploy Digital Media Distribution and Switching solution which can be used in 4K applications with resolutions up to 4096x2160, with support for HDCP 2.2. This motion-based wavelet codec solution delivers video with nearly imperceptible latency at an incredibly low 200 Mb/s bandwidth allowing 4K distribution over standard gigabit Ethernet networks.

Any source can be sent to one or more displays by routing through layer 2 / layer 3 switches utilizing standard Cat5e cable. The NMX-DEC-N2322 includes standard features like output scaling, bi-directional serial, IR, embedded 7.1 audio, and KVM-over-IP extension.

Videos

Documentation

Downloads

Features

  • Design Flexibility – Start as small as 1x1 and grow the system in increments of single sources and devices by simply adding additional encoders and decoders
  • Advanced Security including SSL/TLS and HTTPS – Satisfies enterprise network security requirements.
  • Power Over Ethernet (POE) – eliminates requirement for local power supply and speeds installation. Units can still be powered locally from 12VDC allowing for easy rack-mountable, high-density installations
  • Infrared (IR) – Emitter connection allows control of IR-only display devices
  • Fast Install – With Phoenix connectors for Power, IR, RS232 serial, and analog audio interfaces
  • Balanced and Unbalanced Audio – Embedded 7.1 digital audio or balanced/unbalanced analog audio
  • Multiple Connection Options – RJ-45 and SFP network connectors and HDMI video connections
  • KVM – Dual USB-A control for KVM applications
  • Native NetLinx – NetLinx Studio can easily recognize the device

Specifications

Digital Video Input Network video over Ethernet via RJ45 port or fiber via 1G SFP port
Video Outputs HDMI 2.0, DVI-D (through adapter)
Video Formats HDMI 2.0, DVI-D (through adapter), HDCP 2.2 content protection support
Output Resolutions 720p, 1080p, 4K30 or input resolution if scaler is disabled
Audio Input Signal Types Network video over Ethernet via RJ45
Audio Output Signal Types Embedded audio on DVI-D or HDMI (through adapter), analog audio output
HDMI Audio Formats 8ch PCM
Analog Audio Formats Stereo 2-channel
Latency 17-ms at 60fps for 1920x1080 and lower resolutions; 34-ms at 30 fps for 4K30 4K resolutions. See Data Sheet for details.
Communications Ethernet: 10/100/1000 Mbps, auto-negotiating, auto-sensing, full/half duplex, DHCP, Auto IP, and Static IP; 1 Gbps SFP port which accepts compatible fiber transceivers or direct attach cables (fiber or copper cabling); HDMI: HDCP, EDID management
FG Numbers FGN2322-SA

Recommended Accessories

  • NMX-ACC-N9312

    Power Supply 12V External
  • NMX-ACC-N9382

    1RU Power Supply 16-Channel 12V for up to 16 SVSI N-Series Encoders, Decoders and Audio Transceiver
  • NMX-ACC-N9101

    Mounting Wings for SVSI N-Series Encoders, Decoders and Audio Transceiver
  • NMX-ACC-N9102

    1RU Rack Shelf for Two Side-by-Side SVSI N-Series Encoders, Decoders and Audio Transceiver
