DXLink HDMI Fiber Receiver được trang bị công nghệ SmartScale® tích hợp để cung cấp HDMI với HDCP được tự động co giãn hoàn hảo cho từng màn hình kết nối, loại bỏ các thách thức tích hợp có thể xảy ra khi nguồn và màn hình có độ phân giải tối ưu khác nhau. Nó chấp nhận âm thanh và video qua sợi đơn chế độ từ khoảng cách lên tới 10 Km. Lắp đặt DXLink Fiber Receiver hồ sơ thấp phía sau màn hình hoặc trên máy chiếu gắn trần.
Hình ảnh lớn hơn
Sản phẩm thay thế
-
DXFP-RX-4K60
Mô-đun Máy thu Fiber HDMI 4K60 DXLink
Thêm Chi tiết
The ideal solution for any destination display or projector designed into an Enova DGX integrated system that requires the distance capabilities and inherent security of fiber – or both; including campus-wide distribution of sources that are shared between classrooms, secure military applications, casinos, arenas and museums. Directly connect LCDs, plasmas and projectors using the HDMI output connection while delivering room audio via the stereo audio output.
Tải xuống
Tài liệu
| Kích thước | |
Data Sheet
cập nhật: Thg 4 2026
|
600 KB |
Manuals
| Kích thước | |
|
|
200 KB |
|
|
50 KB |
|
|
4 MB |
BIM Objects
| Kích thước | |
|
|
Firmware
| Kích thước | |
|
|
1 MB |
Quick Start Guides
| Kích thước | |
|
|
700 KB |
Whitepapers
| Kích thước | |
|
|
500 KB |
Nếu bất kỳ liên kết nào ở trên hiển thị ký tự lạ trong trình duyệt của bạn, vui lòng nhấp chuột phải vào tệp để lưu vào máy tính của bạn.
Tính năng
- HDCP Compliance Over Fiber – Transmit HDCP compliant video including HDMI up to 10 Km (over 6 miles)
- Industry Leading Data Rate – DXLink is leading the way with an optical transport rate of 10 Gbps
- SmartScale® Technology – Automatically responds to the display's declared EDID information and scales the video to the best resolution and video parameters for that display without manual setup; this prevents inferior video quality when sources are forced to lower resolutions to support the least capable display in the system
- Secure and Isolated – Fiber inherently provides extra security and electrical isolation making it the transport method of choice for many mission-critical secure environments
- Field Serviceable Fiber Modules – Easily remove and replace SFP modules in the field
*See Duplex models for bidirectional control over fiber. Simplex models do not support control transport over fiber (such as Ethernet, USB, IR, Serial Control or EDID); although when used as part of a complete Enova DGX solution, control can be provided if a supplemental independent network connection is used. See the "Instruction Manual – Enova DGX Digital Media Switchers" for details.
Thông số kỹ thuật
| Dimensions (HWD) | 1" x 8 3/4" x 5 1/5" (2.54 x 22.12 cm x 13.08 cm) |
| DxLink Fiber | Fiber Connector: LC Duplex conforming to ANSI TIA/EAI 604-10 (FOCIS 10A); Fiber Cable Type: 9/125µm; Fiber Cable Length: 10 km (6.21 miles) |
| USB (HID) | (1) USB Mini A/B Connector ("DEVICE") |
| Front Connectors | Advanced Configuration Interface: (1) USB Mini-B Connector ("PROGRAM") |

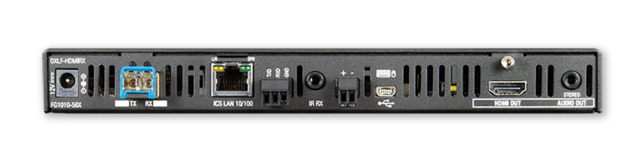

| Back Connectors | Local Power: 2.1 mm DC Power Jack; DXLink Fiber Input: LC Duplex conforming to ANSI TIA/EAI 604-10 (FOCIS 10A); ICS LAN/Ethernet Port: (1) RJ-45 Connector |
| HDMI | Compatible Formats: HDMI, HDCP, DVI |
| HDMI Resolution Support | Progressive Resolution Support: All progressive resolutions between 480p and 1920 x 1200 @ 60 Hz via automatic SmartScale query of the display's preferred DID Detailed Timing Definition; Interlaced Resolution Support: 480i, 576i, 1080i |
| HDMI Audio Support | Audio Format Support: Dolby TrueHD, Dolby Digital, DTS-HD Master Audio, DTS, 2 CH through 8 CH L-PCM, Dolby Digital and DTS support up to 48kHz, 5.1 channels; Audio Resolution: 16 bit to 24 bit |
| HDCP | HDCP Support: Yes |
| Stereo Audio | Output Connections: 3.5mm Mini-Stereo Jack; Output Signal Types: Stereo Analog |
| Power Supply | External, Included: Each HDMI RX ships with a desktop power supply with power cord, 2.5 A @ 12 V, Max 13.5 V |
| Compatible AMX Products | Enova DGX 800/1600/3200/6400 Digital Media Switchers with Single Mode Fiber Output Board installed including DGX-O-DXF-SMS or DGX-O-DXF-SMD; Direct point-to-point connection with a Single Mode Fiber Transmitter including DXF-TX-SMS or DXF-TX-SMD |
| FG Numbers | FG1010-561 |
Hỗ trợ Tư vấn viênNOTE: The most current and complete specifications for this product are found in the data sheet. Specifications are subject to change.
