HPX-N102-ETH-R

Cat6-Ethernet-Modul mit einziehbarem Kabel

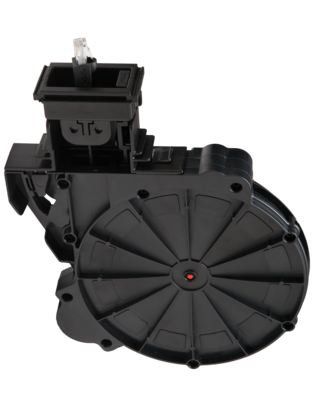

HPX-N102-ETH-R_Module
Größere Bilder

The HydraPort® Category 6 Ethernet Module with Retractable Cable delivers a compact, easy to install solution that organizes and hides cables in virtually any type of conference table, including narrow tables, and those with glass inlay.

Mehr Details

Learn important installation, configuration and programming techniques in the following course(s) from Harman Professional University:

  • Getting Started with HydraPort

 For schedules and registration for these and any Harman Professional University courses, visit College of AMX.

Videos





configuration_tool

HydraPort Connection Preview Configuration Tool

Downloads

CAD Drawings
  Größe Hochgeladen
file type icon Pictorial Drawing - HPX-N102-ETH-R Cat6 Ethernet Module with Retractable Cable (PDF)
aktualisiert: Okt 2020
1,06 MB Okt 2020
file type icon Pictorial Drawing - HPX-N102-ETH-R Cat6 Ethernet Module with Retractable Cable (DXF)
aktualisiert: Okt 2020
3,87 MB Okt 2020
file type icon Pictorial Drawing - HPX-N102-ETH-R Cat6 Ethernet Module with Retractable Cable (DWG)
aktualisiert: Okt 2020
1,53 MB Okt 2020
Quick Start Guides
  Version Größe Hochgeladen
file type icon Quick Start Guide - HPX-N102-ETH-R Cat6 Ethernet Module with Retractable Cable
Version B, aktualisiert: Okt 2020
B  336 KB Okt 2020
Safety Sheets
  Version Größe Hochgeladen
file type icon Safety Instructions - HydraPort
Version E, aktualisiert: Jan 2024
E  1,25 MB Jan 2024
Data Sheets
  Größe Hochgeladen
file type icon Data Sheet - HydraPort Modules
aktualisiert: Apr 2024
1,02 MB Apr 2024
Configuration Tools
  Größe Hochgeladen
file type icon HydraPort Connection Preview Configuration Tool
aktualisiert: Mär 2021
Mär 2021

Falls einer der obigen Links zu seltsamen Zeichen in Ihrem Browser führt, klicken Sie bitte mit der rechten Maustaste auf die Datei, um sie auf Ihrem Computer zu speichern.

Eigenschaften

  • No Assembly, Adjustments or Terminations – Module installs quickly and easily with no special mounting

Spezifikationen

Dimensions

1 1/2 HydraPort Units (See the HPX-600, HPX-900 or HPX-1200 specifications section for an explanation of HydraPort units)
Weight Approximately 1lb (0.46 Kg)
Integrated Cable
  • Ethernet Cat6 Retractable Cable
  • Pullout Length: 5 ft (1.52m)
  • Pigtail: 5 ft (1.52m)
  • Pigtail Connector: RJ-45 Male
  • Data Rate: 1000Base-T (Gigabit Ethernet)
Front Panel Components Pull-Out Connector: RJ-45 Male
Long-Term Reliability Tested to 10,000 pull and release cycles
Recommended Accessories CBL-ETH-FL2, Cat6 Ethernet Flat Cable (FG10-2194-16)
FG Numbers FG552-34
