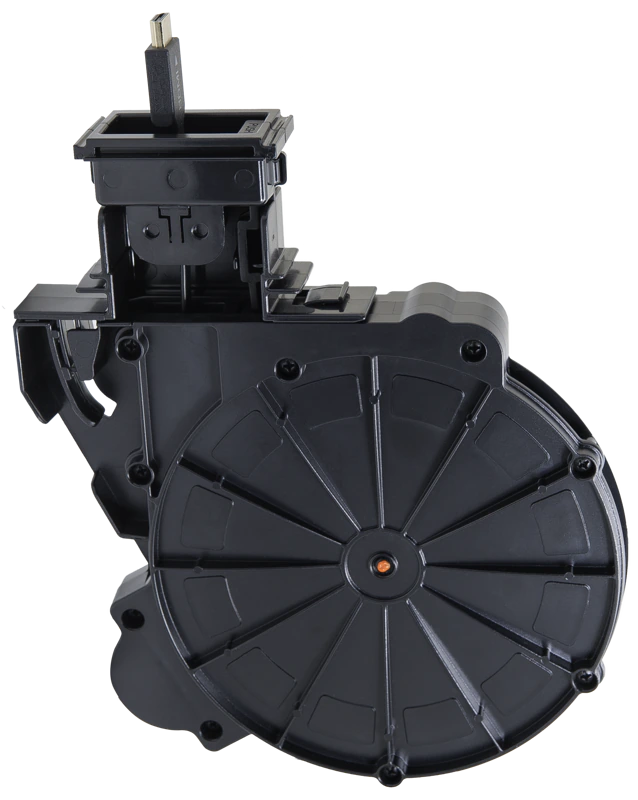

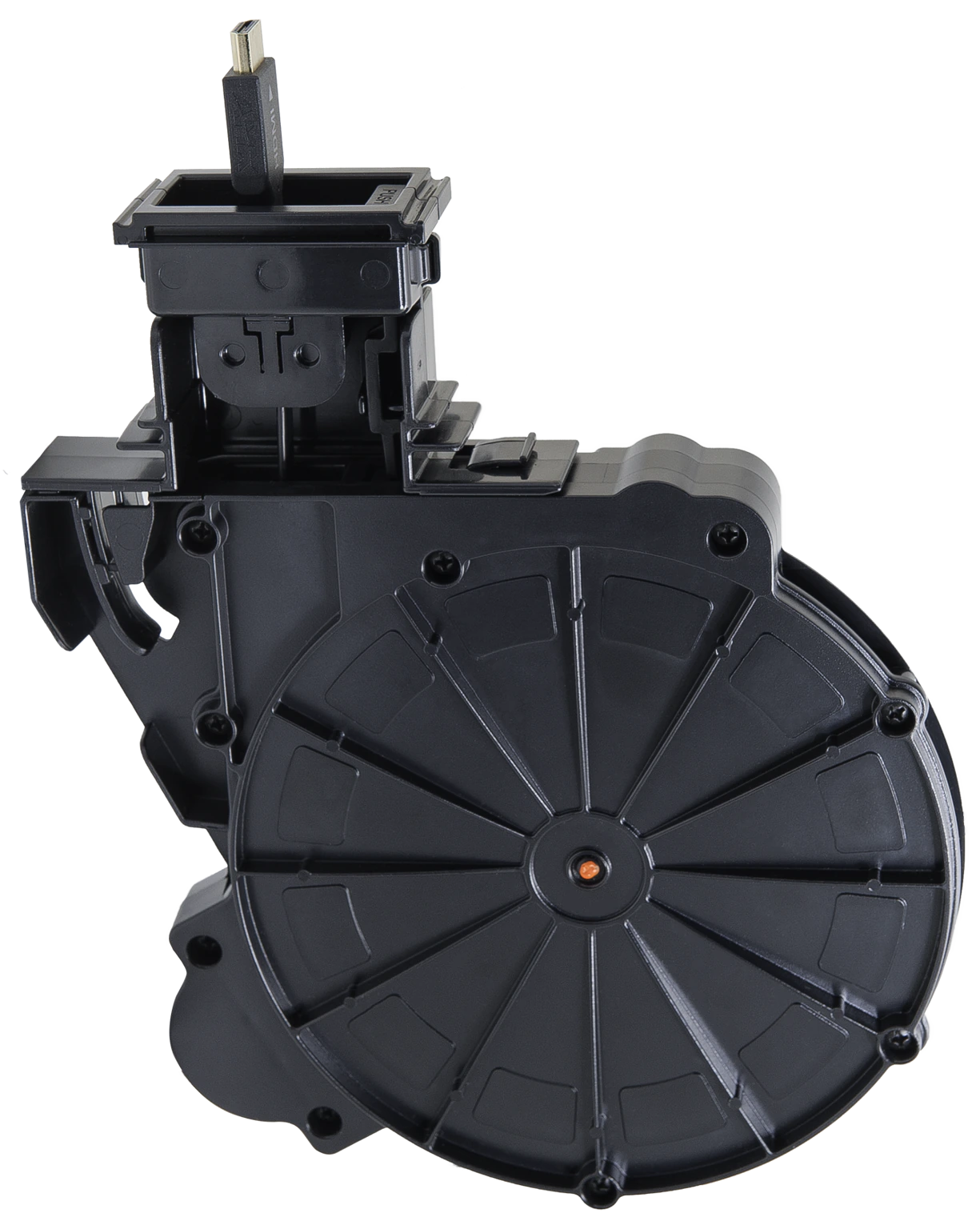

The HydraPort® HDMI 4K60 Module with Retractable Cable delivers digital video in resolutions up to 4K @60Hz. The compact, easy to install solution organizes and hides cables in virtually any type of conference table, including narrow tables, and those with glass inlay.
Größere Bilder
Mehr Details
Learn important installation, configuration and programming techniques in the following course(s) from Harman Professional University:
- Getting Started with HydraPort
For schedules and registration for these and any Harman Professional University courses, visit College of AMX.
Videos
configuration_tool
Downloads
CAD Drawings
| Größe | |
|
|
1,04 MB |
|
|
3,63 MB |
|
|
886 KB |
Quick Start Guides
| Größe | |
|
|
344 KB |
Safety Sheets
| Größe | |
|
|
1,25 MB |
Data Sheets
| Größe | |
|
|
1,02 MB |
Configuration Tools
| Größe | |
|
|
Falls einer der obigen Links zu seltsamen Zeichen in Ihrem Browser führt, klicken Sie bitte mit der rechten Maustaste auf die Datei, um sie auf Ihrem Computer zu speichern.
Eigenschaften
- No Assembly, Adjustments or Terminations – Module installs quickly and easily with no special mounting
- Flat, High-Speed HDMI cable – With support for resolutions up to 4K @60Hz, the cable ensures absolute best picture quality in a compact design
Spezifikationen
| Dimensions | 1 1/2 HydraPort Units (See the HPX-600, HPX-900 or HPX-1200 specifications section for an explanation of HydraPort units) |
| Weight | Approximately 1lb (0.46 Kg) |
| Integrated Cable |
|
| Front Panel Components | Pull-Out Connector: HDMI Male |
| Long-Term Reliability | Tested to 10,000 pull and release cycles |
| FG Numbers | FG552-32 |
recommended_accessories
-
HPX-600
6 HydraPort Unit Enclosure -
HPX-900
9 HydraPort Unit Gehäuse -
HPX-1200
12 HydraPort Unit Enclosure -
HPX-600-NA
6 HydraPort Unit Enclosure mit US-Stromauslass -
HPX-900-NA
9 HydraPort Unit Enclosure mit US-Stromauslass -
HPX-1200-NA
12 HydraPort Unit Enclosure mit US-Stromsteckdose
