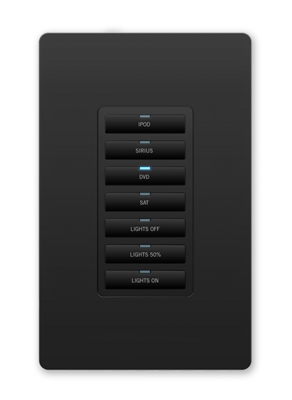

The MET-7E Metreau 7-Button Keypad offers 7 double-width buttons that can be used as an individual keypad or in conjunction with the 7 and 13-Button Metreau Ethernet Expansion Keypads. The Keypad connects to the controller via Ethernet, which simplifies installation and connectivity.
Grandes images
plus de détails
Great keypad for control of a variety of devices in applications such as hospitals, residences, MDUs and other applications.
Configuration_tool
Téléchargements
Manuals
| Taille | |
|
|
2,57 Mo |
BIM Objects
| Taille | |
|
|
Firmware
| Taille | |
|
|
300 ko |
Quick Start Guides
| Taille | |
|
|
174 ko |
Safety Sheets
| Taille | |
|
|
80,8 ko |
A&E (Architectural & Engineering) Specifications
| Taille | |
|
|
55,5 ko |
Configuration Tools
| Taille | |
|
|
556 ko |
|
|
Data Sheets
| Taille | |
|
|
362 ko |
Si l'un des liens ci-dessus affiche des caractères étranges dans votre navigateur, faites un clic droit sur le fichier pour l'enregistrer sur votre ordinateur.
Caractéristiques
- Connects via Standard Protocols (Ethernet) – Simplifies cabling and installation by minimizing cable runs
- Daisy Chain up to Three Keypads – Provides the ability to connect up to three keypads using one IP address
- Fits in Decor Style Wall Plates – Simplifies installation and looks great
- Blue LEDs Glow to Indicate Button Selection – Improves usability by confirming the user's choice selection
- Bottom Button Can Act as Single or Two Buttons – Provides added flexibility to the configuration
NOTE: Keypad wallplates not included. See ALD-CW-1, ALD-CW-2, ALD-CW-3.
Caractéristiques techniques
| Dimensions (HWD) | Keypad and Mounting Plate: 4" x 1 3/4" x 1" (10.3 cm x 4.5 cm x 2.5 cm) |
| Mounting | Mounts into standard decor-style wallplates |
| Front Panel Components | Pushbuttons available in a variety of field replaceable pre-printed buttons with blue LED indicators |
| Rear Panel Components | (1) RJ-45 Ethernet Connector, 10/100, (2) 8-pin, 0.100” (2.54 mm) IDC-type male header |
| Power | PoE (Power over Ethernet), 802.3af, class 0, Power Connector: (1) RJ-45 Ethernet Connector, 10/100 |
| FG Numbers | FG5793-03-WH (White) |
| JITC Status | Approved - 04/2023 |
Recommended_accessories
-
HPX-U400-R-MET-7E
Kit de Rampe pour Clavier Ethernet Metreau® 7 Boutons -
PS-POE-AF-TC
Injecteur PoE, conforme 802.3AF
Assistance aux consultantsNOTE: The most current and complete specifications for this product are found in the data sheet. Specifications are subject to change.
