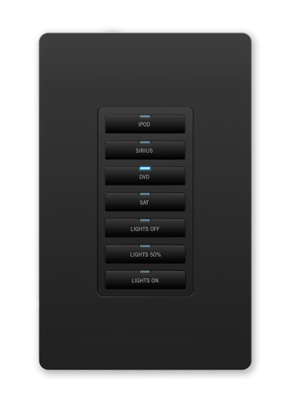

The MET-7E Metreau 7-Button Keypad offers 7 double-width buttons that can be used as an individual keypad or in conjunction with the 7 and 13-Button Metreau Ethernet Expansion Keypads. The Keypad connects to the controller via Ethernet, which simplifies installation and connectivity.
Larger Images
Common Applications
Great keypad for control of a variety of devices in applications such as hospitals, residences, MDUs and other applications.
Configuration Tool
Downloads
| Size | ||||
Data Sheet
updated: Sep 2023
|
306 KB | |||
Manuals | ||||
|
Instruction Manual - Metreau Keypads
updated: Mar 2018
|
2.57 MB | |||
Bim Objects | ||||
MET-7E - BIM Object
updated: Aug 2019
|
||||
Firmware | ||||
|
Keypads with Ethernet Firmware
version 1.2.33,
updated: Jun 2020
|
300 KB | |||
Quick Start Guides | ||||
|
Quick Start Guide - MET-7E Metreau 7-Button Ethernet Keypad
updated: Mar 2018
|
174 KB | |||
Safety Sheets | ||||
|
Safety Instructions - Metreau Keypads
updated: Mar 2018
|
80.8 KB | |||
Whitepapers | ||||
|
AMX AV/IT Administrator's Guide
updated: Oct 2020
|
2.61 MB | |||
A&E (Architectural & Engineering) Specifications | ||||
|
A&E Spec - MET-7E Metreau 7-Button Ethernet Keypad
updated: Jun 2018
|
55.5 KB | |||
Configuration Tools | ||||
|
Metreau Keypad Ordering Guide
updated: Jan 2021
|
556 KB | |||
|
Metreau Keypad Configuration Tool
updated: Mar 2021
|
||||
If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.
Features
- Connects via Standard Protocols (Ethernet) – Simplifies cabling and installation by minimizing cable runs
- Daisy Chain up to Three Keypads – Provides the ability to connect up to three keypads using one IP address
- Fits in Decor Style Wall Plates – Simplifies installation and looks great
- Blue LEDs Glow to Indicate Button Selection – Improves usability by confirming the user's choice selection
- Bottom Button Can Act as Single or Two Buttons – Provides added flexibility to the configuration
NOTE: Keypad wallplates not included. See ALD-CW-1, ALD-CW-2, ALD-CW-3.
Specifications
| Dimensions (HWD) | Keypad and Mounting Plate: 4" x 1 3/4" x 1" (10.3 cm x 4.5 cm x 2.5 cm) |
| Mounting | Mounts into standard decor-style wallplates |
| Front Panel Components | Pushbuttons available in a variety of field replaceable pre-printed buttons with blue LED indicators |
| Rear Panel Components | (1) RJ-45 Ethernet Connector, 10/100, (2) 8-pin, 0.100” (2.54 mm) IDC-type male header |
| Power | PoE (Power over Ethernet), 802.3af, class 0, Power Connector: (1) RJ-45 Ethernet Connector, 10/100 |
| FG Numbers | FG5793-03-WH (White) |
Recommended Accessories
-
HPX-U400-R-MET-7E
Metreau® 7-Button Ethernet Keypad Ramp Kit -
PS-POE-AF-TC
PoE Injector, 802.3AF Compliant
Dealer Finder
Have a Question?
Consultant SupportNOTE: The most current and complete specifications for this product are found in the data sheet. Specifications are subject to change.
MET-7E
Metreau® 7-Button Ethernet Keypad
