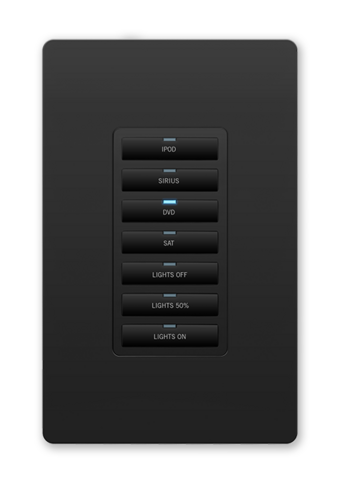

The MET-7X Metreau 7-Button Expansion Keypad connects to any adjacent Metreau Ethernet Keypad (MET-6NE, MET-7E or MET-13E) via ribbon-cable to add additional control points in the same location.
Grandes images
plus de détails
Ideal for classrooms, conference rooms, residences or hotels that require multiple adjacent control points.
Téléchargements
Documents
| Taille | |
Data Sheet
mis à jour : avr. 2026
|
297 ko |
Manuals
| Taille | |
|
|
2,57 Mo |
CAD Drawings
| Taille | |
|
|
152 ko |
|
|
3,45 Mo |
|
|
912 ko |
BIM Objects
| Taille | |
|
|
Firmware
| Taille | |
|
|
300 ko |
Quick Start Guides
| Taille | |
|
|
162 ko |
Safety Sheets
| Taille | |
|
|
80,8 ko |
A&E (Architectural & Engineering) Specifications
| Taille | |
|
|
55 ko |
Si l'un des liens ci-dessus affiche des caractères étranges dans votre navigateur, faites un clic droit sur le fichier pour l'enregistrer sur votre ordinateur.
Caractéristiques
- Simple Connection – Connect up to three keypads with one IP address to optimize the room’s network design
- Power Over Ethernet (PoE) Compatible – The Expansion Keypad receives power from the Metreau Ethernet Keypad it is connected to (options include MET-6NE, MET-7E and MET-13E) via the ribbon cable
NOTE: Keypad wallplates not included. See ALD-CW-1, ALD-CW-2, ALD-CW-3.
Caractéristiques techniques
| Dimensions (HWD) | Keypad and Mounting Plate: 4" x 1 3/4" x 1" (10.3 cm x 4.5 cm x 2.5 cm) |
| Mounting | Mounts into standard decor-style wallplates |
| Front Panel Components | Pushbuttons available in a variety of field replaceable pre-printed buttons with blue LED indicators |
| Rear Panel Components | (2) 8-pin, 0.100” (2.54 mm) IDC-type male header |
| Power | The Expansion Keypad receives power from the Metreau Ethernet Keypad it is connected to (options include MET-6NE, MET-7E and MET-13E) via the ribbon cable. See Data Sheet for details. |
| FG Numbers | FG5793-13-WH (White) |
Assistance aux consultantsNOTE: The most current and complete specifications for this product are found in the data sheet. Specifications are subject to change.
