MET-7X (discontinued)

Metreau® 7-Button Ethernet Expansion Keypad

Larger Images

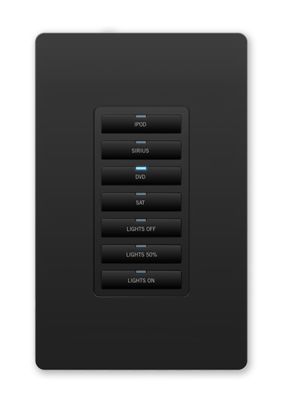

The MET-7X Metreau 7-Button Expansion Keypad connects to any adjacent Metreau Ethernet Keypad (MET-6NE, MET-7E or MET-13E) via ribbon-cable to add additional control points in the same location.

Common Applications

Ideal for classrooms, conference rooms, residences or hotels that require multiple adjacent control points.

Documentation

Downloads

  Version Language Size Uploaded
Data Sheet     297 KB Jul 09, 2018
Manuals
Instruction Manual - Metreau Keypads     2.57 MB Mar 28, 2018
CAD Drawings
Pictorial Drawing - MET-7X 7-Button Ethernet Expansion Keypad (PDF)     152 KB Apr 09, 2018
Pictorial Drawing - MET-7X 7-Button Ethernet Expansion Keypad (DXF)     3.45 MB Apr 09, 2018
Pictorial Drawing - MET-7X 7-Button Ethernet Expansion Keypad (DWG)     912 KB Apr 09, 2018
Software
Keypads with Ethernet Firmware 1.2.14    312 KB Mar 15, 2018
Quick Start Guides
Quick Start Guide - MET-7X Metreau 7-Button Ethernet Expansion Keypad     162 KB Mar 28, 2018
Safety Sheets
Safety Instructions - Metreau Keypads     80.8 KB Mar 29, 2018
Whitepapers
AMX AV/IT Administrator's Guide     2.61 MB Apr 25, 2018
A&E (Architectural & Engineering) Specifications
A&E Spec - MET-7X Metreau 7-Button Ethernet Expansion Keypad     55 KB Jun 28, 2018

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Features

  • Simple Connection – Connect up to three keypads with one IP address to optimize the room’s network design
  • Power Over Ethernet (PoE) Compatible – The Expansion Keypad receives power from the Metreau Ethernet Keypad it is connected to (options include MET-6NE, MET-7E and MET-13E) via the ribbon cable



NOTE: Keypad wallplates not included. See ALD-CW-1, ALD-CW-2, ALD-CW-3.

Specifications

Dimensions (HWD) Keypad and Mounting Plate: 4" x 1 3/4" x 1" (10.3 cm x 4.5 cm x 2.5 cm)
Mounting Mounts into standard decor-style wallplates
Front Panel Components Pushbuttons available in a variety of field replaceable pre-printed buttons with blue LED indicators
Rear Panel Components (2) 8-pin, 0.100” (2.54 mm) IDC-type male header
Power The Expansion Keypad receives power from the Metreau Ethernet Keypad it is connected to (options include MET-6NE, MET-7E and MET-13E) via the ribbon cable. See Data Sheet for details.
FG Numbers

FG5793-13-WH (White)
FG5793-13-BL (Black)
