AMX MKP-106

Grandes images

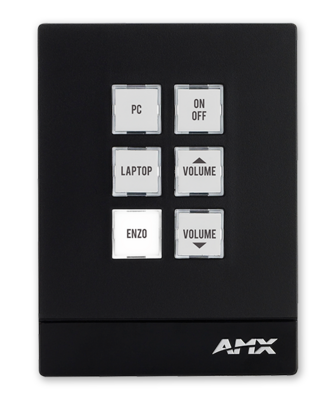

The MKP-106 / 6-Button Massio Keypad is a keypad-only version of the MCP-106 Massio ControlPad. The MKP-106 provides sleek Massio styling in any room, serving as a second user interface or as a primary UI in spaces that already contain a separate controller. The MKP-106 includes large, easy-to-read buttons in a stylish design that makes it simple for users to manage complex tasks with a single button press during meetings or classes. The Keypad connects to the controller via Ethernet, which simplifies installation and connectivity.

plus de détails

Ideal for small spaces utilizing NetLinx control, providing the ability to utilize customized code and additional ports of NetLinx Controllers, while maintaining a consistent user experience as the RPM-enabled Massio ControlPads.
Perfect for Massio rooms requiring a second user interface in the same form factor to act as a client keypad to the Massio ControlPad.

Téléchargements

Documents

	Taille	Téléchargé
Data Sheet mis à jour : avr. 2026	285 ko	avr. 2026

Manuals

	Taille	Téléchargé
Massio ControlPads Custom Button Labeling Guide mis à jour : déc. 2018	1,34 Mo	déc. 2018
Instruction Manual - Massio ControlPads and Keypads mis à jour : mars 2018	1,03 Mo	mars 2018

CAD Drawings

	Taille	Téléchargé
Pictorial Drawing - MKP-106L Massio 6-Button Keypad, Landscape (DWG) mis à jour : oct. 2020	168 ko	oct. 2020
Pictorial Drawing - MKP-106L Massio 6-Button Keypad, Landscape (DXF) mis à jour : oct. 2020	897 ko	oct. 2020
Pictorial Drawing - MKP-106L Massio 6-Button Keypad, Landscape (PDF) mis à jour : oct. 2020	101 ko	oct. 2020
Pictorial Drawing - MKP-106P Massio 6-Button Keypad, Portrait (DWG) mis à jour : oct. 2020	199 ko	oct. 2020
Pictorial Drawing - MKP-106P Massio 6-Button Keypad, Portrait (DXF) mis à jour : oct. 2020	855 ko	oct. 2020
Pictorial Drawing - MKP-106P Massio 6-Button Keypad, Portrait (PDF) mis à jour : oct. 2020	96,1 ko	oct. 2020

BIM Objects

	Taille	Téléchargé
MKP-106L - BIM Object mis à jour : août 2019		août 2019

Firmware

	Version	Taille	Téléchargé
Keypads with Ethernet Firmware version 1.2.33, publié : juin 2020	1.2.33	300 ko	juin 2020

Quick Start Guides

	Taille	Téléchargé
Quick Start Guide - MKP-106 Massio 6-Button Keypad mis à jour : mars 2018	327 ko	mars 2018

Safety Sheets

	Taille	Téléchargé
Safety Instructions - Massio ControlPads and Keypads mis à jour : mars 2018	84,8 ko	mars 2018

Si l'un des liens ci-dessus affiche des caractères étranges dans votre navigateur, faites un clic droit sur le fichier pour l'enregistrer sur votre ordinateur.

Caractéristiques

Consistent Massio Aesthetics & Form Factor – Provides consistent look-and-feel in existing installations with Massio, with the same models and sizes as the Massio ControlPads
Massio Styling in Customized Rooms – Provides Massio-style UI in rooms that require a separate controller
Connects Via Standard Protocols (PoE) – Simplifies cabling and installation by minimizing cable runs and eliminates the need for power at the keypad location

Caractéristiques techniques

Dimensions (HWD)	Portrait: 4 11/16" x 3 7/16" x 9/16" (119 mm x 87.5 mm x 13.9 mm), Landscape: 3 7/16" x 4 11/16" x 9/16" (87.5 mm x 119 mm x 13.9 mm)
Weight	Approximately .25 lbs (.11 kg)
Mounting	Mount onto standard 1 gang US, UK, or EU back boxes
Power Consumption	Typical: 4.5 Watts, Voltage, DC (Typical): PoE (37V-57V), Voltage DC Range: 37 V-57 V per 802.3af spec, Power Connector: (1) RJ-45 Ethernet
Memory	Flash: 4 GB, Memory Card: 4 GB SD, DDRAM: 256 MB
Program Port	(1) USB Mini-B, USB
ID Pushbutton	Reset factory settings, reset factory image, toggle between DHCP or static IP addressing mode
FG Numbers	FG5793-06P-W (Portrait, White) FG5793-06P-BL (Portrait, Black) FG5793-06L-W (Landscape, White) FG5793-06L-BL (Landscape, Black)
JITC Status	Approved - 04/2023
