MKP-106

6-Button Massio™ Keypad (US, UK, EU)

MKP-106
Larger Images

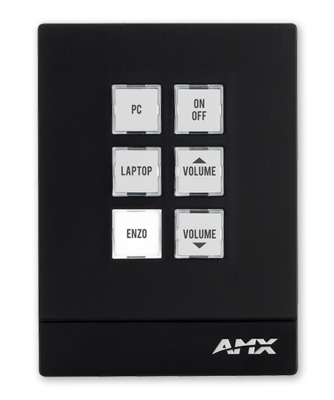

The MKP-106 / 6-Button Massio Keypad is a keypad-only version of the MCP-106 Massio ControlPad. The MKP-106 provides sleek Massio styling in any room, serving as a second user interface or as a primary UI in spaces that already contain a separate controller. The MKP-106 includes large, easy-to-read buttons in a stylish design that makes it simple for users to manage complex tasks with a single button press during meetings or classes. The Keypad connects to the controller via Ethernet, which simplifies installation and connectivity.

Common Applications

  • Ideal for small spaces utilizing NetLinx control, providing the ability to utilize customized code and additional ports of NetLinx Controllers, while maintaining a consistent user experience as the RPM-enabled Massio ControlPads.
  • Perfect for Massio rooms requiring a second user interface in the same form factor to act as a client keypad to the Massio ControlPad.

Downloads

  Version Language Size Uploaded
file type icon Data Sheet
updated: Mar 2024
    285 KB Mar 2024
Manuals
file type icon Massio ControlPads Custom Button Labeling Guide
updated: Dec 2018
    1.34 MB Dec 2018
file type icon Instruction Manual - Massio ControlPads and Keypads
updated: Mar 2018
    1.03 MB Mar 2018
CAD Drawings
file type icon Pictorial Drawing - MKP-106L Massio 6-Button Keypad, Landscape (DWG)
updated: Oct 2020
    168 KB Oct 2020
file type icon Pictorial Drawing - MKP-106L Massio 6-Button Keypad, Landscape (DXF)
updated: Oct 2020
    897 KB Oct 2020
file type icon Pictorial Drawing - MKP-106L Massio 6-Button Keypad, Landscape (PDF)
updated: Oct 2020
    101 KB Oct 2020
file type icon Pictorial Drawing - MKP-106P Massio 6-Button Keypad, Portrait (DWG)
updated: Oct 2020
    199 KB Oct 2020
file type icon Pictorial Drawing - MKP-106P Massio 6-Button Keypad, Portrait (DXF)
updated: Oct 2020
    855 KB Oct 2020
file type icon Pictorial Drawing - MKP-106P Massio 6-Button Keypad, Portrait (PDF)
updated: Oct 2020
    96.1 KB Oct 2020
Bim Objects
file type icon MKP-106L - BIM Object
updated: Aug 2019
    Aug 2019
Firmware
platform icon Keypads with Ethernet Firmware
version 1.2.33, updated: Jun 2020
1.2.33     300 KB Jun 2020
Quick Start Guides
file type icon Quick Start Guide - MKP-106 Massio 6-Button Keypad
updated: Mar 2018
    327 KB Mar 2018
Safety Sheets
file type icon Safety Instructions - Massio ControlPads and Keypads
updated: Mar 2018
    84.8 KB Mar 2018

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Features

  • Consistent Massio Aesthetics & Form Factor – Provides consistent look-and-feel in existing installations with Massio, with the same models and sizes as the Massio ControlPads
  • Massio Styling in Customized Rooms – Provides Massio-style UI in rooms that require a separate controller
  • Connects Via Standard Protocols (PoE) – Simplifies cabling and installation by minimizing cable runs and eliminates the need for power at the keypad location

Specifications

Dimensions (HWD) Portrait: 4 11/16" x 3 7/16" x 9/16" (119 mm x 87.5 mm x 13.9 mm), Landscape: 3 7/16" x 4 11/16" x 9/16" (87.5 mm x 119 mm x 13.9 mm)
Weight Approximately .25 lbs (.11 kg)
Mounting Mount onto standard 1 gang US, UK, or EU back boxes
Power Consumption Typical: 4.5 Watts, Voltage, DC (Typical): PoE (37V-57V), Voltage DC Range: 37 V-57 V per 802.3af spec, Power Connector: (1) RJ-45 Ethernet
Memory Flash: 4 GB, Memory Card: 4 GB SD, DDRAM: 256 MB
Program Port (1) USB Mini-B, USB
ID Pushbutton Reset factory settings, reset factory image, toggle between DHCP or static IP addressing mode
FG Numbers

FG5793-06P-W (Portrait, White)
FG5793-06P-BL (Portrait, Black)
FG5793-06L-W (Landscape, White)
FG5793-06L-BL (Landscape, Black)
