NMX-ENC-N2312-C Encoder Card

N2300 Series 4K UHD Video over IP Card Encoder with KVM, PoE

Grandes images

The NMX-ENC-N2312 Encoder and NMX-DEC-N2322 Decoder provide a flexible, feature-rich, and simple-to-deploy Digital Media Distribution and Switching solution that can be used in 4K applications with resolutions up to 4096x2160, with support for HDCP 2.2. This motion-based wavelet codec solution delivers video with nearly imperceptible latency at an incredibly low 200 Mb/s bandwidth allowing 4K distribution over standard gigabit Ethernet networks.

Any source can be sent to one or more displays by routing through layer-2 / layer-3 switches utilizing standard Cat5e cable. The NMX-ENC-N2312 includes standard features like input scaling, bi-directional serial, IR, embedded 7.1 audio, and KVMover- IP extension. It also comes in a card version compatible with SVSI's N9206 card cage for high-density applications.















  Version Language Size Uploaded
file type icon Direct Control API - NMX-ENC-N2312, NMX-DEC-N2322 4K Series
updated: oct. 2020
    180 ko oct. 2020
file type icon Instruction Manual - NMX-ENC-N2312, NMX-DEC-N2322 4K Series
updated: déc. 2020
    4,61 Mo déc. 2020
file type icon NetLinx Control for N-Series Products Documentation Addendum
updated: oct. 2020
    1,05 Mo oct. 2020
platform icon SVSI N-Able PC
version 5.1.6, updated: jan. 2024
5.1.6     114 Mo jan. 2024
platform icon SVSI SNMP MIB
updated: juil. 2020
    9,8 ko juil. 2020
platform icon SVSI N-Able Mac
version 5.1.4, updated: fév. 2024
5.1.4     240 Mo fév. 2024
platform icon SVSI N23xx Series Encoder and Decoder Firmware Updater
version 1.1.28, updated: fév. 2023
1.1.28     28 Mo fév. 2023
Quick Start Guides
file type icon Quick Start Guide - SVSI N2312/N2322 4K Series
updated: oct. 2020
    299 ko oct. 2020
Product Guides
file type icon Product Guide - N-Series Minimum Network Requirement
version B, updated: oct. 2023
  166 ko oct. 2023
file type icon NET-SVSI-MIB.txt
updated: août 2021
    94,5 ko août 2021
file type icon Product Guide - N-Series Stream Compatibility Guide
version A, updated: mai 2023
  380 ko mai 2023
file type icon Product Guide - N-Series Video Wall/Crop Limitation
updated: oct. 2020
    72,8 ko oct. 2020
Programming Guides
file type icon Zoom Room Controls – SVSI Encoder Configuration Example
version 0.1.5, updated: sept. 2021
0.1.5    132 ko sept. 2021
Install Guides
file type icon SVSI Networked AV - Pre-Implementation Guide
updated: août 2023
    1,15 Mo août 2023
Data Sheets
file type icon NMX-ENC-N2312, 4K UHD Video over IP Encoder with KVM, PoE
updated: juil. 2018
    475 ko juil. 2018
Device Modules
file type icon Duet Control Module – N2312
updated: nov. 2023
    nov. 2023

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.


  • Design Flexibility — Start as small as 1x1 and grow the system in increments of single sources and devices by simply adding additional encoders and decoders
  • Advanced Security including SSL/TLS and HTTPS — Satisfies enterprise network security requirements.
  • Infrared (IR) — Emitter connection allows control of IR-only display devices
  • Fast Install — With Phoenix connectors for Power, IR, RS232 serial, and analog audio interfaces
  • Balanced and Unbalanced Audio — Embedded 7.1 digital audio or balanced/unbalanced analog audio
  • Pass Through HDMI — allows easy installation with local display such as desktop PC applicaitons
  • Multiple Connection Options — RJ-45 and SFP network connectors and HDMI video connections
  • KVM — Single USB-B for KVM applications
  • Native NetLinx — NetLinx Studio will easily recognize the device

Caractéristiques techniques

    • Digital Video Input
      • HDMI 2.0, DVI-D* (through adapter), Dual-Mode DisplayPort (DP++)*

*These signal types are supported through a passive adapter

    • Analog Video Input: HD-15 VGA
    • Video Output
      • Network video over Ethernet via RJ45 port or SFP via 1G SFP+ port, HDMI, DVI-D*

*These signal types are supported through a passive adapter

    • Formats
      • HDMI 2.0, DVI-D (through adapter), Dual-Mode DisplayPort (DP++), HDCP 2.2 content protection support, RGBHV
      • DVI-D and Dual-Mode DisplayPort (DP++) are supported through a passive adapter
    • Progressive Input Resolutions
      • Supports 4K30 4:2:0 and most common HD resolutions up to 1920x1200
      • See NMX-ENC-N2312 Installation Manual for all supported resolutions
      • HDMI and DVI (Progressive)
        • Pixel clock between 27 MHz – 300MHz
        • Minimum resolution of 720x480p60
        • Maximum horizontal resolution of 4096 or a vertical resolution of 2160*
        • Common acceptable resolutions include:
          720x480p60 – 480p, 720x576@50, 800x600p60, 1024x768p60, 1280x720@60Hz - 720p60, 1600x1200@60Hz, 1920x1080@60Hz - 1080p60, 3840x2160(4:2:0)@30Hz - UHD30 aka 4K30, 4096x2160(4:2:0)@30Hz - DCI 4K30
    • Interlaced Input Resolutions
      • Supports 1080i60
      • See NMX-ENC-N2312 Installation Manual for all supported resoltuions
      • HDMI and DVI (Interlaced)
        • 1920x1080@50Hz - 1080i50
        • 1920x1080@60Hz - 1080i60

Note: Interlaced resolutions will be de-interlaced if scaled on the decoder; otherwise, the interlaced signal will pass through to the display

    • Analog Input Resolutions
      • Supports most common HD resolutions up to 1920x1200
      • See NMX-ENC-N2312 Installation Manual for all supported resoltuions
      • VGA
        • Pixel clock between 27 MHz - 165 MHz
        • Minimum resolution of 640x480
        • Maximum horizontal resolution of 1920 or a vertical resolution of 1200
        • Common acceptable resolutions include:
          640x480p60, 720x480p60 – 480p, 720x576@50,800x600p60, 1024x768@60Hz, 1280x720@50Hz (720p50), 1280x720@60Hz (720p60), 1280x768@60Hz, 1280x800@60Hz, 1280x960@60Hz, 1280x1024@60Hz, 1360x768@60Hz, 1366x768@60Hz, 1400x1050@60Hz, 1440x900@60Hz, 1600x1200@60Hz, 1680x1050@60Hz, 1920x1080@50Hz (1080p50), 1920x1080@60Hz (1080p60), 1920x1200@60Hz (reduced blanking)

Note: Input resolutions supported @60Hz refresh rates are also supported @59.94Hz

The N2312 Encoder does not accept Composite or SVideo (YC)

  • Analog-To-Digital Conversion: 8-bit 165 MHz per each of three color channels
  • Color Space: 4:2:0 4K30, 4:2:2 – HD
  • LocalPlay/HostPlay: 8 playlists
  • HostPlay: 1 image/list
  • Note: Jumbo Frames Required
  • Video Wall Construction: Supported within the NMX-DEC-N2322, the N2300 Series is not compatible with SVSI Windowing Processors at this time
  • Network Video Recording: Not compatible with SVSI NVR at this time
  • Input Signal Types: Embedded audio on HDMI (DVI-D through adapter) or Analog Stereo (Balanced or Unbalanced)
  • Output Signal Types: Ethernet, Embedded audio on HDMI or DVI-D (through adapter)
  • HDMI Audio Formats: 8ch PCM
  • Analog Audio Format: Stereo 2-channel
  • Analog-To-Digital Conversion: 48 kHz
Keyboard and Mouse Keyboard & Mouse: Connect the Decoder to the keyboard and mouse, and an N2300 Series Encoder to the PC being controlled
  • Latency
      • 17-ms at 60 fps for 1920x1080 and lower resolutions
      • 34-ms at 30 fps for 4K30

NOTE: This is the combined encode plus decode latency. Total latency from source to screen will also include any network latency. Scaling adds one frame of latency (17ms at 60fps)

  • Switching: Up to 1.5s delay, not seamless
  • Bandwidth: Approximately 160 Mb/s

Note: Minimum bandwidth is 50 Mb/s for resolutions <= 1080p60

  • Ethernet - PO
    • 10/100/1000 Mbps, auto-negotiating, auto-sensing, full/half duplex, DHCP, Auto IP, and Static IP
  • Ethernet - P1
    • 1 Gbps port which accepts compatible fiber transceivers or direct attach cables, DHCP, Auto IP, and static IP
  • HDMI: HDCP, EDID management
  • +12V 2A: One 12 Volt DC power input
  • PO
    • 8-wire RJ45
    • 10/100/1000 Mbps 10/100/1000Base-T auto-sensing gigabit Ethernet switch port
    • Provides network connection, network AV video, and power to the Encoders and Decoders PoE power
  • P1
    • 1-Gbps SFP+ port (SFP+ fiber transceiver or direct attach cable not included)
    • Provides network connection and networked AV video
  • IR IN (front panel): 3-pin terminal Phoenix connector. Provides Infrared (IR) input only and passes signal back to connected decoder (33-60 kHz; typically 39 kHz) IR receiver is necessary (not included)
  • IR OUT
    • 2-pin terminal Phoenix connector
    • Provides Infrared (IR) output only (33-60 kHz; typically 39 kHz). Emitter is necessary (not included)
  • RS232
    • 3-pin terminal Phoenix connector which provides a serial control interface. Full duplex communication.
    • Available terminal speed settings: 1200-115200 baud rate
    • 5-pin terminal Phoenix connector which provides userselectable balanced/unbalanced input
    • Dedicated audio input
  • HDMI OUT: HDMI video output (passive pass-through from HDMI IN)
  • HDMI IN: HDMI video input
  • VGA IN: DB15 analog input
Controls and Indicators - Front Panel
  • RESET Button
    • Recessed pushbutton
    • Press to initiate a 'warm restart' causing the processor to reset, but not lose power. A reset does NOT affect the current settings
  • ID Button
    • Recessed pushbutton
    • Press to send a notification out on the network to identify the unit (the notification causes a pop-up dialog in N-Able and N-Command)
    • On solid (green) when operating power is supplied (via PoE or local power supply)
    • This activity is also shown by the PWR LED on the rear panel
    • On flashing (green) when there is software activity
    • This activity is also shown by the STAT LED on the rear panel

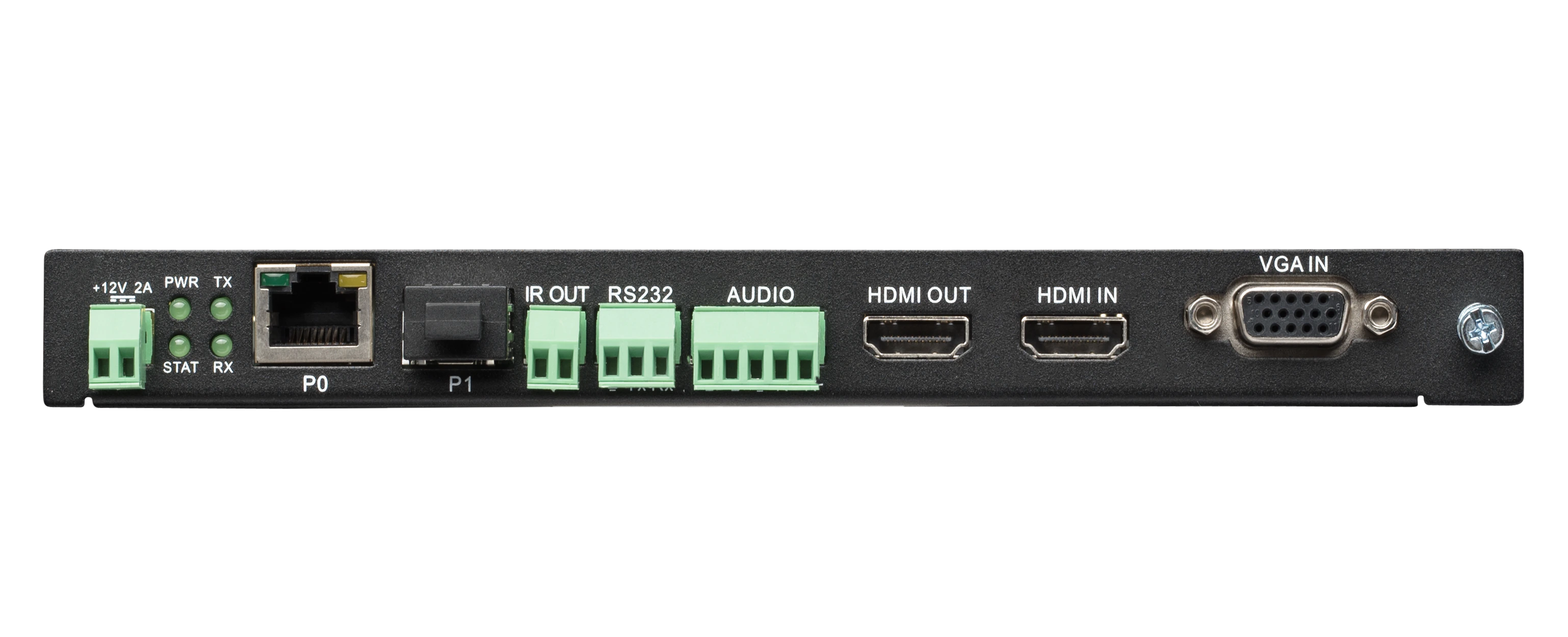

Controls and Indicators - Rear Panel
  • PWR LED: Same as POWER LED described above
  • HDMI LED: On (green) when there is a connection to a valid HDMI source but will not light for VGA source
  • STAT LED: Same as STATUS LED described above
  • STRM LED: On (green) when the unit is streaming video
  • FAN: None
  • Temperature: 32° to 104°F (0° to 40°C)
  • Humidity: 10% to 90% RH (non-condensing)
  • Heat Dissipation: Up to ~44 BTU/hr
  • Mounting Options
    • Regulatory Compliance: FCC, CE, and NTRL
    • Recommended Accessories NMX-ACC-N9206 (FGN9206), 2RU Rack Mount Cage with Power for Six SVSI N-Series Card Units
FG Numbers FGN2312-CD
