NMX-ENC-N2312-C Encoder Card

N2300 Series 4K UHD Video over IP Card Encoder with KVM, PoE

Larger Images

The NMX-ENC-N2312 Encoder and NMX-DEC-N2322 Decoder provide a flexible, feature-rich, and simple-to-deploy Digital Media Distribution and Switching solution that can be used in 4K applications with resolutions up to 4096x2160, with support for HDCP 2.2. This motion-based wavelet codec solution delivers video with nearly imperceptible latency at an incredibly low 200 Mb/s bandwidth allowing 4K distribution over standard gigabit Ethernet networks.

Any source can be sent to one or more displays by routing through layer-2 / layer-3 switches utilizing standard Cat5e cable. The NMX-ENC-N2312 includes standard features like input scaling, bi-directional serial, IR, embedded 7.1 audio, and KVMover- IP extension. It also comes in a card version compatible with SVSI's N9206 card cage for high-density applications.

Videos

N1000 Series Update Bring Ultra-Low Latency AV over IP to AMX SVSI



Using Networked AV is as Simple as 1-2-3



AMX SVSI Networked AV N1000, N2000, N3000 Series Encoders/Decoders



AMX SVSI Networked AV Panel Builder GUI for SVSI System Control



AMX SVSI Networked AV: Configuring N-Act On Board Control



AMX N2300 & N2400: Stunning 4K over Standard Gigabit Networks



Documentation

Downloads

  Version Language Size Uploaded
Manuals
NetLinx Control for N-Series Products Documentation Addendum     1.05 MB Jul 16, 2018
Instruction Manual - NMX-ENC-N2312, NMX-DEC-N2322 4K Series     3.97 MB Mar 22, 2018
Direct Control API - NMX-ENC-N2312, NMX-DEC-N2322 4K Series     180 KB Mar 22, 2018
Software
N-ABLE-PC 2018-01-29    124 MB Sep 18, 2018
SVSI SNMP MIB     9.8 KB Jul 20, 2018
SVSI N23xx Series Encoder and Decoder Firmware Updater 1.1.15    29.1 MB Aug 30, 2018
Quick Start Guides
Quick Start Guide - SVSI N2312/N2322 4K Series     299 KB Mar 22, 2018
Data Sheets
NMX-ENC-N2312, 4K UHD Video over IP Encoder with KVM, PoE     475 KB Jul 17, 2018
Install Guides
SVSI Networked AV - Pre-Implementation Guide     607 KB Mar 29, 2018
Product Guides
Product Guide - N-Series Minimum Network Requirement     88.8 KB Apr 12, 2018
Product Guide - N-Series Video Wall/Crop Limitation     72.8 KB Apr 12, 2018
Whitepapers
SVSI Stream Compatibility Guide System Design Guidelines     121 KB Apr 25, 2018

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Features

  • Design Flexibility — Start as small as 1x1 and grow the system in increments of single sources and devices by simply adding additional encoders and decoders
  • Advanced Security including SSL/TLS and HTTPS — Satisfies enterprise network security requirements.
  • Infrared (IR) — Emitter connection allows control of IR-only display devices
  • Fast Install — With Phoenix connectors for Power, IR, RS232 serial, and analog audio interfaces
  • Balanced and Unbalanced Audio — Embedded 7.1 digital audio or balanced/unbalanced analog audio
  • Pass Through HDMI — allows easy installation with local display such as desktop PC applicaitons
  • Multiple Connection Options — RJ-45 and SFP network connectors and HDMI video connections
  • KVM — Single USB-B for KVM applications
  • Native NetLinx — NetLinx Studio will easily recognize the device

Specifications

Video
    • Digital Video Input
      • HDMI 2.0, DVI-D* (through adapter), Dual-Mode DisplayPort (DP++)*

*These signal types are supported through a passive adapter

    • Analog Video Input: HD-15 VGA
    • Video Output
      • Network video over Ethernet via RJ45 port or SFP via 1G SFP+ port, HDMI, DVI-D*

*These signal types are supported through a passive adapter

    • Formats
      • HDMI 2.0, DVI-D (through adapter), Dual-Mode DisplayPort (DP++), HDCP 2.2 content protection support, RGBHV
      • DVI-D and Dual-Mode DisplayPort (DP++) are supported through a passive adapter
    • Progressive Input Resolutions
      • Supports 4K30 4:2:0 and most common HD resolutions up to 1920x1200
      • See NMX-ENC-N2312 Installation Manual for all supported resolutions
      • HDMI and DVI (Progressive)
        • Pixel clock between 27 MHz – 300MHz
        • Minimum resolution of 720x480p60
        • Maximum horizontal resolution of 4096 or a vertical resolution of 2160*
        • Common acceptable resolutions include:
          720x480p60 – 480p, 720x576@50, 800x600p60, 1024x768p60, 1280x720@60Hz - 720p60, 1600x1200@60Hz, 1920x1080@60Hz - 1080p60, 3840x2160(4:2:0)@30Hz - UHD30 aka 4K30, 4096x2160(4:2:0)@30Hz - DCI 4K30
    • Interlaced Input Resolutions
      • Supports 1080i60
      • See NMX-ENC-N2312 Installation Manual for all supported resoltuions
      • HDMI and DVI (Interlaced)
        • 1920x1080@50Hz - 1080i50
        • 1920x1080@60Hz - 1080i60

Note: Interlaced resolutions will be de-interlaced if scaled on the decoder; otherwise, the interlaced signal will pass through to the display

    • Analog Input Resolutions
      • Supports most common HD resolutions up to 1920x1200
      • See NMX-ENC-N2312 Installation Manual for all supported resoltuions
      • VGA
        • Pixel clock between 27 MHz - 165 MHz
        • Minimum resolution of 640x480
        • Maximum horizontal resolution of 1920 or a vertical resolution of 1200
        • Common acceptable resolutions include:
          640x480p60, 720x480p60 – 480p, 720x576@50,800x600p60, 1024x768@60Hz, 1280x720@50Hz (720p50), 1280x720@60Hz (720p60), 1280x768@60Hz, 1280x800@60Hz, 1280x960@60Hz, 1280x1024@60Hz, 1360x768@60Hz, 1366x768@60Hz, 1400x1050@60Hz, 1440x900@60Hz, 1600x1200@60Hz, 1680x1050@60Hz, 1920x1080@50Hz (1080p50), 1920x1080@60Hz (1080p60), 1920x1200@60Hz (reduced blanking)

Note: Input resolutions supported @60Hz refresh rates are also supported @59.94Hz

The N2312 Encoder does not accept Composite or SVideo (YC)

  • Analog-To-Digital Conversion: 8-bit 165 MHz per each of three color channels
  • Color Space: 4:2:0 4K30, 4:2:2 – HD
  • LocalPlay/HostPlay: 8 playlists
  • HostPlay: 1 image/list
  • Note: Jumbo Frames Required
  • Video Wall Construction: Supported within the NMX-DEC-N2322, the N2300 Series is not compatible with SVSI Windowing Processors at this time
  • Network Video Recording: Not compatible with SVSI NVR at this time
Audio
  • Input Signal Types: Embedded audio on HDMI (DVI-D through adapter) or Analog Stereo (Balanced or Unbalanced)
  • Output Signal Types: Ethernet, Embedded audio on HDMI or DVI-D (through adapter)
  • HDMI Audio Formats: 8ch PCM
  • Analog Audio Format: Stereo 2-channel
  • Analog-To-Digital Conversion: 48 kHz
Keyboard and Mouse Keyboard & Mouse: Connect the Decoder to the keyboard and mouse, and an N2300 Series Encoder to the PC being controlled
Latency
  • Latency
      • 17-ms at 60 fps for 1920x1080 and lower resolutions
      • 34-ms at 30 fps for 4K30

NOTE: This is the combined encode plus decode latency. Total latency from source to screen will also include any network latency. Scaling adds one frame of latency (17ms at 60fps)

  • Switching: Up to 1.5s delay, not seamless
Bandwidth
  • Bandwidth: Approximately 160 Mb/s

Note: Minimum bandwidth is 50 Mb/s for resolutions <= 1080p60

Communications
  • Ethernet - PO
    • 10/100/1000 Mbps, auto-negotiating, auto-sensing, full/half duplex, DHCP, Auto IP, and Static IP
  • Ethernet - P1
    • 1 Gbps port which accepts compatible fiber transceivers or direct attach cables, DHCP, Auto IP, and static IP
  • HDMI: HDCP, EDID management

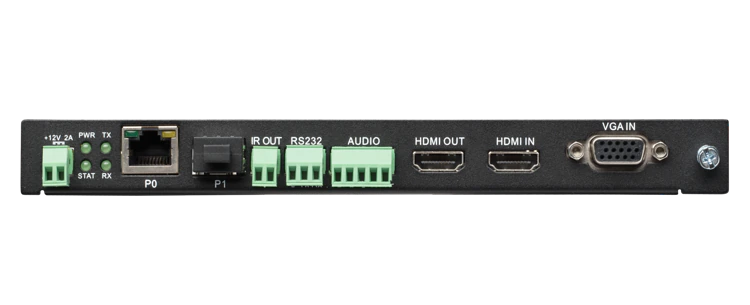

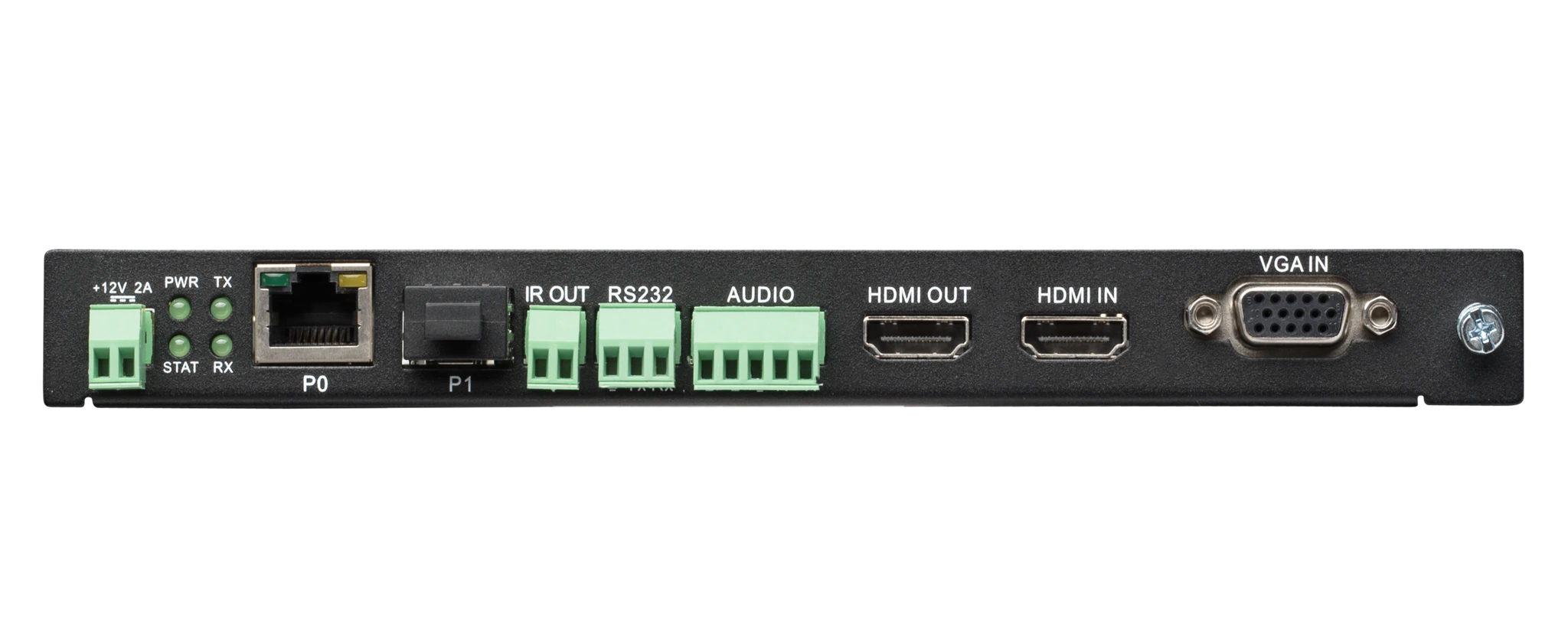

Ports
  • +12V 2A: One 12 Volt DC power input
  • PO
    • 8-wire RJ45
    • 10/100/1000 Mbps 10/100/1000Base-T auto-sensing gigabit Ethernet switch port
    • Provides network connection, network AV video, and power to the Encoders and Decoders PoE power
  • P1
    • 1-Gbps SFP+ port (SFP+ fiber transceiver or direct attach cable not included)
    • Provides network connection and networked AV video
  • IR IN (front panel): 3-pin terminal Phoenix connector. Provides Infrared (IR) input only and passes signal back to connected decoder (33-60 kHz; typically 39 kHz) IR receiver is necessary (not included)
  • IR OUT
    • 2-pin terminal Phoenix connector
    • Provides Infrared (IR) output only (33-60 kHz; typically 39 kHz). Emitter is necessary (not included)
  • RS232
    • 3-pin terminal Phoenix connector which provides a serial control interface. Full duplex communication.
    • Available terminal speed settings: 1200-115200 baud rate
  • AUDIO
    • 5-pin terminal Phoenix connector which provides userselectable balanced/unbalanced input
    • Dedicated audio input
  • HDMI OUT: HDMI video output (passive pass-through from HDMI IN)
  • HDMI IN: HDMI video input
  • VGA IN: DB15 analog input
Controls and Indicators - Front Panel
  • RESET Button
    • Recessed pushbutton
    • Press to initiate a 'warm restart' causing the processor to reset, but not lose power. A reset does NOT affect the current settings
  • ID Button
    • Recessed pushbutton
    • Press to send a notification out on the network to identify the unit (the notification causes a pop-up dialog in N-Able and N-Command)
  • POWER LED
    • On solid (green) when operating power is supplied (via PoE or local power supply)
    • This activity is also shown by the PWR LED on the rear panel
  • STATUS LED
    • On flashing (green) when there is software activity
    • This activity is also shown by the STAT LED on the rear panel
Controls and Indicators - Rear Panel
  • PWR LED: Same as POWER LED described above
  • HDMI LED: On (green) when there is a connection to a valid HDMI source but will not light for VGA source
  • STAT LED: Same as STATUS LED described above
  • STRM LED: On (green) when the unit is streaming video
  • FAN: None
Environmental
  • Temperature: 32° to 104°F (0° to 40°C)
  • Humidity: 10% to 90% RH (non-condensing)
  • Heat Dissipation: Up to ~44 BTU/hr
General
  • Mounting Options
    • Regulatory Compliance: FCC, CE, and NTRL
    • Recommended Accessories NMX-ACC-N9206 (FGN9206), 2RU Rack Mount Cage with Power for Six SVSI N-Series Card Units
FG Numbers FGN2312-CD

Recommended Accessories

  • NMX-ACC-N9206

    2RU Rack Mount Cage with Power for Six SVSI N-Series Card Units
