HPX-1200-NA

12 HydraPort Unit Enclosure with US Power Outlet

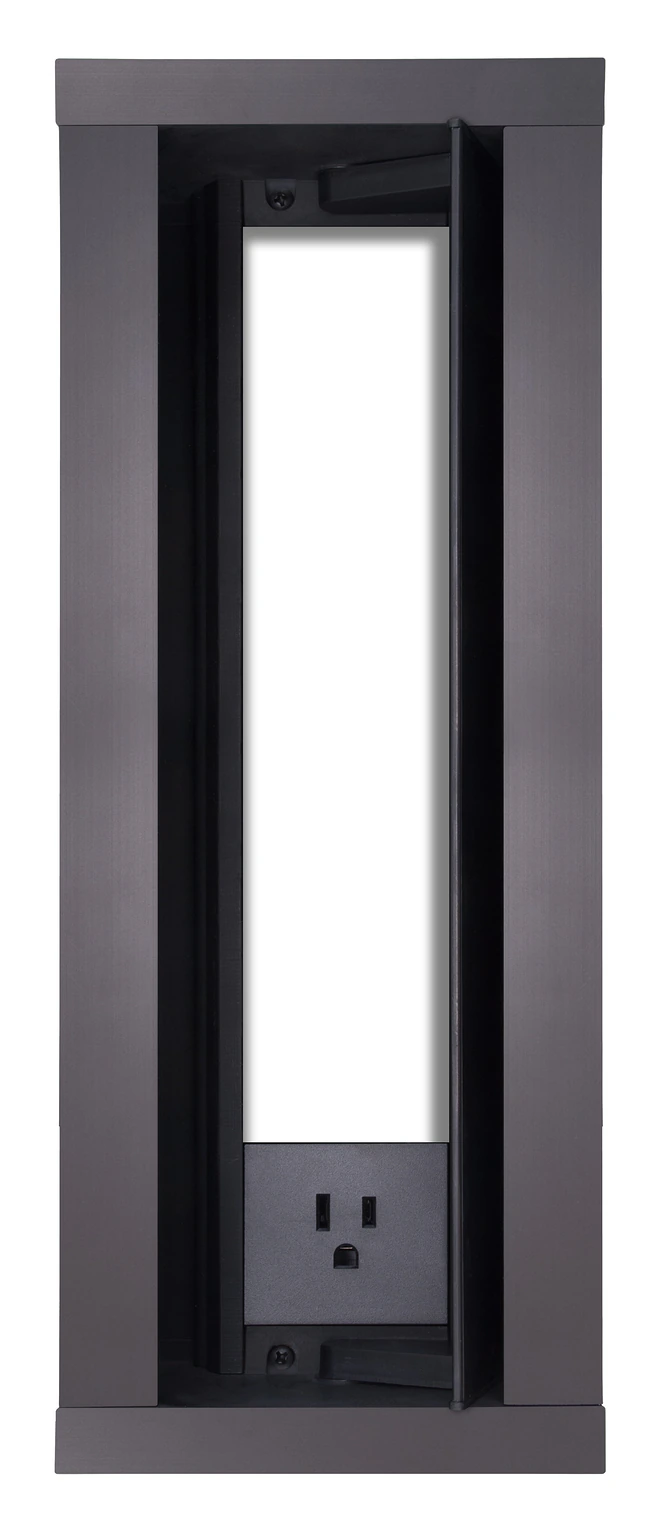

HPX-1200-BL-NA_StraightOn-Open
รูปภาพขนาดใหญ่

The AMX HPX-1200 12 HydraPort® Unit Enclosure with US Power Outlet is a modular A/V table box for connecting mobile devices in a conference room or classroom. This sleek, flush-mount table box is typically installed in a conference room or classroom table, featuring a uniquely designed lid that conveniently opens in both directions to provide a clean, unobtrusive look.

No matter how you bring in your content – whether via USB-C, HDMI, Ethernet, or other popular formats - you have access to the cable or connection you need, whenever you need it. The HydraPort Architectural Connectivity System uses simple, interchangeable modules to put together the exact future-proof configuration you need today and tomorrow.

The HPX-1200-NA includes one (1) US Power Outlet that brings power right up to the table, where it’s needed the most.

รายละเอียดเพิ่มเติม

  • With ten (10) available module spaces, the HPX-1200-NA is perfect for rooms that need the capability to connect many different device types to the A/V system, and to provide convenient AC power to devices
  • Included US power outlet puts power within easy reach, so devices can be powered & charged throughout the meeting
  • The HPX-1200-NA is designed for any conference room, classroom, or boardroom that requires the capability to connect devices to the A/V system, with an unobtrusive style
  • With the capability to accommodate button modules, the HPX-1200-NA is ideal for rooms that require an additional control interface at the table or lectern, or for smaller spaces where a keypad is the primary control interface

configuration_tool

การดาวน์โหลด

CAD Drawings
  ขนาด อัปโหลดแล้ว
289 กิโลไบต์ เม.ย. 2025
79 กิโลไบต์ เม.ย. 2025
295 กิโลไบต์ ต.ค. 2018
963 กิโลไบต์ ม.ค. 2024
1.01 เมกะไบต์ เม.ย. 2025
BIM Objects
  ขนาด อัปโหลดแล้ว
file type icon HPX-600 | HPX-900 | HPX-1200 - BIM Objects
อัปเดต: ส.ค. 2019
ส.ค. 2019
Quick Start Guides
  ขนาด อัปโหลดแล้ว
file type icon Quick Start Guide - HPX-600/900/1200-NA
อัปเดต: ม.ค. 2024
573 กิโลไบต์ ม.ค. 2024
Data Sheets
  ขนาด อัปโหลดแล้ว
file type icon Data Sheet - HPX-1200-NA
อัปเดต: ก.พ. 2025
360 กิโลไบต์ ก.พ. 2025
Safety Sheets
  เวอร์ชัน ขนาด อัปโหลดแล้ว
file type icon Safety Instructions - HydraPort
เวอร์ชัน E, อัปเดต: ม.ค. 2024
1.25 เมกะไบต์ ม.ค. 2024
Configuration Tools
  ขนาด อัปโหลดแล้ว
file type icon HydraPort Connection Preview Configuration Tool
อัปเดต: มี.ค. 2021
มี.ค. 2021

หากลิงก์ใดด้านบนแสดงตัวอักษรแปลกๆ ในเบราว์เซอร์ของคุณ โปรดคลิกขวาที่ไฟล์เพื่อบันทึกไว้ในคอมพิวเตอร์ของคุณ

คุณสมบัติ

  • Future-Proof Modular Design – Features an assembly with the flexibility to change the modules to meet current and future needs
  • Elegant and Unobtrusive – Flush-mount design installs cleanly into a lectern or table and the lid conveniently opens in both directions providing access from either side
  • No Electrician Required – The included US power outlet can be connected directly to a wall or floor outlet, eliminating the need for an electrician
  • Control The Room – Add a keypad or button module to control A/V devices, lighting, & shades, as well as to initiate pre-programmed events like source selection or display power
  • Brushed Aluminum Construction – These stylish, low-profile enclosures have the same contemporary brushed aluminum construction as high-end office furniture manufacturers, at the same price as most competitive painted metal models

ข้อมูลจำเพาะ

Number of Modules Supported Twelve (12) total HydraPort Units
Ten (10) available HydraPort Units
See Data Sheet for details.
Mounting Surface Footprint 14-332" x 5-7/16" (358mm x 138mm)
Table Cutout Dimensions 13.54" x 4.84" (344mm x 123mm)
FG Numbers AMX-FG560-03B-NA (Black Anodized)
AMX-FG560-03S-NA (Brushed Aluminum)
