ACV-5100
ยกเลิกการผลิต

Acendo Vibe Conferencing Sound Bar with Camera

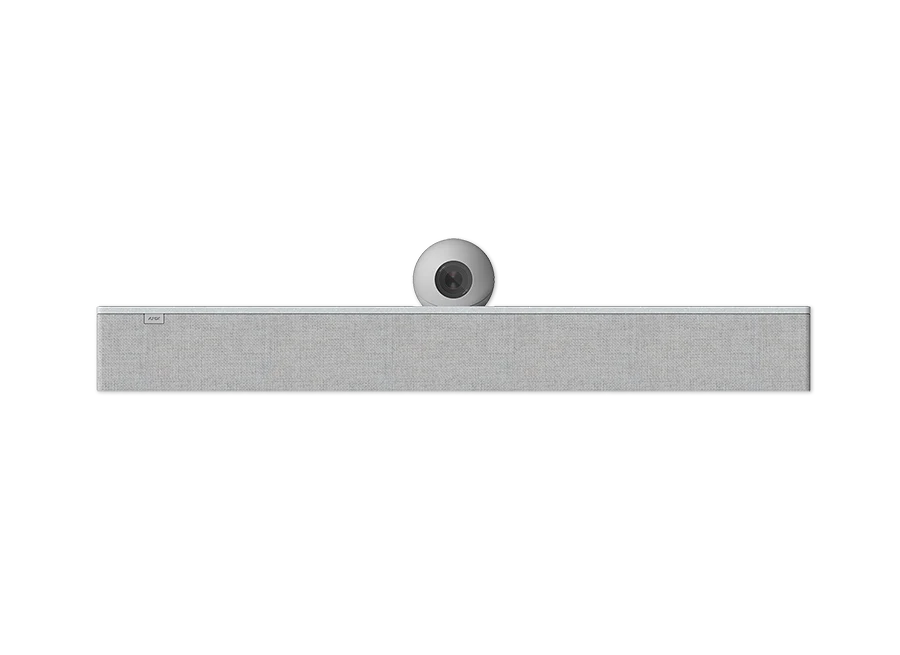

ACV-5100GR_Front
รูปภาพขนาดใหญ่

The Acendo Vibe 5100 is an expertly designed web conferencing sound bar with integrated camera. Featuring Sound by JBL, integrated connectivity that a professional environment requires, and a look that holds up to modern workspace architecture, Acendo Vibe supports the high standards of today's workforce.

With Acendo Vibe's wide angle camera, integrated JBL speakers, far-field microphones, and DSP algorithms users can be sure everyone in the room is seen and heard clearly. Additionally, because the camera and microphones are integrated into the same device the potential for echoing during the call is eliminated.

HDMI and USB connectivity support BYOD environments as well as integration with Acendo Core for an even more intuitive room collaboration solution. CEC screen control turns the display on and off in response to triggers. Dedicated audio inputs and outputs that can also be used to integrate Acendo Vibe with other room technology, such as hearing-enhanced systems.

รายละเอียดเพิ่มเติม

With the trend toward open working environments, small meeting spaces are becoming more and more important. It is critical that these spaces be well suited for quick, extremely intuitive collaboration, so as not to interrupt the daily work flow. Bringing your own Device into meeting spaces that lack technology means a group huddling around a laptop and trying to hear, and speak, using the laptop audio and video (which is really meant for an individual rather than a group).

With a very reasonable entry price, and low total cost of ownership, Acendo Vibe is ideal for any collaboration space, and can even be incorporated into small spaces that didn't have technology planned.

การดาวน์โหลด

CAD Drawings
  ขนาด อัปโหลดแล้ว
94.7 กิโลไบต์ ก.ค. 2018
93.1 กิโลไบต์ เม.ย. 2018
899 กิโลไบต์ เม.ย. 2018
1.14 เมกะไบต์ เม.ย. 2018
174 กิโลไบต์ เม.ย. 2018
219 กิโลไบต์ เม.ย. 2018
BIM Objects
  ขนาด อัปโหลดแล้ว
file type icon ACV-5100 - BIM Object
อัปเดต: ส.ค. 2019
ส.ค. 2019
Software
  เวอร์ชัน ขนาด อัปโหลดแล้ว
Windows download icon Acendo Vibe Configuration Tool
เวอร์ชัน 1.1.6, เผยแพร่: ก.ย. 2018
1.1.6   40.2 เมกะไบต์ ก.ย. 2018
MacOS download icon Acendo Vibe Configuration Tool for Mac
เวอร์ชัน 1.1.6, เผยแพร่: ต.ค. 2021
1.1.6   17.4 เมกะไบต์ ต.ค. 2021
Firmware
  เวอร์ชัน ขนาด อัปโหลดแล้ว
download icon for Acendo Vibe Firmware Acendo Vibe Firmware
เวอร์ชัน 3.1.2, เผยแพร่: ธ.ค. 2024
3.1.2   1.23 เมกะไบต์ ธ.ค. 2024
Certifications
  ขนาด อัปโหลดแล้ว
file type icon Acendo ACV-XXXX - EU-Declaration of Conformity (DoC)
อัปเดต: มี.ค. 2020
56.9 กิโลไบต์ มี.ค. 2020
Safety Sheets
  ขนาด อัปโหลดแล้ว
file type icon Safety Notes - Acendo Vibe
อัปเดต: ต.ค. 2020
1.82 เมกะไบต์ ต.ค. 2020
Warranties
  ขนาด อัปโหลดแล้ว
file type icon Korean Warranty Card - Acendo Vibe
อัปเดต: ต.ค. 2020
777 กิโลไบต์ ต.ค. 2020

หากลิงก์ใดด้านบนแสดงตัวอักษรแปลกๆ ในเบราว์เซอร์ของคุณ โปรดคลิกขวาที่ไฟล์เพื่อบันทึกไว้ในคอมพิวเตอร์ของคุณ

คุณสมบัติ

  • Sound by JBL – Hear everything said in the meeting with speakers, microphones, and DSP algorithms from JBL.
  • Wide-angle camera (110° FoV) – The wide-angle camera means that everyone in the room can be seen, including those people sitting close to the display. This makes Acendo Vibe perfect for small rooms where the table is near the display.
  • Elegant Design – Modern office environments are designed to attract and retain the most talented employees through the use of elegant interior design and the use of tactile materials, such as fabrics. Acendo Vibe is built using high-quality materials and is available in two colors designed to complement interior design.
  • CEC Display Control – Acendo Vibe will turn the display on and off in response to triggers, making it even easier for users to get started with their meeting. For example, by plugging a laptop into Acendo Vibe, the display will turn on and show the laptop content. Because this is all done with CEC, there are no additional cables or programming required therefore simplifying installation.
  • USB Connectivity – Use Acendo Vibe in BYOD applications with a user's laptop or mobile phone, or use it with Acendo Core to create a complete, highly optimized meeting solution.
  • Integrated Mounting Bracket – The integrated wall mount facilitates installation by a single person. This mount allows customers to connect and route all the cabling with Acendo Vibe on the wall and then simply rotate Acendo Vibe into position.

ข้อมูลจำเพาะ

FG Numbers

FG numbers are regionalized to include the appropriate power cord based on region

Black, Acendo Vibe 5100 Series

  • FG4151-00BL-UA, ACV-5100BL-UA: UA Version - Type B and I power cords for USA, Canada, Japan, Philippines, Thailand, Australia, and New Zealand
  • FG4151-00BL-EK, ACV-5100BL-EK: EK Version - Type E/F and type G power cords for EU countries, Indonesia, Singapore, Vietnam, Malaysia, Thailand, Cambodia, and Mongolia

Gray, Acendo Vibe 5100 Series

  • FG4151-00GR-UA, ACV-5100GR-UA: UA Version - Type B and I power cords for USA, Canada, Japan, Philippines, Thailand, Australia, and New Zealand
  • FG4151-00GR-EK, ACV-5100GR-EK: EK Version - Type E/F and type G power cords for EU countries, Indonesia, Singapore, Vietnam, Malaysia, Thailand, Cambodia, and Mongolia
