The AMX SVSI NMX-ENC-N3312D-C Encoder Card delivers the highest quality 4K60 H.26x and Dante AV-H video content at the lowest bandwidth. This extends the reach of SVSI 4K60 networked AV solutions to the WAN for streaming, video to desktop, digital signage, set-top boxes, or mobile device applications.

In addition to transmitting HDCP content to N3300 decoders, it also features recording of video to a USB 3.0 external drive, video preview images viewable from the built-in web interface or from a touch panel, and enhanced support for high-security networks. N3300 Encoders simultaneously output up to 4K60 H.26x or Dante AV-H on the primary stream and a high-compatibility H.26x secondary video stream to provide design flexibility and the most compatible options for remote viewing or recording.

The NMX-ENC-N3312D-C supports Dante AV-H, a standard for AVoIP devices created to allow for the interoperability of multiple devices on the network. With Dante AV-H, the NMX-ENC-N3312D-C is compatible with Dante Studio, a suite of software tools for PC, that allows you to monitor or bring video directly into UC, recording, production, or streaming applications without the need for additional hardware. Dante Controller handles all device routing, naming and configuration, while Dante Domain Manager provides IT-level management over device organization, user access, multiple subnet coordination and complete audit logs for every endpoint and user.

Additionally, the H.264 stream generated by the NMX-ENC-N3312D is compatible with N3000 series decoders, N2600S decoders, and the NMX-WP-N3510 Windowing Processor.

Moving 4K60 video to or from the Cloud just became a lot easier with the AMX SVIS NMX-ENC-N3312D-C Encoder Card.

Dante AV-H

N3300 models feature Video and Audio interoperability with products based on Dante AV-H technology. H.264/AVC and H.265/HEVC video compression standards are both supported.

High-Quality 4K60 H.26x

High-quality H.26x 4K60 4:4:4 streaming delivers excellent video quality for transmitting both live video and detailed content within classrooms, meeting spaces, courtrooms, bars, and other applications.

High-Compatibility h.26X secondary stream

N3300 Encoders simultaneously output a secondary, standard H.26x video stream to provide design flexibility and the most compatible options for remote viewing or recording.

USB 3.0 Recording to an External Drive

N3300 models feature full-bandwidth USB 3.0 video recording of non-HDCP content on an external USB drive. Additional features include the ability to schedule the transfer of recordings from a connected USB drive to a network storage system.

Enterprise Networking

Multicast support, VLAN tagging, QoS, and the latest N3300 integrated security features ease enterprise IT teams’ ability to manage network traffic effectively, which can allow SVSI AVoIP solutions to share the enterprise network with other systems.

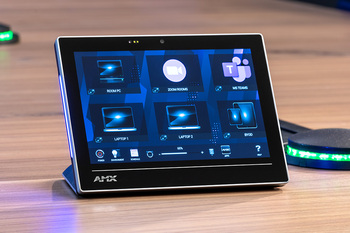

Open Direct-Control API

An open API makes it possible for any control system or application, such as Zoom Rooms, to control the device. Whether N3300 models are being included in the project as part of a larger HARMAN Professional installation, or it’s the only AMX product in an installation with many other control and audio products from various manufacturers, the open API will allow it to be integrated seamlessly.
