RMBK-701
ยกเลิกการผลิต

แผงสัมผัสกำหนดตารางเวลา AMX RoomBook ขนาด 7 นิ้ว

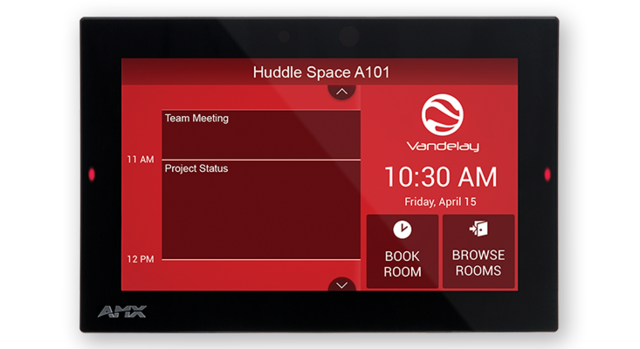

RMBK-701_Front
รูปภาพขนาดใหญ่

ผลิตภัณฑ์ทดแทน

  • ACB-2107

    ACB-2107

    The existing Thai translation needs improvement. Here's the corrected version: แผงสัมผัสกำหนดเวลา Acendo Book ขนาด 7 นิ้ว

แผงสัมผัส AMX RoomBook 7" เป็นแผงกำหนดตารางเวลาแบบสแตนด์โลนที่รวมเข้าโดยตรงกับซอฟต์แวร์กำหนดตารางเวลาห้องยอดนิยม เช่น Microsoft Exchange, Office 365 และ Google Calendar โดยไม่ต้องมีข้อกำหนดฮาร์ดแวร์ระบบเพิ่มเติม พื้นหลังอินเทอร์เฟซผู้ใช้และแถบความพร้อมของห้องที่อยู่ในตัวจะเปลี่ยนระหว่างสีแดงและสีเขียวเพื่อแสดงความพร้อมของห้อง ซึ่งช่วยให้ผู้ใช้ค้นหาและจองห้องที่ว่างได้ง่ายขึ้นโดยตรงจากแผง และหากห้องนั้นมีการจองแล้ว ผู้ใช้สามารถค้นหาห้องที่ว่างที่ใกล้เคียงหรือเวลาที่ว่างต่อไปได้อย่างสะดวก

ด้วยการใช้ประโยชน์จากการออกแบบและประสิทธิภาพด้านต้นทุนของแผงสัมผัส Modero S Series ที่ได้รับรางวัล RMBK-701 มาพร้อมเทคโนโลยี SmoothTouch™ หน้าจอสีเต็มรูปแบบความละเอียดสูง มุมมองเว้แนวกว้าง และไฟ LED แถบความพร้อม พร้อมการออกแบบโปรไฟล์ต่ำสำหรับสัญญาณลักษณ์อันประณีต RMBK-701 สามารถติดตั้งบนพื้นผิวเรียบใดก็ได้ รวมถึงแก้วหรือหิน ภายในหรือภายนอกห้องประชุมหรือห้องเรียน

RMBK-701 ติดตั้งได้ง่ายโดยใช้วิซาร์ดการกำหนดค่าบนแผงเพียงครั้งเดียว เพื่อให้แผงพร้อมใช้งานในเวลาเพียงไม่กี่นาทีและต้องการการฝึกอบรมน้อยที่สุด

รายละเอียดเพิ่มเติม

Ideal for small/medium businesses wishing to optimize room utilization by implementing facility-wide room scheduling on a budget

การดาวน์โหลด

เอกสาร
  ขนาด อัปโหลดแล้ว
file type icon Data Sheet
อัปเดต: เม.ย. 2026
284 กิโลไบต์ เม.ย. 2026
BIM Objects
  ขนาด อัปโหลดแล้ว
file type icon RMBK-701 - BIM Object
อัปเดต: ส.ค. 2019
ส.ค. 2019
Firmware
  เวอร์ชัน ขนาด อัปโหลดแล้ว
download icon for AMX RoomBook and AMX Acendo Book Scheduling Touch Panels Firmware AMX RoomBook and AMX Acendo Book Scheduling Touch Panels Firmware
เวอร์ชัน 1.1.22, เผยแพร่: ส.ค. 2018
1.1.22   159 เมกะไบต์ ส.ค. 2018
download icon for Acendo Book (RMBK and ACB Panels) CloudworX Firmware Acendo Book (RMBK and ACB Panels) CloudworX Firmware
เวอร์ชัน 1.3.49, เผยแพร่: ต.ค. 2019
1.3.49   171 เมกะไบต์ ต.ค. 2019

หากลิงก์ใดด้านบนแสดงตัวอักษรแปลกๆ ในเบราว์เซอร์ของคุณ โปรดคลิกขวาที่ไฟล์เพื่อบันทึกไว้ในคอมพิวเตอร์ของคุณ

คุณสมบัติ

  • Standalone Scheduling Panel that's Quick and Easy to Install – Reduces cost by streamlining installation, simplifying configuration, and eliminating the need for a controller and monitoring software
  • Directly Integrates with Microsoft Exchange, Office 365 and Google Calendar – Synchronizes with the most popular scheduling platforms without additional software or configuration complications
  • Based on Modero S Hardware – Provides all the benefits of our most popular Modero S Scheduling Panels including award-winning industrial design, SmoothTouch™ Technology, and brilliant full-color display
  • On-Panel Room Booking – Quickly book available rooms directly from the panel
  • Diverse Mounting Options – Mount the panel virtually anywhere, including glass
  • Available Room Locator – Panel will suggest other currently available rooms at the push of a button
  • Availability Indicators on the Front and Sides of the Panel – 180 degree Visibility allows users to easily determine whether the room is currently available

ข้อมูลจำเพาะ

Display Size (WH) Landscape: 7.3" x 4.8" (186 mm x 122 mm), 8.8" (222 mm) diagonal
Viewable Area (WH) Landscape: 6.05" x 3.54" (154 mm x 90 mm), 7.0" (178 mm) diagonal
Resolution 1024x600
Viewing Angle Vertical: ± 89°, Horizontal: ± 89°
Aspect Ratio 16:9
Touch Overlay Resistive
Front Panel Components Sleep Button, Programmable Red/Green LEDs. See Data Sheet for details.
Power Consumption Full-On: 11 W maximum
FG Numbers FG2265-37
