The DXLink Multi-Format Fiber Transmitter sends analog and digital audio and video signals including HDMI with HDCP up to 10 Km over single mode fiber. Use the DXLink Fiber Transmitter in conjunction with the Enova DGX 8, 16, 32 or 64 to transmit clear, uncompressed video beyond 6 miles at the fastest data rate in the industry – 10 Gbps. The DXF-TX-SMD also sends and receives control commands from the Enova DGX Digital Media Switcher with integrated NetLinx providing a total control and distribution solution to all end points.
รูปภาพขนาดใหญ่
รายละเอียดเพิ่มเติม
The ideal entry-point for any source designed into an Enova DGX integrated system that requires the distance capabilities and inherent security of fiber – or both; including campus-wide distribution of sources that are shared between classrooms, secure military applications, casinos, arenas and museums. Directly connect video sources such as PCs using the HD-15 multi-format input connection or HDMI input and easily include audio on the same fiber cable by using the stereo or digital audio connection.
การดาวน์โหลด
เอกสาร
| ขนาด | |
Data Sheet
อัปเดต: เม.ย. 2026
|
384 กิโลไบต์ |
Manuals
| ขนาด | |
|
|
46.4 กิโลไบต์ |
|
|
3.9 เมกะไบต์ |
CAD Drawings
| ขนาด | |
|
|
1.3 เมกะไบต์ |
|
|
231 กิโลไบต์ |
BIM Objects
| ขนาด | |
|
|
Firmware
| ขนาด | |
|
|
488 กิโลไบต์ |
|
|
937 กิโลไบต์ |
Quick Start Guides
| ขนาด | |
|
|
665 กิโลไบต์ |
Certifications
| ขนาด | |
|
|
445 กิโลไบต์ |
|
|
261 กิโลไบต์ |
|
|
152 กิโลไบต์ |
Whitepapers
| ขนาด | |
|
|
484 กิโลไบต์ |
หากลิงก์ใดด้านบนแสดงตัวอักษรแปลกๆ ในเบราว์เซอร์ของคุณ โปรดคลิกขวาที่ไฟล์เพื่อบันทึกไว้ในคอมพิวเตอร์ของคุณ
คุณสมบัติ
- HDCP Compliance Over Fiber – Transmit HDCP compliant video including HDMI up to 10 Km (over 6 miles)
- Industry Leading Data Rate – DXLink is leading the way with an optical transport rate of 10 Gbps
- Secure and Isolated – Fiber inherently provides extra security and electrical isolation making it the transport method of choice for many mission-critical secure environments
- InstaGate Pro® Technology – Easily integrate HDCP into system designs and enjoy hassle free matrix switching to all compliant displays, no tools, no delays and no key constraints – it just works
- Native NetLinx® Control Everywhere – Control connected source devices using the built-in IR and RS-232 ports
- Field Serviceable Fiber Modules – Easily remove and replace SFP modules in the field
- Multi-Format Analog Port and HDMI Port – Supports legacy analog signals – RGBHV, Component, S-Video, and Composite, and digital HDMI/HDCP, DisplayPort and DVI signals
- Ethernet Connectivity – Provides ICSLan Ethernet support at the Transmitter – add Ethernet connectivity to a Touch Panel, plug in a WAP or stream IP audio/video to a Ethernet enabled source device
ข้อมูลจำเพาะ
| Dimensions (HWD) | 1" x 8 3/4" x 5 1/5" (2.54 cm x 22.12 cm x 13.08 cm) |
| DxLink Fiber | Fiber Connector: LC Duplex conforming to ANSI TIA/EIA 604-10 (FOCIS 10A); Fiber Cable Type: 9/125µm; Fiber Cable Length: 10 km (6.21 miles) |
| USB (HID) | (1) USB Mini A/B Connector ("HOST") |
| Front Connectors | Advanced Configuration Interface: (1) USB Mini-B Connector ("PROGRAM"); Local Loopback Output Connector: (1) HDMI Type A Female, non-scaling |

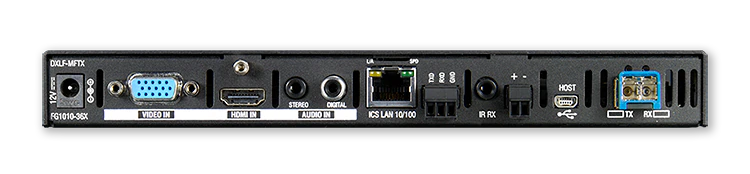

| Back Connectors | Video Input: (1) HD-15 (RGBHV, RGBs, RGsB, Y/Pb/Pr, Y/c / S-Video, composite (breakout cable is required for RGB formats); HDMI Input: (1) HDMI Type A Female; Analog Stereo Input: (1) 3.5mm Mini-Stereo Jack; S/PDIF Digital Audio Input: (1) RCA Jack |
| HDMI | Compatible Formats: HDMI, HDCP , DVI |
| HDMI Support | Progressive Resolution Support: 480p up to 1920x1200 @ 60 Hz; Interlaced Resolution Support: 480i, 576i, 1080i; 3D Format Support: Yes |
| HDMI Audio | Audio Format Support: Dolby TrueHD, Dolby Digital, DTS-HD Master Audio, DTS, 2 CH through 8 CH L-PCM, Dolby Digital and DTS support up to 48kHz, 5.1 channels; Audio Resolution: 16 bit to 24 bit |
| HDCP & DDC/EDID | HDCP Support: Supports AMX HDCP InstaGate Pro Technology; When used with an Enova DGX Digital Media Switcher the key support is up to 16 sinks per output, independent of source device; DDC/EDID Support: Yes |
| Analog Video Compatible Formats | RGBHV, RGBs, RGsB, YPbPr (HDTV), Y/c (S-Video), C (Composite) |
| Analog Video Resolution Support | Progressive Resolution Support: 480p up to 1920x1200 @ 60 Hz; Interlaced Resolution Support: 480i, 576i, 1080i |
| Audio (Analog & Digital S/PDIF) | S/PDIF Audio Format Support: Dolby Digital, DTS, 2 CH L-PCM, Dolby Digital and DTS support up to 48kHz, 5.1 channels; S/PDIF Resolution: 16 to 24 bit |
| FG Numbers | FG1010-360 |
