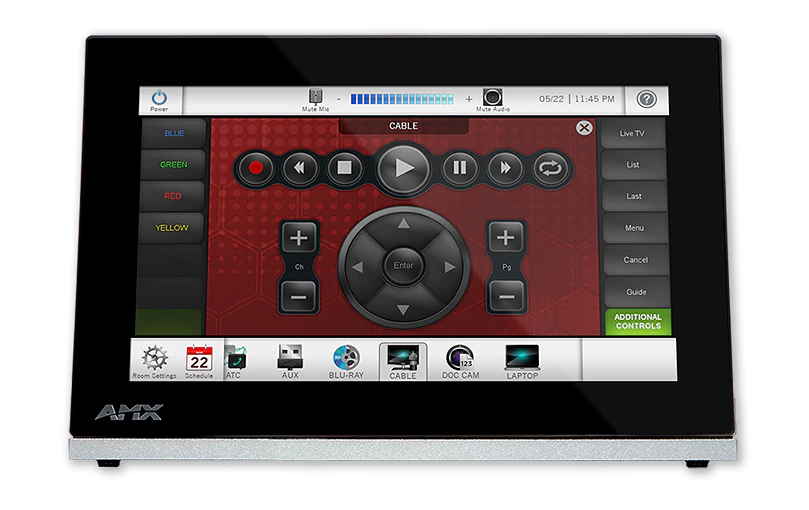

The MST-701 / 7" Modero S Series Tabletop Touch Panel is a control surface for managing a wide variety of digital and analog devices in conference rooms, classrooms and other types of spaces. The MST-701 has a sleek design that remains affordable due to its ruggedized plastic housing. Key features include a brilliant 24-color depth, PoE connectivity, video streaming, and VoIP support – all at an economical price point.
รูปภาพขนาดใหญ่
รายละเอียดเพิ่มเติม
- The MST-701 is ideal for small to mid-size conference rooms on a tight budget, as well as smaller rooms or huddle spaces that require a more flexible and powerful control interface than a keypad or ControlPad. It can also serve as a second control panel in a large conference room or auditorium.
- Combined with the secure table mount kits and Kensington mounts, the MST-701 is perfect for classrooms and other learning spaces where the panel can be securely fixed to a table or other flat surface.
การดาวน์โหลด
CAD Drawings
| ขนาด | |
| 145 กิโลไบต์ | |
| 757 กิโลไบต์ |
Software
| ขนาด | |
|
|
35.7 เมกะไบต์ |
Firmware
| ขนาด | |
|
|
47.7 เมกะไบต์ |
Certifications
| ขนาด | |
|
|
191 กิโลไบต์ |
|
|
255 กิโลไบต์ |
|
|
416 กิโลไบต์ |
Touch Panel Files
| ขนาด | |
|
|
11.7 เมกะไบต์ |
หากลิงก์ใดด้านบนแสดงตัวอักษรแปลกๆ ในเบราว์เซอร์ของคุณ โปรดคลิกขวาที่ไฟล์เพื่อบันทึกไว้ในคอมพิวเตอร์ของคุณ
คุณสมบัติ
- Powerful Graphics – Powered by the G4 graphics engine, the Modero S Series features streaming video and brilliant 24-bit color depth
- Elegant & Responsive User Interface – Exclusive SmoothTouch™ display supports single touch gesturing and delivers responsive performance
- Architectural Design Consistency – Install both Modero S and Modero X touch panels throughout a facility for consistent style on any budget
- Secure Table Mounting Option – Our beautifully styled secure mounting plate attaches to the Modero S tabletop touch panels and secures with under-table tamper resistant bolts making it virtually theft proof
- Optional Kensington Mount – If it's not possible or desirable to mount the touch panel to the table, the secure plate can also be used in conjunction with a Kensington Lock
ข้อมูลจำเพาะ
| Display Size (WH) | 7.3" x 4.8" (186 mm x 122 mm), 8.8" (222 mm) diagonal |
| Viewable Area (WH) | 6.05" x 3.54" (154 mm x 90 mm), 7.0" (178 mm) diagonal |
| Resolution | 1024x600 |
| Viewing Angle | Vertical: ± 89°, Horizontal: ± 89° |
| Aspect Ratio | 16:9 |
| Touch Overlay | Resistive |
| Graphics Engine | AMX G4 |
| Front Panel Components | Sleep Button |
| Power Consumption | Full-On: 13 W |
| Temperature Range | Operating: 32° F to 104° F (0° C to 40° C) |
| FG Numbers | FG2265-06 |
การสนับสนุนที่ปรึกษาNOTE: The most current and complete specifications for this product are found in the data sheet. Specifications are subject to change.
