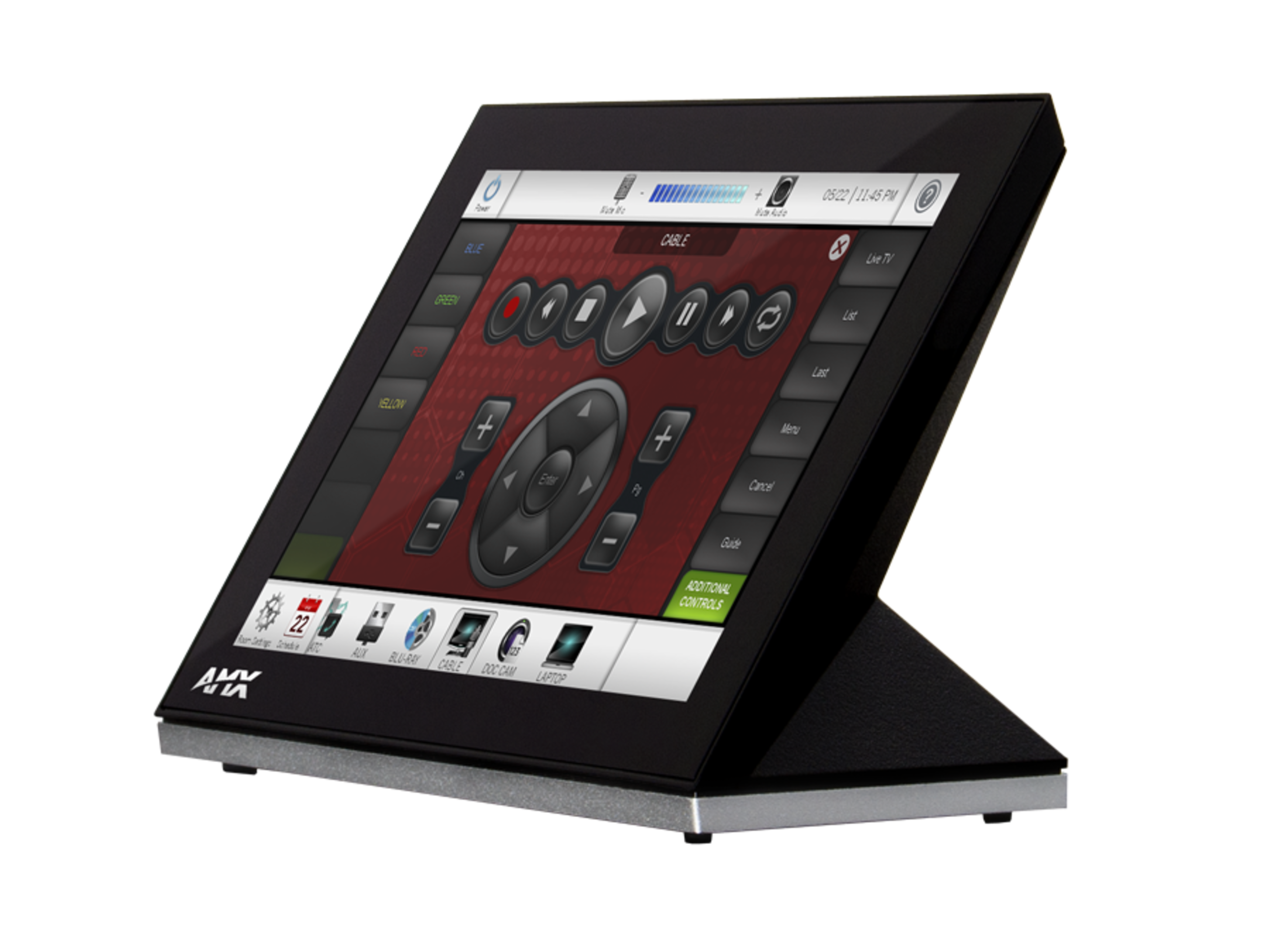

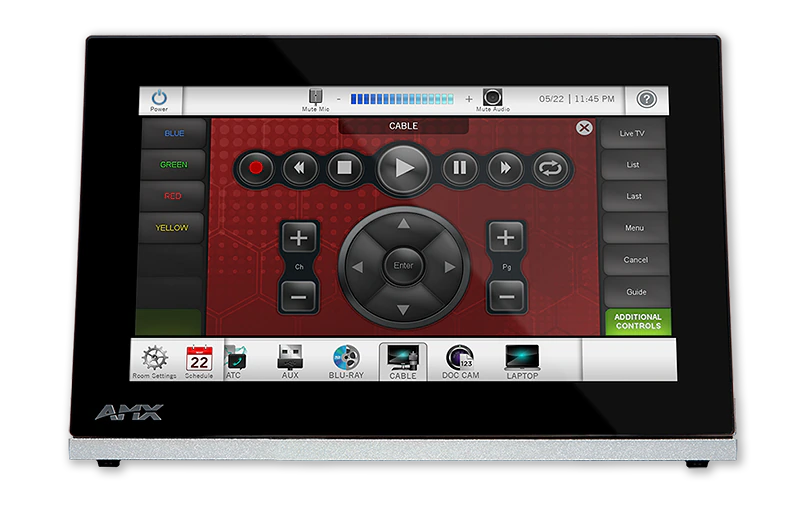

MST-701

7" Modero S® Series G4 Tabletop Touch Panel

Larger Images

This product is discontinued with a projected last order date of March 31, 2019.
The suggested alternative is MT-702.

The MST-701 / 7" Modero S Series Tabletop Touch Panel is a control surface for managing a wide variety of digital and analog devices in conference rooms, classrooms and other types of spaces. The MST-701 has a sleek design that remains affordable due to its ruggedized plastic housing. Key features include a brilliant 24-color depth, PoE connectivity, video streaming, and VoIP support – all at an economical price point.

Common Applications

  • The MST-701 is ideal for small to mid-size conference rooms on a tight budget, as well as smaller rooms or huddle spaces that require a more flexible and powerful control interface than a keypad or ControlPad. It can also serve as a second control panel in a large conference room or auditorium.
  • Combined with the secure table mount kits and Kensington mounts, the MST-701 is perfect for classrooms and other learning spaces where the panel can be securely fixed to a table or other flat surface.

Downloads

  Version Language Size Uploaded
Data Sheet
updated: Jul 06, 2018
    378 KB Jul 06, 2018
Comparison Chart
updated: Jul 09, 2018
    173 KB Jul 09, 2018
Manuals
Installation Hardware Reference Manual - Modero S Series Touch Panels
updated: Mar 30, 2018
    2.04 MB Mar 30, 2018
CAD Drawings
Pictorial Drawing - MST-701, 7" Modero S Series Tabletop Touch Panel (DXF)
updated: Apr 03, 2018
    757 KB Apr 03, 2018
Pictorial Drawing - MST-701, 7" Modero S Series Tabletop Touch Panel (PDF)
updated: Apr 03, 2018
    145 KB Apr 03, 2018
Software
G4 Support Files
version 3.3.62, updated: Jul 16, 2018
3.3.62    35.7 MB Jul 16, 2018
Modero S Series Touch Panels Firmware
version 2.108.40, updated: Mar 16, 2018
2.108.40    47.7 MB Mar 16, 2018
Programming Guides
Configuration and Programming Guide - Modero S/X Series G4 Touch Panels HydraPort Touch Connection Ports
updated: Mar 30, 2018
    2.16 MB Mar 30, 2018
Certifications
Modero S Series 4.3"/7"/10.1" Touch Panels UL Certificate of Compliance
updated: Apr 26, 2018
    416 KB Apr 26, 2018
Modero S Series 7"/10.1" Touch Panel CE Declaration of Conformity
updated: Apr 26, 2018
    255 KB Apr 26, 2018
Modero S Series 4.3"/7"/10.1" Touch Panels IECEE CB Test Certificate
updated: Apr 26, 2018
    191 KB Apr 26, 2018
Whitepapers
AMX AV/IT Administrator's Guide
updated: Apr 25, 2018
    2.61 MB Apr 25, 2018
Application Guides
AMX and the Perfect Meeting Room
updated: Apr 12, 2018
    426 KB Apr 12, 2018
Quick Start Guides
Quick Start Guide - MST-701 Modero S Series Tabletop Touch Panel
updated: Mar 30, 2018
    217 KB Mar 30, 2018
Touch Panel Files
MST-701 Modero S Series Landscape Demo Touch Panel File (1024x600)
updated: Jul 18, 2018
    11.7 MB Jul 18, 2018

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Features

  • Powerful Graphics – Powered by the G4 graphics engine, the Modero S Series features streaming video and brilliant 24-bit color depth
  • Elegant & Responsive User Interface – Exclusive SmoothTouch™ display supports single touch gesturing and delivers responsive performance
  • Architectural Design Consistency – Install both Modero S and Modero X touch panels throughout a facility for consistent style on any budget
  • Secure Table Mounting Option – Our beautifully styled secure mounting plate attaches to the Modero S tabletop touch panels and secures with under-table tamper resistant bolts making it virtually theft proof
  • Optional Kensington Mount – If it's not possible or desirable to mount the touch panel to the table, the secure plate can also be used in conjunction with a Kensington Lock

Specifications

Display Size (WH) 7.3" x 4.8" (186 mm x 122 mm), 8.8" (222 mm) diagonal
Viewable Area (WH) 6.05" x 3.54" (154 mm x 90 mm), 7.0" (178 mm) diagonal
Resolution 1024x600
Viewing Angle Vertical: ± 89°, Horizontal: ± 89°
Aspect Ratio 16:9
Touch Overlay Resistive
Graphics Engine AMX G4
Front Panel Components Sleep Button
Power Consumption Full-On: 13 W
Temperature Range Operating: 32° F to 104° F (0° C to 40° C)
FG Numbers FG2265-06

Recommended Accessories

  • MSA-STMK-07

    Secure Table Mount Kit for 7" Modero S® Series Tabletop Touch Panel
  • MXA-MPL

    Modero X® and Modero S Series Multi Preview Live
  • PS-POE-AF-TC

    PoE Injector, 802.3AF Compliant
  • NXA-ENET8-POE+

    Gigabit PoE Ethernet Switch
  • HPG-10

    3/4" Mini-Grommet
  • MXA-CLK

    Modero X® and Modero S Series Screen Cleaning Kit
  • MXA-USB-C

    USB Port Covers for the Modero X® and Modero S Series Touch Panels
