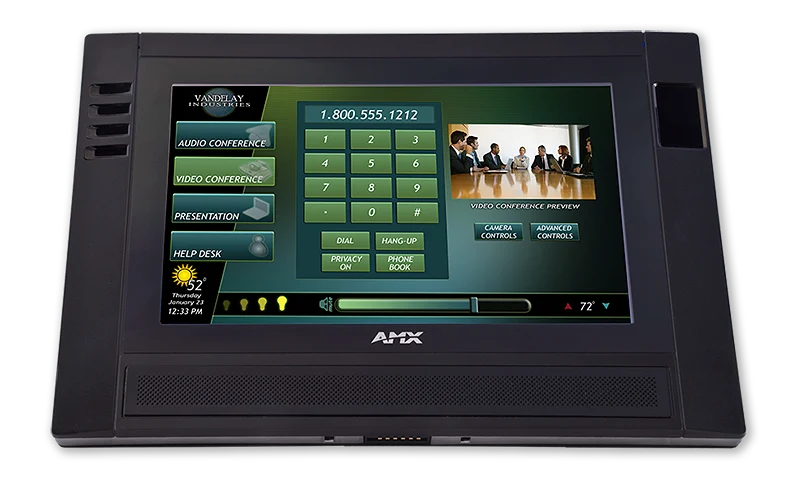

The MVP-9000i redefines touch panel control offering both wireless and wired functionality, new user interface capabilities like gestures and page transitions, a stunning 9" widescreen 24-bit color display, full digital duplex telephone or intercom interface and built-in 802.11a/b/g Wi-Fi card with antenna diversity. The MVP-9000i switches seamlessly to wireless mode when removed from the PoE docking station. Transfer touch panel pages, upgrade the firmware or display photo files using the USB or mini-SD card slot. Available in white or black, the MVP-9000i also features a capacitive navigation pad, 4 programmable buttons, over 1 GB of useable flash memory and supports 5 hours of continuous use and three days of standby time.
รูปภาพขนาดใหญ่
รายละเอียดเพิ่มเติม
Ideal for a wide variety of residential and commercial control and automation applications where flexibility of docked or mobile 802.11a/b/g functionality and extended battery life is desired. This is an ideal solution for extremely noisy wireless environments like MDUs and applications that require telephone/intercom functionality.
การดาวน์โหลด
เอกสาร
| ขนาด | |
Data Sheet
อัปเดต: เม.ย. 2026
|
376 กิโลไบต์ |
Manuals
| ขนาด | |
|
|
4.36 เมกะไบต์ |
| 147 กิโลไบต์ |
CAD Drawings
| ขนาด | |
| 1.2 เมกะไบต์ | |
| 3.81 เมกะไบต์ | |
| 215 กิโลไบต์ |
BIM Objects
| ขนาด | |
|
|
Software
| ขนาด | |
|
|
35.7 เมกะไบต์ |
|
|
1.02 เมกะไบต์ |
Firmware
| ขนาด | |
|
|
30.5 เมกะไบต์ |
A&E (Architectural & Engineering) Specifications
| ขนาด | |
|
|
52 กิโลไบต์ |
Certifications
| ขนาด | |
|
|
244 กิโลไบต์ |
|
|
257 กิโลไบต์ |
Whitepapers
| ขนาด | |
|
|
319 กิโลไบต์ |
Safety Sheets
| ขนาด | |
| 101 กิโลไบต์ |
Quick Start Guides
| ขนาด | |
|
|
42.1 เมกะไบต์ |
Device Modules
| ขนาด | |
|
|
16.9 เมกะไบต์ |
|
|
2.72 เมกะไบต์ |
หากลิงก์ใดด้านบนแสดงตัวอักษรแปลกๆ ในเบราว์เซอร์ของคุณ โปรดคลิกขวาที่ไฟล์เพื่อบันทึกไว้ในคอมพิวเตอร์ของคุณ
คุณสมบัติ
- Automatically switches between Ethernet connectivity when docked and Wi-Fi when out of dock
- New user interface capabilities including gesturing and 7 different page transitions
- International Fonts Support - The MVP-9000i provides support for right to left languages such as Arabic, a combination of language styles (right to left, and left to right) can also be used allowing inclusion of Arabic and English on the same screen
- 802.11a/b/g Wi-Fi with antenna diversity for improved wireless reliability and features enhanced wireless security protocol
- Extended battery life - five hours of continuous use and three days of standby time
- Micro-SD and USB stick support for easy file transfers and photo uploads
- VoIP intercom and SIP telephone (requires AMX Gateway) ready
- Cisco Compatible Extensions (CCX) Version 4 certified - CCX V4 certification means the MVP-9000i has been optimized to work with a Cisco wireless LAN infrastructure and that it meets the Wi-Fi alliance WPA/WPA2 specification addressing wireless network security, performance, reliability, diagnostic and network statistics gathering
ข้อมูลจำเพาะ
| Display Size (WH) | 7 5/8" x 11" x 1 1/16" (19.4 cm x 27.9 cm x 2.7 cm) |
| Viewable Area (WH) | 7 3/4" x 4 1/2" (19.7 cm x 11.8 cm), 9" (diagonal) |
| Resolution | 800 x 480 pixels (HV) @ 60 Hz refresh rate |
| Viewing Angle | Up/Down/Left/Right: 85/85/85/85 |
| Aspect Ratio | 16:9 |
| Temperature Range | Operating: 32° F to 104° F (0° C to 40° C) |
| FG Numbers | FG5967-01 (Black) |
การสนับสนุนที่ปรึกษาNOTE: The most current and complete specifications for this product are found in the data sheet. Specifications are subject to change.
